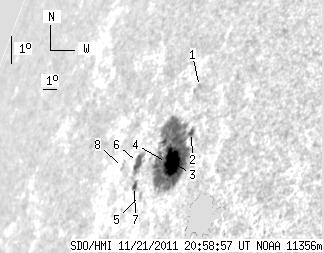

SDO HMI 2011-11-21 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.68 | 192.82 | 42.09 | 219.64 | 17.54 | 223.14 | -63.34 | 71.47 | 0.9005 | -294.3 | -131.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.14 | 0.00 | 2.40 | 19.85 | 223.68 | -62.80 | 68.85 | 0.8989 | -1.0 | 68.0 | |
| 2.57 | 169.60 | 2.82 | 191.59 | 18.43 | 224.09 | -62.39 | 70.37 | 0.8945 | -589.4 | -164.7 | |
| 21.34 | -2.00 | 23.89 | -2.00 | 17.47 | 223.39 | -63.09 | 71.52 | 0.8987 | -773.6 | 999999 | |
| 2.06 | -2.00 | 2.34 | -2.00 | 17.46 | 222.98 | -63.50 | 71.58 | 0.9016 | 173.5 | 999999 | |
| 0.00 | 2.23 | 0.00 | 2.62 | 16.40 | 221.79 | -64.69 | 72.87 | 0.9093 | 485.0 | 435.7 | |
| 8.14 | 12.68 | 9.94 | 15.45 | 17.40 | 220.91 | -65.57 | 71.88 | 0.9159 | 410.9 | 114.6 | |
| 2.57 | 4.11 | 3.10 | 4.96 | 16.66 | 221.18 | -65.30 | 72.65 | 0.9136 | 452.4 | 250.3 | |
| 0.00 | 2.06 | 0.00 | 2.62 | 17.21 | 219.88 | -66.60 | 72.18 | 0.9225 | 495.0 | 396.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
