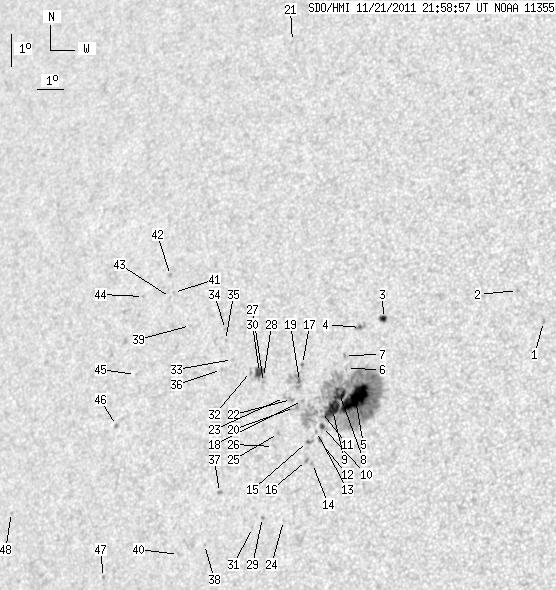

SDO HMI 2011-11-21 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.68 | 390.15 | 45.91 | 237.30 | 13.97 | 252.12 | -33.81 | 68.54 | 0.5822 | -281.0 | -293.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.03 | 16.45 | 259.31 | -26.62 | 59.64 | 0.5001 | -820.0 | -633.7 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 17.38 | 258.26 | -27.67 | 58.87 | 0.5199 | -785.0 | -697.4 | |
| 3.26 | 4.20 | 1.97 | 2.54 | 16.44 | 253.63 | -32.30 | 63.70 | 0.5739 | 740.8 | 544.4 | |
| 0.94 | 4.20 | 0.57 | 2.55 | 16.15 | 252.84 | -33.09 | 64.63 | 0.5826 | -894.2 | -758.9 | |
| 34.54 | 303.31 | 20.79 | 183.09 | 13.99 | 253.03 | -32.90 | 68.09 | 0.5702 | -1193.4 | -408.5 | |
| 0.00 | 1.46 | 0.00 | 0.88 | 14.89 | 252.55 | -33.38 | 66.84 | 0.5805 | -432.0 | -346.3 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 15.29 | 252.41 | -33.52 | 66.27 | 0.5842 | -572.0 | -398.6 | |
| 9.94 | -5.00 | 6.03 | -5.00 | 14.13 | 252.43 | -33.50 | 68.16 | 0.5789 | -738.4 | 999999 | |
| 14.83 | -5.00 | 8.99 | -5.00 | 13.64 | 252.25 | -33.68 | 69.06 | 0.5793 | -837.5 | 999999 | |
| 1.97 | -5.00 | 1.20 | -5.00 | 13.12 | 251.97 | -33.96 | 70.05 | 0.5810 | -654.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 13.58 | 251.86 | -34.07 | 69.35 | 0.5842 | -463.0 | -423.2 | |
| 1.20 | 1.80 | 0.73 | 1.09 | 12.70 | 251.92 | -34.01 | 70.78 | 0.5801 | -618.6 | -629.3 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 12.97 | 251.77 | -34.16 | 70.40 | 0.5831 | -463.0 | -380.0 | |
| 0.00 | 1.71 | 0.00 | 1.04 | 12.00 | 251.77 | -34.16 | 72.01 | 0.5797 | 653.0 | 592.3 | |
| 1.20 | 2.66 | 0.73 | 1.62 | 12.66 | 251.49 | -34.44 | 71.03 | 0.5858 | -573.4 | -518.8 | |
| 0.00 | 2.23 | 0.00 | 1.36 | 12.09 | 251.54 | -34.39 | 71.96 | 0.5832 | 868.0 | 710.5 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 14.98 | 250.90 | -35.03 | 67.51 | 0.6024 | -557.0 | -512.1 | |
| 0.00 | 1.46 | 0.00 | 0.90 | 13.89 | 251.10 | -34.83 | 69.17 | 0.5955 | -738.0 | -486.4 | |
| 1.20 | 15.17 | 0.74 | 9.40 | 14.47 | 250.89 | -35.05 | 68.35 | 0.6005 | -674.9 | -274.5 | |
| 0.00 | 3.60 | 0.00 | 2.22 | 13.68 | 250.84 | -35.09 | 69.64 | 0.5981 | -292.0 | -289.4 | |
| 0.00 | 0.60 | 0.00 | 0.41 | 25.02 | 247.78 | -38.16 | 54.68 | 0.6885 | -692.0 | -532.3 | |
| 0.00 | 1.80 | 0.00 | 1.11 | 13.92 | 250.69 | -35.25 | 69.32 | 0.6010 | -586.0 | -437.0 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 13.97 | 250.41 | -35.52 | 69.35 | 0.6048 | -343.0 | -248.7 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 10.28 | 250.94 | -34.99 | 75.22 | 0.5858 | 678.0 | 523.9 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 12.88 | 250.37 | -35.56 | 71.12 | 0.6014 | 806.0 | 653.3 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 12.49 | 250.25 | -35.68 | 71.81 | 0.6017 | 674.0 | 499.7 | |
| 0.00 | 1.37 | 0.00 | 0.86 | 14.41 | 249.54 | -36.39 | 69.03 | 0.6177 | 869.0 | 680.2 | |
| 0.00 | 1.80 | 0.00 | 1.13 | 14.56 | 249.51 | -36.42 | 68.81 | 0.6186 | 918.0 | 671.6 | |
| 0.00 | 1.29 | 0.00 | 0.79 | 10.35 | 250.15 | -35.78 | 75.34 | 0.5967 | 851.0 | 679.3 | |
| 6.60 | 8.48 | 4.16 | 5.35 | 14.71 | 249.33 | -36.60 | 68.65 | 0.6215 | 846.4 | 653.0 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 10.04 | 249.82 | -36.11 | 75.95 | 0.6005 | 651.0 | 566.8 | |
| 0.00 | 2.66 | 0.00 | 1.68 | 14.73 | 248.98 | -36.95 | 68.76 | 0.6261 | 565.0 | 385.9 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 15.08 | 248.21 | -37.72 | 68.55 | 0.6370 | 730.0 | 611.9 | |
| 0.00 | 1.29 | 0.00 | 0.83 | 15.99 | 247.74 | -38.19 | 67.38 | 0.6462 | 678.0 | 581.2 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 15.65 | 247.82 | -38.12 | 67.85 | 0.6441 | 734.0 | 652.1 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 14.77 | 247.85 | -38.08 | 69.16 | 0.6405 | 617.0 | 520.2 | |
| 0.00 | 1.97 | 0.00 | 1.24 | 11.06 | 248.43 | -37.50 | 74.71 | 0.6217 | 838.0 | 687.4 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 9.50 | 248.08 | -37.85 | 77.29 | 0.6227 | 699.0 | 571.3 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 16.08 | 246.33 | -39.60 | 67.82 | 0.6638 | 572.0 | 488.1 | |
| 0.00 | 1.29 | 0.00 | 0.82 | 9.18 | 247.13 | -38.80 | 78.01 | 0.6347 | 455.0 | 306.3 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 17.07 | 245.39 | -40.54 | 66.76 | 0.6786 | 615.0 | 491.4 | |
| 0.00 | 1.63 | 0.00 | 1.10 | 17.59 | 245.13 | -40.80 | 66.13 | 0.6835 | 664.0 | 503.3 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 16.91 | 245.31 | -40.62 | 67.01 | 0.6790 | 477.0 | 428.8 | |
| 0.00 | 1.20 | 0.00 | 0.82 | 16.92 | 244.20 | -41.74 | 67.43 | 0.6921 | 545.0 | 472.6 | |
| 0.00 | 0.26 | 0.00 | 0.17 | 14.54 | 244.46 | -41.47 | 70.70 | 0.6815 | 748.0 | 678.0 | |
| 0.00 | 1.29 | 0.00 | 0.87 | 12.98 | 244.03 | -41.91 | 73.07 | 0.6827 | 620.0 | 517.0 | |
| 0.00 | 1.37 | 0.00 | 0.91 | 8.42 | 244.27 | -41.66 | 79.70 | 0.6706 | 656.0 | 503.0 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 10.27 | 240.15 | -45.79 | 77.75 | 0.7240 | 461.0 | 376.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
