SDO HMI 2011-11-21 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.16 | 390.28 | 63.93 | 340.78 | 14.67 | 231.29 | -54.65 | 73.54 | 0.8232 | -218.0 | -143.9 | |
|
previous
or next observation for the same group /

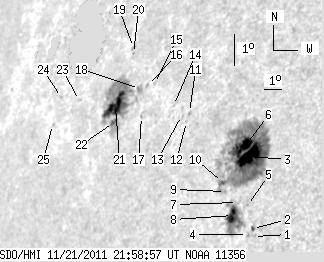

back to the solar disc SDO HMI 2011-11-21 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.30 | 11.99 | 234.92 | -51.01 | 76.31 | 0.7849 | 333.0 | 297.4 | |
| 1.46 | 1.71 | 1.16 | 1.37 | 12.23 | 234.81 | -51.13 | 76.02 | 0.7864 | 225.8 | 162.7 | |
| 21.60 | 231.06 | 17.66 | 190.11 | 14.39 | 233.96 | -51.97 | 73.46 | 0.7982 | -1126.3 | -349.9 | |
| 0.00 | 1.54 | 0.00 | 1.24 | 12.05 | 234.61 | -51.32 | 76.29 | 0.7881 | 59.0 | -37.3 | |
| 0.00 | 0.94 | 0.00 | 0.76 | 12.92 | 234.37 | -51.56 | 75.23 | 0.7918 | -718.0 | -631.6 | |
| 12.08 | -3.00 | 9.97 | -3.00 | 14.69 | 233.66 | -52.27 | 73.14 | 0.8017 | -762.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.84 | 12.99 | 233.85 | -52.08 | 75.22 | 0.7973 | -643.0 | -521.7 | |
| 9.08 | 37.80 | 7.43 | 30.82 | 12.59 | 233.72 | -52.21 | 75.73 | 0.7981 | -574.7 | -106.7 | |
| 0.00 | 1.03 | 0.00 | 0.85 | 13.31 | 233.15 | -52.78 | 74.94 | 0.8047 | -373.0 | -309.9 | |
| 1.80 | -3.00 | 1.50 | -3.00 | 13.57 | 232.92 | -53.01 | 74.65 | 0.8075 | -422.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.99 | 15.64 | 230.42 | -55.51 | 72.55 | 0.8342 | -521.0 | -423.2 | |
| 0.00 | 0.69 | 0.00 | 0.61 | 15.36 | 230.37 | -55.56 | 72.89 | 0.8343 | -517.0 | -448.5 | |
| 0.00 | 0.43 | 0.00 | 0.39 | 15.53 | 230.03 | -55.90 | 72.74 | 0.8377 | -554.0 | -566.0 | |
| 0.00 | 0.94 | 0.00 | 0.86 | 15.82 | 229.46 | -56.47 | 72.49 | 0.8432 | -518.0 | -406.5 | |
| 0.00 | 1.11 | 0.00 | 1.06 | 16.46 | 228.08 | -57.85 | 71.96 | 0.8560 | -406.0 | -294.6 | |
| 0.00 | 1.54 | 0.00 | 1.48 | 16.39 | 227.71 | -58.22 | 72.10 | 0.8592 | -251.0 | -170.1 | |
| 0.00 | 1.11 | 0.00 | 1.07 | 15.44 | 227.79 | -58.14 | 73.18 | 0.8573 | 404.0 | 377.9 | |
| 0.00 | 4.37 | 0.00 | 4.25 | 16.28 | 227.28 | -58.65 | 72.28 | 0.8627 | 350.0 | 318.6 | |
| 0.00 | 1.97 | 0.00 | 1.98 | 17.51 | 226.28 | -59.65 | 71.01 | 0.8723 | -491.0 | -388.4 | |
| 0.00 | 0.77 | 0.00 | 0.77 | 17.33 | 226.38 | -59.55 | 71.20 | 0.8713 | -449.0 | -408.9 | |
| 22.88 | 83.39 | 22.96 | 83.68 | 15.72 | 226.10 | -59.84 | 73.08 | 0.8719 | 694.3 | 284.2 | |
| 3.26 | 13.20 | 3.25 | 13.13 | 15.20 | 226.22 | -59.71 | 73.66 | 0.8704 | 556.7 | 302.1 | |
| 0.00 | 1.29 | 0.00 | 1.39 | 15.80 | 223.75 | -62.18 | 73.27 | 0.8905 | 103.0 | 85.3 | |
| 0.00 | 1.11 | 0.00 | 1.25 | 15.86 | 222.49 | -63.44 | 73.35 | 0.8999 | 332.0 | 305.4 | |
| 0.00 | 0.51 | 0.00 | 0.58 | 15.02 | 222.33 | -63.60 | 74.29 | 0.9005 | 386.0 | 360.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
