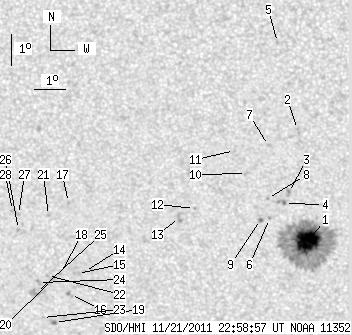

SDO HMI 2011-11-21 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.22 | 241.79 | 17.89 | 134.29 | -24.52 | 283.61 | -1.77 | 176.56 | 0.4525 | 414.4 | 251.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.23 | 190.97 | 16.19 | 105.92 | -24.53 | 284.84 | -0.54 | 178.90 | 0.4499 | 1346.8 | 393.1 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -20.91 | 284.53 | -0.85 | 177.98 | 0.3925 | 829.0 | 582.9 | |
| 0.00 | 3.17 | 0.00 | 1.73 | -22.95 | 284.23 | -1.15 | 177.50 | 0.4253 | 1035.0 | 772.0 | |
| 0.94 | 3.09 | 0.52 | 1.69 | -23.31 | 284.10 | -1.28 | 177.26 | 0.4311 | 938.2 | 810.4 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -18.13 | 283.93 | -1.45 | 176.01 | 0.3479 | 817.0 | 616.6 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -23.80 | 283.61 | -1.77 | 176.30 | 0.4393 | 1036.0 | 783.9 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -21.42 | 283.61 | -1.77 | 175.87 | 0.4016 | 859.0 | 567.5 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -23.15 | 283.55 | -1.83 | 176.07 | 0.4291 | 867.0 | 689.8 | |
| 0.34 | 2.06 | 0.19 | 1.13 | -23.84 | 283.32 | -2.06 | 175.69 | 0.4402 | 899.8 | 721.6 | |
| 0.00 | 1.89 | 0.00 | 1.03 | -22.33 | 282.89 | -2.49 | 174.45 | 0.4170 | 811.0 | 635.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -21.59 | 282.52 | -2.86 | 173.41 | 0.4058 | 825.0 | 703.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -23.48 | 281.19 | -4.19 | 171.17 | 0.4384 | -807.0 | -630.4 | |
| 0.00 | 3.86 | 0.00 | 2.13 | -23.78 | 280.69 | -4.69 | 170.27 | 0.4443 | -638.0 | -713.4 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -25.58 | 277.49 | -7.89 | 165.05 | 0.4822 | -892.0 | -678.2 | |
| 0.00 | 3.17 | 0.00 | 1.79 | -25.65 | 277.25 | -8.13 | 164.67 | 0.4842 | -728.0 | -547.6 | |
| 0.00 | 2.31 | 0.00 | 1.32 | -26.36 | 276.97 | -8.41 | 164.60 | 0.4957 | -668.0 | -700.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.30 | 277.11 | -8.27 | 162.86 | 0.4501 | -822.0 | -734.3 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -25.66 | 276.68 | -8.69 | 163.67 | 0.4866 | -642.0 | -614.1 | |
| 1.71 | 2.57 | 0.99 | 1.48 | -27.31 | 276.35 | -9.03 | 164.13 | 0.5119 | -699.0 | -568.0 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -25.86 | 276.40 | -8.98 | 163.31 | 0.4908 | -849.0 | -680.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -23.73 | 276.43 | -8.95 | 161.87 | 0.4597 | -818.0 | -676.1 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -25.72 | 276.25 | -9.13 | 162.94 | 0.4895 | -661.0 | -508.3 | |
| 0.00 | 0.51 | 0.00 | 0.30 | -27.14 | 275.96 | -9.42 | 163.38 | 0.5111 | -571.0 | -497.5 | |
| 0.00 | 2.57 | 0.00 | 1.46 | -25.96 | 275.93 | -9.45 | 162.55 | 0.4944 | -867.0 | -683.4 | |
| 0.00 | 7.63 | 0.00 | 4.36 | -26.30 | 275.83 | -9.55 | 162.62 | 0.4997 | -660.0 | -673.1 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -24.20 | 275.41 | -9.97 | 160.35 | 0.4716 | -834.0 | -669.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -23.70 | 275.45 | -9.93 | 160.02 | 0.4643 | -763.0 | -578.7 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -23.57 | 275.26 | -10.12 | 159.57 | 0.4634 | -759.0 | -660.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
