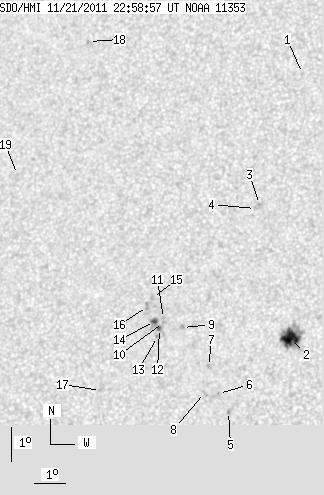

SDO HMI 2011-11-21 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.06 | 71.31 | 12.17 | 37.99 | 8.16 | 264.84 | -20.54 | 72.77 | 0.3659 | -958.5 | -614.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.65 | 15.60 | 266.58 | -18.80 | 52.79 | 0.3914 | -678.0 | -525.4 | |
| 18.86 | 37.54 | 9.90 | 19.71 | 7.64 | 266.76 | -18.62 | 72.68 | 0.3330 | -1220.8 | -550.9 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 11.63 | 265.53 | -19.85 | 63.20 | 0.3742 | -806.0 | -719.0 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 11.51 | 265.41 | -19.97 | 63.63 | 0.3751 | -743.0 | -579.5 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 5.45 | 264.88 | -20.50 | 80.07 | 0.3554 | -975.0 | -822.9 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 5.98 | 264.54 | -20.83 | 78.76 | 0.3622 | -999.0 | -734.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 6.78 | 264.19 | -21.19 | 76.79 | 0.3703 | -887.0 | -748.6 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 6.00 | 264.10 | -21.28 | 78.90 | 0.3695 | -800.0 | -639.5 | |
| 0.00 | 2.49 | 0.00 | 1.34 | 7.92 | 263.30 | -22.08 | 74.33 | 0.3884 | -869.0 | -703.7 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 8.06 | 262.67 | -22.71 | 74.36 | 0.3986 | -995.0 | -848.9 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 8.18 | 262.67 | -22.71 | 74.07 | 0.3992 | -737.0 | -683.7 | |
| 1.71 | 8.57 | 0.93 | 4.63 | 7.88 | 262.55 | -22.82 | 74.87 | 0.3998 | -968.9 | -722.2 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 7.65 | 262.50 | -22.88 | 75.48 | 0.3997 | -831.0 | -696.4 | |
| 2.49 | -12.00 | 1.34 | -12.00 | 8.09 | 262.38 | -23.00 | 74.47 | 0.4032 | -954.6 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.58 | 8.80 | 262.27 | -23.11 | 72.82 | 0.4077 | -593.0 | -511.4 | |
| 0.00 | 3.00 | 0.00 | 1.63 | 8.53 | 262.12 | -23.26 | 73.55 | 0.4089 | -627.0 | -557.5 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 6.02 | 260.73 | -24.65 | 80.17 | 0.4227 | -617.0 | -497.4 | |
| 0.00 | 1.37 | 0.00 | 0.78 | 16.48 | 259.34 | -26.04 | 59.07 | 0.4928 | -842.0 | -723.2 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 12.42 | 257.43 | -27.95 | 68.15 | 0.4952 | -735.0 | -543.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
