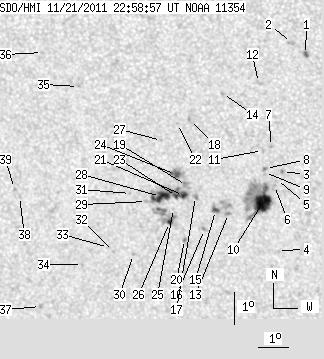

SDO HMI 2011-11-21 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.54 | 189.93 | 25.74 | 105.20 | -16.45 | 266.18 | -19.20 | 135.13 | 0.4485 | 37.8 | -58.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.14 | 2.49 | 1.14 | 1.32 | -12.11 | 269.63 | -15.75 | 132.57 | 0.3620 | 917.1 | 887.0 | |
| 0.00 | 3.00 | 0.00 | 1.59 | -11.75 | 269.21 | -16.17 | 131.07 | 0.3632 | 819.0 | 648.6 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -15.72 | 268.64 | -16.74 | 137.66 | 0.4135 | 981.0 | 860.8 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -18.20 | 268.24 | -17.14 | 140.96 | 0.4462 | 520.0 | 535.9 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -15.97 | 268.42 | -16.96 | 137.72 | 0.4186 | 493.0 | 491.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -16.16 | 268.34 | -17.04 | 137.90 | 0.4216 | 972.0 | 733.0 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -14.95 | 268.35 | -17.03 | 135.83 | 0.4079 | -938.0 | -762.3 | |
| 0.00 | 1.80 | 0.00 | 0.98 | -15.63 | 268.10 | -17.28 | 136.62 | 0.4183 | 983.0 | 784.3 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -15.76 | 268.05 | -17.33 | 136.76 | 0.4202 | 556.0 | 627.2 | |
| 19.89 | 63.00 | 10.91 | 34.58 | -16.70 | 267.90 | -17.48 | 138.07 | 0.4323 | 1112.9 | 432.8 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -15.08 | 268.05 | -17.33 | 135.57 | 0.4127 | -692.0 | -523.2 | |
| 0.00 | 2.57 | 0.00 | 1.38 | -12.98 | 268.08 | -17.29 | 131.72 | 0.3898 | 745.0 | 601.2 | |
| 0.00 | 2.40 | 0.00 | 1.33 | -17.05 | 266.76 | -18.62 | 136.88 | 0.4485 | 707.0 | 530.3 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -13.33 | 266.91 | -18.47 | 130.57 | 0.4076 | 810.0 | 683.6 | |
| 2.74 | 12.77 | 1.52 | 7.07 | -16.97 | 266.34 | -19.03 | 136.13 | 0.4520 | -1025.9 | -264.9 | |
| 0.00 | 2.06 | 0.00 | 1.15 | -17.57 | 265.92 | -19.46 | 136.46 | 0.4631 | 900.0 | 725.3 | |
| 0.00 | 3.00 | 0.00 | 1.67 | -16.54 | 265.73 | -19.64 | 134.55 | 0.4541 | -922.0 | -764.0 | |
| 0.00 | 2.14 | 0.00 | 1.17 | -14.15 | 265.77 | -19.61 | 130.45 | 0.4294 | 768.0 | 469.4 | |
| 0.00 | 4.80 | 0.00 | 2.66 | -16.20 | 265.48 | -19.90 | 133.62 | 0.4535 | -886.0 | -775.7 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -17.89 | 265.22 | -20.16 | 135.98 | 0.4740 | 722.0 | 481.9 | |
| 3.09 | 33.94 | 1.72 | 18.96 | -16.51 | 265.34 | -20.04 | 133.95 | 0.4582 | -1085.6 | -766.3 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -14.27 | 265.37 | -20.01 | 130.13 | 0.4355 | 731.0 | 571.7 | |
| 1.71 | -21.00 | 0.96 | -21.00 | -16.54 | 265.11 | -20.27 | 133.69 | 0.4612 | -1062.2 | 999999 | |
| 4.29 | 10.29 | 2.38 | 5.71 | -15.86 | 265.15 | -20.23 | 132.60 | 0.4538 | -981.9 | -667.6 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -16.92 | 264.97 | -20.41 | 134.11 | 0.4666 | -396.0 | -426.4 | |
| 1.97 | 20.74 | 1.11 | 11.65 | -17.36 | 264.78 | -20.60 | 134.56 | 0.4732 | 489.0 | -393.0 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -14.81 | 264.80 | -20.58 | 130.31 | 0.4475 | 704.0 | 540.3 | |
| 10.71 | -21.00 | 6.00 | -21.00 | -16.55 | 264.58 | -20.80 | 132.98 | 0.4672 | -993.9 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -16.71 | 264.10 | -21.28 | 132.61 | 0.4743 | -515.0 | -360.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -18.39 | 263.45 | -21.93 | 134.42 | 0.4982 | 625.0 | 489.7 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -16.47 | 263.59 | -21.78 | 131.57 | 0.4777 | -750.0 | -602.1 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -18.30 | 262.79 | -22.59 | 133.47 | 0.5046 | -775.0 | -661.3 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -18.18 | 262.64 | -22.74 | 133.09 | 0.5050 | -783.0 | -533.2 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -18.73 | 261.67 | -23.71 | 132.79 | 0.5209 | -589.0 | -512.4 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -13.18 | 262.23 | -23.15 | 124.23 | 0.4649 | -846.0 | -647.1 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -12.16 | 261.14 | -24.24 | 121.17 | 0.4711 | -731.0 | -625.3 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -20.09 | 260.00 | -25.38 | 132.91 | 0.5517 | -716.0 | -579.6 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -16.62 | 259.83 | -25.55 | 127.51 | 0.5231 | -651.0 | -513.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -16.37 | 259.69 | -25.69 | 126.98 | 0.5227 | -684.0 | -575.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
