SDO HMI 2011-11-21 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.20 | 402.16 | 58.19 | 345.77 | 14.68 | 231.41 | -53.97 | 73.42 | 0.8167 | -268.1 | -136.2 | |
|
previous
or next observation for the same group /

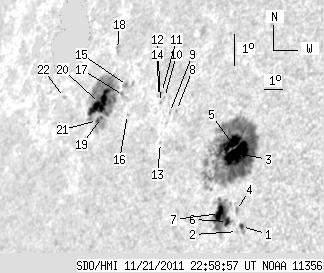

back to the solar disc SDO HMI 2011-11-21 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.31 | 3.86 | 1.82 | 3.03 | 12.22 | 234.88 | -50.50 | 75.94 | 0.7798 | 300.8 | 324.8 | |
| 0.00 | 1.03 | 0.00 | 0.81 | 12.06 | 234.72 | -50.65 | 76.16 | 0.7812 | -90.0 | -12.9 | |
| 22.89 | 237.25 | 18.49 | 192.84 | 14.41 | 233.99 | -51.39 | 73.33 | 0.7923 | -1127.6 | -347.3 | |
| 0.00 | 2.40 | 0.00 | 1.91 | 12.69 | 234.51 | -50.87 | 75.40 | 0.7844 | -751.0 | -662.9 | |
| 10.46 | -3.00 | 8.51 | -3.00 | 14.70 | 233.69 | -51.68 | 73.01 | 0.7958 | -798.7 | 999999 | |
| 2.14 | 41.83 | 1.71 | 33.71 | 12.35 | 234.16 | -51.21 | 75.88 | 0.7875 | 596.8 | -208.2 | |
| 7.89 | -6.00 | 6.38 | -6.00 | 12.58 | 233.71 | -51.67 | 75.67 | 0.7925 | -630.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.98 | 15.62 | 230.47 | -54.91 | 72.47 | 0.8287 | -531.0 | -423.7 | |
| 0.00 | 1.03 | 0.00 | 0.91 | 15.55 | 230.12 | -55.26 | 72.61 | 0.8318 | -531.0 | -442.5 | |
| 0.00 | 0.94 | 0.00 | 0.85 | 16.00 | 229.66 | -55.72 | 72.15 | 0.8366 | -381.0 | -335.6 | |
| 0.00 | 0.77 | 0.00 | 0.70 | 16.14 | 229.43 | -55.95 | 72.02 | 0.8389 | -472.0 | -414.2 | |
| 0.00 | 0.94 | 0.00 | 0.85 | 15.84 | 229.50 | -55.88 | 72.37 | 0.8378 | -496.0 | -411.7 | |
| 0.00 | 0.51 | 0.00 | 0.46 | 14.63 | 229.99 | -55.39 | 73.73 | 0.8318 | -478.0 | -388.2 | |
| 0.00 | 0.60 | 0.00 | 0.54 | 16.02 | 229.32 | -56.06 | 72.18 | 0.8398 | -394.0 | -346.6 | |
| 0.00 | 4.63 | 0.00 | 4.42 | 16.30 | 227.42 | -57.96 | 72.15 | 0.8568 | 218.0 | 161.9 | |
| 0.00 | 1.03 | 0.00 | 0.97 | 15.42 | 227.82 | -57.56 | 73.11 | 0.8523 | 468.0 | 430.8 | |
| 0.00 | 3.26 | 0.00 | 3.11 | 15.99 | 227.33 | -58.05 | 72.52 | 0.8572 | 547.0 | 441.1 | |
| 0.00 | 3.26 | 0.00 | 3.22 | 17.38 | 226.29 | -59.09 | 71.08 | 0.8676 | -511.0 | -366.8 | |
| 1.03 | 96.60 | 1.01 | 95.28 | 15.29 | 226.35 | -59.03 | 73.47 | 0.8648 | 661.0 | 342.3 | |
| 19.11 | -19.00 | 18.92 | -19.00 | 15.71 | 226.03 | -59.35 | 73.03 | 0.8679 | 673.9 | 999999 | |
| 1.37 | -19.00 | 1.35 | -19.00 | 15.19 | 226.15 | -59.23 | 73.61 | 0.8664 | 464.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.18 | 15.82 | 223.77 | -61.61 | 73.18 | 0.8862 | 101.0 | 86.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
