SDO HMI 2011-11-21 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.57 | 205.14 | 35.64 | 225.37 | 17.48 | 223.02 | -62.36 | 71.41 | 0.8933 | -449.9 | -96.4 | |
|
previous
or next observation for the same group /

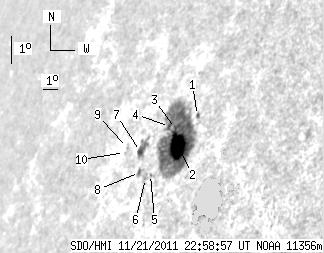

back to the solar disc SDO HMI 2011-11-21 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.37 | 1.89 | 1.45 | 2.00 | 18.46 | 224.09 | -61.29 | 70.18 | 0.8862 | -627.6 | -621.3 | |
| 23.57 | 176.66 | 25.46 | 192.49 | 17.48 | 223.43 | -61.95 | 71.37 | 0.8903 | -781.5 | -153.5 | |
| 1.03 | -2.00 | 1.13 | -2.00 | 18.02 | 222.90 | -62.48 | 70.83 | 0.8948 | -442.2 | 999999 | |
| 2.31 | -2.00 | 2.58 | -2.00 | 18.07 | 222.46 | -62.92 | 70.84 | 0.8980 | -223.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.96 | 16.57 | 222.07 | -63.31 | 72.54 | 0.8996 | -20.0 | -28.9 | |
| 0.00 | 4.89 | 0.00 | 5.54 | 16.44 | 221.80 | -63.58 | 72.72 | 0.9014 | 350.0 | 378.4 | |
| 4.29 | 15.17 | 5.02 | 17.72 | 17.24 | 220.94 | -64.44 | 71.92 | 0.9082 | 339.3 | 169.1 | |
| 0.00 | 3.69 | 0.00 | 4.26 | 16.61 | 221.27 | -64.11 | 72.59 | 0.9053 | 554.0 | 436.5 | |
| 0.00 | 1.29 | 0.00 | 1.56 | 17.34 | 219.91 | -65.47 | 71.93 | 0.9152 | 541.0 | 395.5 | |
| 0.00 | 0.69 | 0.00 | 0.84 | 17.18 | 219.79 | -65.59 | 72.11 | 0.9159 | 469.0 | 492.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
