SDO HMI 2011-11-21 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.78 | 399.69 | 59.46 | 339.89 | 14.70 | 231.31 | -53.52 | 73.31 | 0.8124 | -261.9 | -138.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

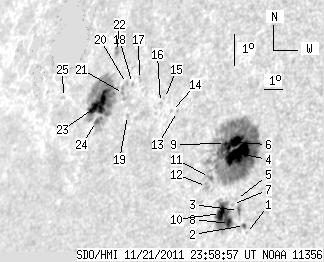

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.73 | 12.02 | 235.09 | -49.74 | 76.06 | 0.7714 | 312.0 | 357.9 | |
| 0.77 | 1.97 | 0.60 | 1.53 | 12.26 | 234.93 | -49.90 | 75.78 | 0.7734 | 375.9 | 226.9 | |
| 1.46 | 4.54 | 1.14 | 3.57 | 12.70 | 234.53 | -50.30 | 75.28 | 0.7783 | -676.5 | -589.5 | |
| 23.83 | 227.85 | 19.03 | 182.76 | 14.41 | 233.97 | -50.85 | 73.21 | 0.7869 | -1120.5 | -367.5 | |
| 0.00 | 1.11 | 0.00 | 0.88 | 13.03 | 234.34 | -50.49 | 74.90 | 0.7808 | -197.0 | -197.8 | |
| 11.06 | -4.00 | 8.89 | -4.00 | 14.74 | 233.72 | -51.11 | 72.85 | 0.7900 | -787.8 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.95 | 12.87 | 234.19 | -50.64 | 75.12 | 0.7821 | -750.0 | -597.9 | |
| 3.26 | 36.00 | 2.57 | 28.67 | 12.30 | 234.21 | -50.62 | 75.85 | 0.7812 | 552.3 | -240.9 | |
| 1.03 | -4.00 | 0.83 | -4.00 | 14.70 | 233.29 | -51.54 | 72.98 | 0.7943 | -471.8 | 999999 | |
| 6.94 | -8.00 | 5.55 | -8.00 | 12.59 | 233.69 | -51.14 | 75.57 | 0.7870 | -620.3 | 999999 | |
| 0.00 | 3.43 | 0.00 | 2.80 | 13.65 | 232.84 | -51.99 | 74.37 | 0.7973 | -373.0 | -261.3 | |
| 0.00 | 3.60 | 0.00 | 2.94 | 13.38 | 232.77 | -52.06 | 74.72 | 0.7976 | 187.0 | 111.8 | |
| 0.00 | 0.94 | 0.00 | 0.82 | 15.60 | 230.51 | -54.32 | 72.38 | 0.8231 | -510.0 | -461.4 | |
| 0.00 | 0.77 | 0.00 | 0.67 | 15.59 | 230.19 | -54.64 | 72.45 | 0.8260 | -459.0 | -453.4 | |
| 0.00 | 0.86 | 0.00 | 0.76 | 15.98 | 229.66 | -55.17 | 72.08 | 0.8315 | -380.0 | -378.1 | |
| 0.00 | 0.94 | 0.00 | 0.84 | 15.85 | 229.49 | -55.33 | 72.26 | 0.8329 | -540.0 | -434.3 | |
| 0.00 | 1.54 | 0.00 | 1.43 | 16.51 | 228.04 | -56.79 | 71.72 | 0.8469 | -473.0 | -331.2 | |
| 0.00 | 1.37 | 0.00 | 1.28 | 16.38 | 227.70 | -57.13 | 71.93 | 0.8497 | -162.0 | -155.5 | |
| 0.00 | 1.46 | 0.00 | 1.35 | 15.40 | 227.85 | -56.98 | 73.05 | 0.8472 | 498.0 | 399.3 | |
| 0.00 | 1.71 | 0.00 | 1.61 | 16.37 | 227.36 | -57.47 | 71.99 | 0.8527 | 156.0 | 166.6 | |
| 0.00 | 4.54 | 0.00 | 4.28 | 16.06 | 227.33 | -57.50 | 72.36 | 0.8526 | 508.0 | 418.7 | |
| 0.00 | 3.34 | 0.00 | 3.25 | 17.33 | 226.30 | -58.52 | 71.05 | 0.8629 | -496.0 | -379.3 | |
| 19.37 | 100.21 | 18.86 | 97.34 | 15.69 | 226.09 | -58.74 | 72.97 | 0.8628 | 698.0 | 331.9 | |
| 2.06 | -23.00 | 1.99 | -23.00 | 15.17 | 226.15 | -58.68 | 73.56 | 0.8617 | 446.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.43 | 15.83 | 223.79 | -61.04 | 73.10 | 0.8817 | 152.0 | 107.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
