SDO HMI 2011-11-22 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.72 | 190.56 | 24.07 | 104.95 | -16.60 | 266.19 | -18.09 | 137.09 | 0.4380 | 19.4 | -57.7 | |
|
previous
or next observation for the same group /

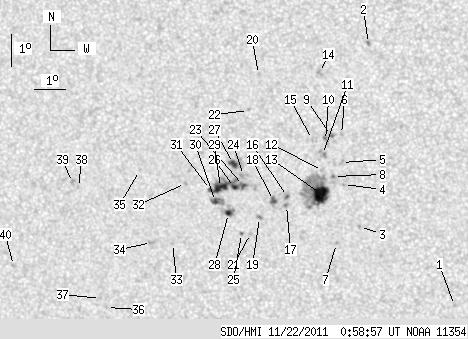

back to the solar disc SDO HMI 2011-11-22 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.66 | -20.21 | 271.89 | -12.39 | 151.97 | 0.4303 | 801.0 | 502.9 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -12.05 | 269.72 | -14.55 | 134.65 | 0.3470 | 1067.0 | 866.7 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -17.73 | 269.03 | -15.24 | 143.41 | 0.4220 | 947.0 | 830.9 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -16.41 | 268.63 | -15.65 | 140.67 | 0.4099 | 742.0 | 644.8 | |
| 0.00 | 2.14 | 0.00 | 1.16 | -15.73 | 268.62 | -15.66 | 139.52 | 0.4018 | 840.0 | 728.7 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -14.86 | 268.69 | -15.59 | 138.14 | 0.3909 | -803.0 | -641.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -18.27 | 268.24 | -16.04 | 142.85 | 0.4362 | 875.0 | 717.2 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -16.17 | 268.33 | -15.95 | 139.74 | 0.4101 | 1065.0 | 897.3 | |
| 0.34 | 2.57 | 0.18 | 1.39 | -14.89 | 268.37 | -15.91 | 137.63 | 0.3948 | -1032.2 | -825.0 | |
| 0.00 | 2.57 | 0.00 | 1.39 | -15.05 | 268.16 | -16.11 | 137.55 | 0.3988 | -551.0 | -608.0 | |
| 0.00 | 4.72 | 0.00 | 2.55 | -15.49 | 268.03 | -16.24 | 138.08 | 0.4052 | 688.0 | 705.9 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -15.98 | 267.99 | -16.28 | 138.85 | 0.4114 | 745.0 | 623.8 | |
| 17.32 | 66.61 | 9.45 | 36.36 | -16.73 | 267.90 | -16.38 | 139.91 | 0.4212 | 1145.3 | 438.9 | |
| 0.00 | 2.40 | 0.00 | 1.28 | -12.96 | 268.13 | -16.15 | 133.56 | 0.3758 | 898.0 | 754.1 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -15.02 | 267.75 | -16.53 | 136.79 | 0.4030 | -581.0 | -428.3 | |
| 1.11 | 1.80 | 0.61 | 0.99 | -16.81 | 266.79 | -17.49 | 138.22 | 0.4336 | 418.8 | -41.6 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -17.09 | 266.73 | -17.55 | 138.57 | 0.4374 | 631.0 | 429.0 | |
| 3.26 | 5.57 | 1.80 | 3.07 | -16.94 | 266.32 | -17.96 | 137.69 | 0.4400 | -991.5 | -677.1 | |
| 0.00 | 2.31 | 0.00 | 1.28 | -17.48 | 265.81 | -18.47 | 137.76 | 0.4514 | 765.0 | 608.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -13.04 | 266.18 | -18.10 | 130.54 | 0.4000 | 693.0 | 540.1 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -17.99 | 265.46 | -18.82 | 138.03 | 0.4607 | 709.0 | 494.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -14.15 | 265.77 | -18.51 | 132.03 | 0.4162 | 733.0 | 637.6 | |
| 1.63 | 34.98 | 0.90 | 19.38 | -16.48 | 265.39 | -18.89 | 135.53 | 0.4450 | -1058.5 | -837.7 | |
| 0.00 | 4.03 | 0.00 | 2.22 | -16.17 | 265.42 | -18.86 | 135.06 | 0.4413 | -998.0 | -755.2 | |
| 1.11 | 1.37 | 0.62 | 0.77 | -17.99 | 265.16 | -19.12 | 137.60 | 0.4638 | 497.5 | 378.3 | |
| 2.23 | -23.00 | 1.23 | -23.00 | -16.55 | 265.09 | -19.19 | 135.20 | 0.4490 | -1000.7 | 999999 | |
| 4.29 | 10.63 | 2.36 | 5.86 | -15.80 | 265.13 | -19.15 | 134.01 | 0.4407 | -975.1 | -597.0 | |
| 2.40 | 9.77 | 1.34 | 5.45 | -17.37 | 264.80 | -19.47 | 136.11 | 0.4609 | 574.7 | -164.5 | |
| 6.77 | -23.00 | 3.76 | -23.00 | -16.55 | 264.63 | -19.65 | 134.55 | 0.4542 | -1076.7 | 999999 | |
| 2.83 | 8.49 | 1.58 | 4.73 | -16.99 | 264.42 | -19.86 | 134.97 | 0.4611 | -758.5 | -691.0 | |
| 0.43 | -23.00 | 0.24 | -23.00 | -16.62 | 264.29 | -19.98 | 134.19 | 0.4586 | -794.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -16.44 | 263.49 | -20.79 | 132.80 | 0.4659 | -840.0 | -659.6 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -18.34 | 262.83 | -21.45 | 134.93 | 0.4923 | -823.0 | -629.5 | |
| 0.00 | 3.26 | 0.00 | 1.86 | -18.31 | 262.12 | -22.15 | 134.00 | 0.4997 | -747.0 | -654.2 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -16.06 | 262.01 | -22.27 | 130.27 | 0.4793 | -658.0 | -454.2 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -20.41 | 260.27 | -24.01 | 134.86 | 0.5400 | -715.0 | -574.2 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -20.12 | 260.11 | -24.17 | 134.27 | 0.5390 | -806.0 | -524.4 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -16.62 | 259.88 | -24.39 | 128.72 | 0.5093 | -614.0 | -529.3 | |
| 0.00 | 2.14 | 0.00 | 1.23 | -16.47 | 259.70 | -24.58 | 128.28 | 0.5101 | -624.0 | -541.5 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -19.12 | 257.25 | -27.03 | 129.79 | 0.5611 | -830.0 | -506.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
