SDO HMI 2011-11-22 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.71 | 359.30 | 42.99 | 212.77 | 14.06 | 252.42 | -31.30 | 67.08 | 0.5493 | -488.1 | -340.2 | |
|
previous
or next observation for the same group /

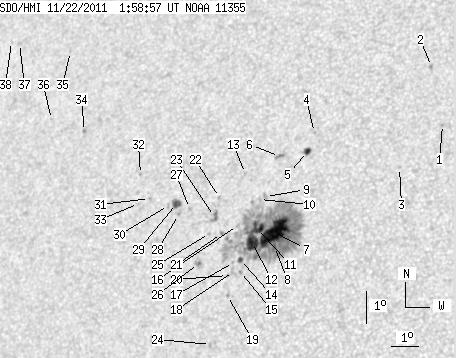

back to the solar disc SDO HMI 2011-11-22 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.49 | 17.33 | 258.38 | -25.35 | 56.87 | 0.4900 | -744.0 | -641.9 | |
| 0.00 | 1.89 | 0.00 | 1.09 | 19.11 | 257.72 | -26.01 | 54.40 | 0.5117 | -779.0 | -643.7 | |
| 0.00 | 1.37 | 0.00 | 0.78 | 15.99 | 257.10 | -26.63 | 60.43 | 0.4974 | -613.0 | -492.2 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 17.01 | 253.95 | -29.78 | 61.06 | 0.5448 | -712.0 | -600.9 | |
| 3.09 | 5.23 | 1.82 | 3.08 | 16.43 | 253.80 | -29.93 | 62.15 | 0.5433 | 741.5 | 482.3 | |
| 0.00 | 3.34 | 0.00 | 1.99 | 16.26 | 252.83 | -30.90 | 63.09 | 0.5550 | -886.0 | -734.0 | |
| 38.07 | 293.56 | 22.38 | 173.01 | 13.95 | 253.02 | -30.70 | 66.95 | 0.5407 | -1205.9 | -409.6 | |
| 1.71 | -7.00 | 1.01 | -7.00 | 13.53 | 253.09 | -30.64 | 67.66 | 0.5379 | -798.2 | 999999 | |
| 0.00 | 2.40 | 0.00 | 1.42 | 15.03 | 252.53 | -31.19 | 65.35 | 0.5525 | -768.0 | -577.8 | |
| 0.00 | 1.37 | 0.00 | 0.82 | 14.94 | 252.33 | -31.39 | 65.63 | 0.5547 | -602.0 | -457.6 | |
| 9.00 | -7.00 | 5.33 | -7.00 | 14.06 | 252.40 | -31.33 | 67.11 | 0.5496 | -777.0 | 999999 | |
| 13.72 | -7.00 | 8.12 | -7.00 | 13.63 | 252.29 | -31.44 | 67.91 | 0.5493 | -885.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 15.72 | 251.69 | -32.03 | 64.69 | 0.5670 | 331.0 | 299.8 | |
| 2.06 | 2.83 | 1.22 | 1.68 | 13.11 | 251.93 | -31.80 | 69.00 | 0.5518 | -700.4 | -509.6 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 12.75 | 251.98 | -31.74 | 69.61 | 0.5496 | -739.0 | -602.6 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 14.14 | 251.67 | -32.06 | 67.37 | 0.5598 | -543.0 | -300.4 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 13.02 | 251.70 | -32.03 | 69.29 | 0.5547 | -252.0 | -214.2 | |
| 0.00 | 4.20 | 0.00 | 2.49 | 12.75 | 251.73 | -31.99 | 69.74 | 0.5530 | -463.0 | -477.6 | |
| 0.00 | 1.80 | 0.00 | 1.07 | 12.02 | 251.62 | -32.11 | 71.06 | 0.5518 | 881.0 | 659.9 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 12.62 | 251.54 | -32.19 | 70.05 | 0.5552 | -631.0 | -521.3 | |
| 0.00 | 1.63 | 0.00 | 0.98 | 13.88 | 251.13 | -32.60 | 68.08 | 0.5659 | -533.0 | -365.9 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 14.97 | 250.88 | -32.85 | 66.39 | 0.5741 | -602.0 | -542.3 | |
| 0.00 | 5.40 | 0.00 | 3.26 | 14.39 | 250.79 | -32.93 | 67.40 | 0.5726 | -689.0 | -631.5 | |
| 0.00 | 1.80 | 0.00 | 1.07 | 10.54 | 251.20 | -32.53 | 73.86 | 0.5525 | 624.0 | 498.2 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 13.88 | 250.70 | -33.03 | 68.32 | 0.5717 | -604.0 | -483.9 | |
| 0.34 | 4.03 | 0.21 | 2.43 | 12.96 | 250.44 | -33.29 | 69.98 | 0.5715 | 931.5 | 543.5 | |
| 0.00 | 1.37 | 0.00 | 0.84 | 14.62 | 249.84 | -33.89 | 67.51 | 0.5862 | 831.0 | 690.3 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 14.43 | 249.46 | -34.27 | 68.00 | 0.5903 | 784.0 | 722.5 | |
| 4.72 | 6.52 | 2.90 | 4.00 | 14.76 | 249.33 | -34.40 | 67.53 | 0.5934 | 895.4 | 657.0 | |
| 0.00 | 1.71 | 0.00 | 1.06 | 14.69 | 249.04 | -34.68 | 67.78 | 0.5969 | 510.0 | 414.8 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 14.89 | 248.29 | -35.43 | 67.81 | 0.6074 | 728.0 | 641.4 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 15.61 | 247.81 | -35.92 | 66.90 | 0.6165 | 750.0 | 634.3 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 14.73 | 247.91 | -35.82 | 68.24 | 0.6117 | 586.0 | 460.0 | |
| 0.00 | 1.37 | 0.00 | 0.89 | 16.88 | 245.36 | -38.37 | 66.10 | 0.6520 | 794.0 | 621.3 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 19.33 | 244.14 | -39.58 | 63.13 | 0.6764 | 550.0 | 498.5 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 17.22 | 243.95 | -39.78 | 66.21 | 0.6702 | 592.0 | 539.4 | |
| 0.00 | 1.37 | 0.00 | 0.95 | 19.53 | 241.96 | -41.76 | 63.81 | 0.7019 | 615.0 | 553.9 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 19.58 | 241.61 | -42.12 | 63.88 | 0.7061 | 379.0 | 340.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
