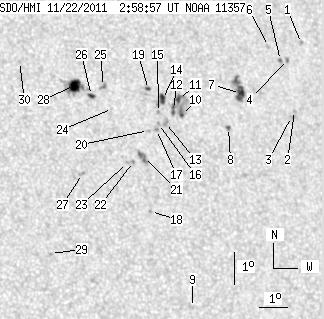

SDO HMI 2011-11-22 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.01 | 124.04 | 21.60 | 74.27 | 17.79 | 314.01 | 30.83 | 299.60 | 0.5628 | -363.3 | -295.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.10 | 19.58 | 319.59 | 36.41 | 298.82 | 0.6406 | -742.0 | -569.5 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 17.52 | 318.81 | 35.63 | 296.18 | 0.6213 | -549.0 | -439.7 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 17.34 | 318.66 | 35.48 | 295.98 | 0.6186 | -761.0 | -565.4 | |
| 0.00 | 2.40 | 0.00 | 1.53 | 19.09 | 318.92 | 35.74 | 298.48 | 0.6303 | -664.0 | -534.8 | |
| 1.37 | 2.14 | 0.87 | 1.36 | 19.07 | 318.64 | 35.46 | 298.60 | 0.6268 | -739.8 | -812.3 | |
| 0.00 | 1.54 | 0.00 | 0.98 | 19.51 | 318.29 | 35.11 | 299.46 | 0.6249 | -721.0 | -604.6 | |
| 9.26 | 18.09 | 5.72 | 11.18 | 18.08 | 316.89 | 33.71 | 298.11 | 0.6004 | -854.6 | -217.8 | |
| 1.37 | 1.89 | 0.84 | 1.15 | 17.04 | 316.23 | 33.05 | 296.88 | 0.5867 | -741.4 | -591.0 | |
| 0.00 | 0.34 | 0.00 | 0.20 | 11.62 | 314.06 | 30.88 | 288.80 | 0.5331 | -706.0 | -685.8 | |
| 1.11 | 24.61 | 0.67 | 14.81 | 17.44 | 314.61 | 31.44 | 298.53 | 0.5685 | 293.2 | -419.4 | |
| 2.66 | -10.00 | 1.60 | -10.00 | 17.94 | 314.57 | 31.39 | 299.36 | 0.5707 | -749.4 | 999999 | |
| 1.89 | -10.00 | 1.13 | -10.00 | 17.63 | 314.32 | 31.14 | 299.03 | 0.5659 | -903.4 | 999999 | |
| 0.00 | 3.94 | 0.00 | 2.35 | 17.24 | 313.96 | 30.78 | 298.63 | 0.5590 | -794.0 | -687.4 | |
| 4.12 | 9.09 | 2.46 | 5.43 | 17.95 | 313.99 | 30.81 | 299.77 | 0.5635 | -902.9 | -678.3 | |
| 0.00 | 1.46 | 0.00 | 0.87 | 17.55 | 313.76 | 30.58 | 299.28 | 0.5584 | -869.0 | -664.6 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 17.21 | 313.70 | 30.52 | 298.76 | 0.5556 | -871.0 | -674.3 | |
| 0.00 | 2.06 | 0.00 | 1.22 | 17.03 | 313.60 | 30.42 | 298.53 | 0.5532 | -838.0 | -575.0 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 14.54 | 312.97 | 29.79 | 294.66 | 0.5313 | -746.0 | -633.9 | |
| 1.54 | 2.14 | 0.92 | 1.28 | 18.26 | 313.54 | 30.36 | 300.60 | 0.5598 | -676.5 | -725.7 | |
| 0.00 | 1.46 | 0.00 | 0.86 | 17.00 | 313.30 | 30.12 | 298.69 | 0.5493 | -707.0 | -598.5 | |
| 0.00 | 7.12 | 0.00 | 4.18 | 16.18 | 312.98 | 29.80 | 297.52 | 0.5404 | -902.0 | -801.5 | |
| 0.00 | 1.29 | 0.00 | 0.75 | 16.07 | 312.61 | 29.43 | 297.58 | 0.5348 | -920.0 | -775.6 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 16.04 | 312.39 | 29.21 | 297.69 | 0.5318 | -676.0 | -520.9 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 17.70 | 312.14 | 28.96 | 300.71 | 0.5387 | -759.0 | -567.3 | |
| 0.00 | 3.43 | 0.00 | 2.02 | 18.38 | 311.95 | 28.77 | 302.00 | 0.5407 | 778.0 | 482.5 | |
| 2.57 | 3.00 | 1.50 | 1.75 | 18.11 | 311.47 | 28.29 | 301.93 | 0.5329 | 553.9 | 506.4 | |
| 0.00 | 2.14 | 0.00 | 1.23 | 15.73 | 310.77 | 27.59 | 298.34 | 0.5085 | 690.0 | 488.8 | |
| 10.12 | 25.12 | 5.89 | 14.62 | 18.43 | 310.92 | 27.75 | 302.92 | 0.5282 | 998.4 | 403.1 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 13.32 | 309.35 | 26.17 | 294.88 | 0.4751 | 723.0 | 623.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 19.20 | 309.13 | 25.95 | 305.83 | 0.5117 | -769.0 | -592.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
