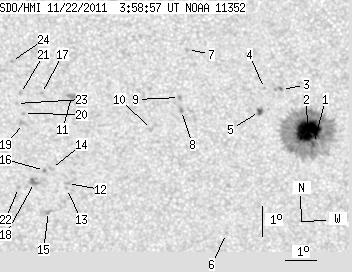

SDO HMI 2011-11-22 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.02 | 241.70 | 21.62 | 134.27 | -24.62 | 283.54 | 0.91 | 181.90 | 0.4530 | 367.8 | 188.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.97 | 196.87 | 1.10 | 109.26 | -25.01 | 284.97 | 2.33 | 184.64 | 0.4582 | 535.0 | 358.8 | |
| 33.36 | -1.00 | 18.50 | -1.00 | -24.58 | 284.76 | 2.13 | 184.32 | 0.4512 | 1349.3 | 999999 | |
| 1.03 | 2.92 | 0.56 | 1.60 | -23.23 | 283.90 | 1.27 | 182.73 | 0.4292 | 744.2 | 775.2 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -23.19 | 283.35 | 0.72 | 181.56 | 0.4283 | 808.0 | 527.2 | |
| 2.66 | 3.26 | 1.46 | 1.80 | -23.95 | 283.20 | 0.56 | 181.18 | 0.4402 | 742.9 | 664.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -28.05 | 282.11 | -0.52 | 179.08 | 0.5035 | 635.0 | 511.6 | |
| 0.00 | 1.80 | 0.00 | 0.98 | -21.92 | 280.89 | -1.74 | 176.03 | 0.4089 | 782.0 | 620.5 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -23.92 | 280.67 | -1.96 | 175.91 | 0.4407 | -891.0 | -802.4 | |
| 0.00 | 2.14 | 0.00 | 1.18 | -23.49 | 280.61 | -2.02 | 175.71 | 0.4340 | -898.0 | -730.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -24.55 | 279.68 | -2.95 | 174.03 | 0.4519 | -791.0 | -633.7 | |
| 0.00 | 4.20 | 0.00 | 2.32 | -23.47 | 277.12 | -5.51 | 168.43 | 0.4413 | -1097.0 | -813.0 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -26.36 | 276.85 | -5.78 | 169.26 | 0.4860 | -871.0 | -762.7 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -26.53 | 276.81 | -5.82 | 169.25 | 0.4886 | -634.0 | -536.9 | |
| 0.00 | 1.97 | 0.00 | 1.11 | -25.86 | 276.35 | -6.28 | 168.11 | 0.4800 | -745.0 | -574.3 | |
| 0.00 | 2.40 | 0.00 | 1.37 | -27.31 | 276.17 | -6.47 | 168.46 | 0.5021 | -774.0 | -596.9 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -25.93 | 276.11 | -6.52 | 167.71 | 0.4817 | -982.0 | -836.8 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -23.37 | 276.15 | -6.48 | 166.41 | 0.4431 | -882.0 | -658.2 | |
| 0.00 | 6.09 | 0.00 | 3.45 | -26.33 | 275.76 | -6.88 | 167.27 | 0.4890 | -960.0 | -782.2 | |
| 0.00 | 3.60 | 0.00 | 2.01 | -24.36 | 275.51 | -7.12 | 165.74 | 0.4605 | -698.0 | -477.7 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -24.03 | 275.53 | -7.10 | 165.58 | 0.4555 | -863.0 | -710.9 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.37 | 275.47 | -7.17 | 165.05 | 0.4458 | -797.0 | -660.2 | |
| 0.00 | 1.46 | 0.00 | 0.83 | -26.50 | 275.21 | -7.42 | 166.40 | 0.4934 | -629.0 | -563.1 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -23.70 | 275.32 | -7.31 | 164.97 | 0.4514 | -630.0 | -482.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -22.33 | 275.23 | -7.40 | 163.88 | 0.4311 | -827.0 | -661.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
