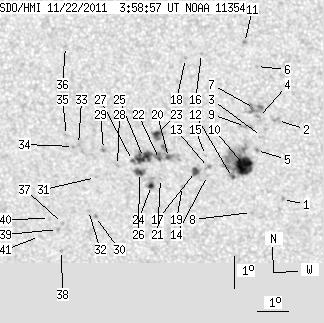

SDO HMI 2011-11-22 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.22 | 192.57 | 28.51 | 104.96 | -16.51 | 266.24 | -16.40 | 139.64 | 0.4189 | -52.3 | -115.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.84 | -17.80 | 268.99 | -13.64 | 146.43 | 0.4079 | 936.0 | 788.6 | |
| 0.00 | 3.26 | 0.00 | 1.74 | -15.33 | 269.01 | -13.62 | 142.65 | 0.3760 | 850.0 | 743.7 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -15.83 | 268.47 | -14.16 | 142.42 | 0.3877 | 642.0 | 568.6 | |
| 0.00 | 3.26 | 0.00 | 1.74 | -15.24 | 268.41 | -14.22 | 141.33 | 0.3809 | -40.0 | 48.6 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -16.27 | 268.28 | -14.36 | 142.76 | 0.3950 | 997.0 | 898.1 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -13.67 | 268.45 | -14.18 | 138.57 | 0.3613 | 719.0 | 552.1 | |
| 0.00 | 10.98 | 0.00 | 5.87 | -14.96 | 268.31 | -14.33 | 140.64 | 0.3786 | -507.0 | -683.1 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -18.22 | 267.96 | -14.67 | 145.12 | 0.4226 | 533.0 | 488.4 | |
| 0.00 | 4.97 | 0.00 | 2.67 | -15.53 | 267.98 | -14.65 | 140.98 | 0.3887 | 866.0 | 722.3 | |
| 21.35 | 64.05 | 11.56 | 34.68 | -16.74 | 267.86 | -14.78 | 142.73 | 0.4050 | 1141.0 | 433.1 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -12.93 | 268.12 | -14.51 | 136.50 | 0.3563 | 1018.0 | 869.7 | |
| 1.54 | -10.00 | 0.84 | -10.00 | -17.12 | 267.44 | -15.19 | 142.56 | 0.4137 | 422.3 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.49 | -16.82 | 266.70 | -15.94 | 140.77 | 0.4174 | 192.0 | 154.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -17.07 | 266.64 | -15.99 | 141.07 | 0.4209 | 266.0 | 180.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -16.44 | 266.63 | -16.00 | 140.06 | 0.4136 | 180.0 | 199.2 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -13.28 | 266.74 | -15.89 | 134.63 | 0.3760 | 814.0 | 641.8 | |
| 4.54 | 7.29 | 2.48 | 3.98 | -16.95 | 266.27 | -16.37 | 140.24 | 0.4233 | -1020.6 | -526.0 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -13.44 | 266.23 | -16.41 | 134.03 | 0.3838 | 855.0 | 572.2 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -17.42 | 265.80 | -16.83 | 140.21 | 0.4336 | 669.0 | 531.9 | |
| 1.80 | 40.56 | 0.99 | 22.25 | -16.52 | 265.43 | -17.20 | 138.17 | 0.4269 | -973.9 | -818.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -17.18 | 265.11 | -17.52 | 138.72 | 0.4378 | -268.0 | -262.2 | |
| 0.69 | -20.00 | 0.38 | -20.00 | -16.58 | 265.13 | -17.50 | 137.80 | 0.4308 | -917.2 | 999999 | |
| 3.60 | 9.60 | 1.97 | 5.24 | -15.80 | 265.11 | -17.52 | 136.46 | 0.4224 | -1059.0 | -723.2 | |
| 2.23 | 7.80 | 1.23 | 4.31 | -17.40 | 264.79 | -17.84 | 138.57 | 0.4436 | 536.0 | -128.3 | |
| 10.72 | -20.00 | 5.89 | -20.00 | -16.53 | 264.62 | -18.01 | 136.90 | 0.4357 | -1061.5 | 999999 | |
| 4.29 | 6.26 | 2.37 | 3.45 | -17.00 | 264.44 | -18.19 | 137.39 | 0.4428 | -819.6 | -739.4 | |
| 1.46 | -20.00 | 0.80 | -20.00 | -16.62 | 264.25 | -18.38 | 136.50 | 0.4407 | -693.0 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -16.79 | 263.75 | -18.88 | 136.00 | 0.4480 | -771.0 | -597.9 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -16.29 | 263.34 | -19.29 | 134.59 | 0.4472 | -906.0 | -772.9 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -18.40 | 262.84 | -19.79 | 137.23 | 0.4751 | -880.0 | -757.0 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -17.17 | 262.98 | -19.65 | 135.52 | 0.4604 | -787.0 | -646.0 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -18.22 | 262.63 | -20.00 | 136.65 | 0.4753 | -786.0 | -709.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -16.15 | 262.54 | -20.10 | 133.21 | 0.4547 | -830.0 | -715.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -16.21 | 262.37 | -20.27 | 133.08 | 0.4574 | -617.0 | -589.6 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -15.87 | 262.17 | -20.46 | 132.25 | 0.4562 | -673.0 | -447.6 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -13.12 | 262.40 | -20.23 | 127.61 | 0.4269 | -905.0 | -670.3 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -18.64 | 261.71 | -20.92 | 136.05 | 0.4895 | -741.0 | -587.4 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -19.50 | 261.56 | -21.07 | 137.12 | 0.5000 | -683.0 | -515.0 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -18.83 | 261.52 | -21.11 | 136.08 | 0.4935 | -770.0 | -632.2 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -18.49 | 261.30 | -21.34 | 135.27 | 0.4923 | -561.0 | -393.1 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -19.06 | 260.88 | -21.75 | 135.60 | 0.5026 | -587.0 | -502.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
