SDO HMI 2011-11-22 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.20 | 370.07 | 38.72 | 216.99 | 14.05 | 252.29 | -30.34 | 66.51 | 0.5363 | -412.1 | -352.9 | |
|
previous
or next observation for the same group /

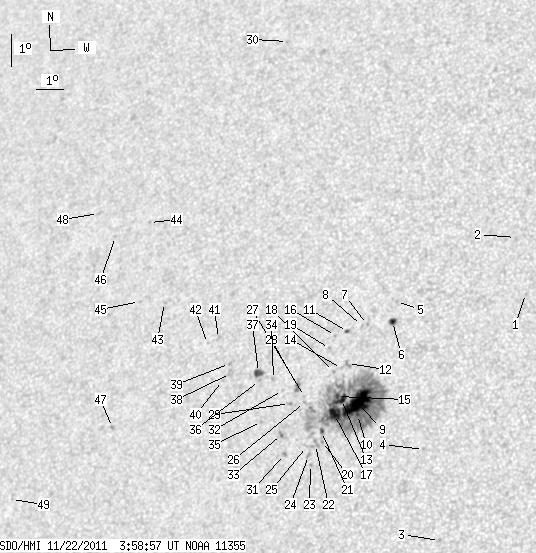

back to the solar disc SDO HMI 2011-11-22 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.14 | 17.36 | 258.34 | -24.29 | 55.75 | 0.4769 | -697.0 | -580.3 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 19.09 | 257.74 | -24.89 | 53.33 | 0.4980 | -699.0 | -640.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 9.86 | 256.30 | -26.33 | 72.29 | 0.4607 | -768.0 | -477.7 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 12.58 | 255.49 | -27.15 | 67.26 | 0.4849 | -829.0 | -693.6 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 17.05 | 253.92 | -28.72 | 60.19 | 0.5315 | -783.0 | -606.4 | |
| 3.00 | 3.52 | 1.75 | 2.05 | 16.44 | 253.88 | -28.76 | 61.28 | 0.5282 | 780.3 | 774.0 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 16.33 | 253.01 | -29.62 | 62.09 | 0.5389 | -897.0 | -726.4 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 16.30 | 252.80 | -29.83 | 62.29 | 0.5414 | -569.0 | -497.0 | |
| 35.84 | 294.19 | 20.84 | 171.47 | 13.96 | 253.02 | -29.61 | 66.25 | 0.5260 | -1223.2 | -438.4 | |
| 0.26 | -9.00 | 0.15 | -9.00 | 13.59 | 253.07 | -29.56 | 66.88 | 0.5235 | -1158.3 | 999999 | |
| 1.20 | 1.80 | 0.71 | 1.06 | 16.11 | 252.33 | -30.30 | 62.93 | 0.5465 | 481.4 | 388.0 | |
| 0.00 | 3.43 | 0.00 | 2.01 | 15.13 | 252.49 | -30.14 | 64.51 | 0.5391 | -622.0 | -540.5 | |
| 6.09 | -9.00 | 3.56 | -9.00 | 14.04 | 252.45 | -30.18 | 66.46 | 0.5342 | -854.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 14.98 | 252.30 | -30.33 | 64.90 | 0.5408 | -522.0 | -443.1 | |
| 1.89 | -9.00 | 1.11 | -9.00 | 14.13 | 252.29 | -30.34 | 66.40 | 0.5367 | -697.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 15.98 | 251.93 | -30.71 | 63.42 | 0.5511 | 394.0 | 214.0 | |
| 10.98 | -9.00 | 6.42 | -9.00 | 13.58 | 252.27 | -30.37 | 67.38 | 0.5345 | -927.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 14.88 | 252.04 | -30.60 | 65.23 | 0.5439 | -629.0 | -493.2 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 15.58 | 251.78 | -30.85 | 64.19 | 0.5509 | -733.0 | -540.8 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 12.76 | 251.96 | -30.68 | 69.02 | 0.5351 | -629.0 | -609.9 | |
| 1.37 | 3.09 | 0.80 | 1.81 | 13.06 | 251.88 | -30.75 | 68.52 | 0.5374 | -607.6 | -394.5 | |
| 0.00 | 4.46 | 0.00 | 2.62 | 12.66 | 251.72 | -30.91 | 69.32 | 0.5379 | -609.0 | -524.7 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 12.06 | 251.62 | -31.01 | 70.45 | 0.5368 | 843.0 | 692.0 | |
| 0.00 | 2.32 | 0.00 | 1.36 | 12.33 | 251.52 | -31.12 | 70.02 | 0.5393 | -561.0 | -374.9 | |
| 0.00 | 1.97 | 0.00 | 1.16 | 12.60 | 251.41 | -31.22 | 69.59 | 0.5419 | -463.0 | -301.0 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 13.92 | 251.15 | -31.48 | 67.40 | 0.5512 | -485.0 | -340.1 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 14.10 | 251.12 | -31.51 | 67.11 | 0.5524 | -443.0 | -361.1 | |
| 0.00 | 6.26 | 0.00 | 3.73 | 14.43 | 250.82 | -31.82 | 66.71 | 0.5580 | -818.0 | -622.8 | |
| 0.00 | 2.32 | 0.00 | 1.38 | 13.88 | 250.61 | -32.02 | 67.76 | 0.5582 | -457.0 | -309.3 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 25.12 | 247.90 | -34.74 | 52.37 | 0.6538 | -738.0 | -619.0 | |
| 0.00 | 1.97 | 0.00 | 1.17 | 12.34 | 250.66 | -31.97 | 70.41 | 0.5512 | 812.0 | 623.7 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 14.27 | 250.30 | -32.33 | 67.27 | 0.5642 | 265.0 | 210.7 | |
| 0.00 | 2.14 | 0.00 | 1.28 | 12.94 | 250.47 | -32.16 | 69.46 | 0.5562 | 917.0 | 778.1 | |
| 0.00 | 1.20 | 0.00 | 0.72 | 14.60 | 249.92 | -32.71 | 66.92 | 0.5707 | 780.0 | 626.1 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 13.32 | 249.69 | -32.94 | 69.19 | 0.5683 | 193.0 | 235.2 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 14.56 | 249.41 | -33.22 | 67.25 | 0.5772 | 863.0 | 716.2 | |
| 5.57 | 5.92 | 3.38 | 3.59 | 14.80 | 249.34 | -33.30 | 66.89 | 0.5793 | 846.6 | 767.5 | |
| 0.00 | 4.37 | 0.00 | 2.68 | 14.75 | 248.31 | -34.32 | 67.49 | 0.5925 | 519.0 | 446.6 | |
| 0.00 | 1.37 | 0.00 | 0.84 | 15.05 | 248.22 | -34.41 | 67.05 | 0.5950 | 703.0 | 623.8 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 14.53 | 248.05 | -34.58 | 67.96 | 0.5950 | 615.0 | 485.7 | |
| 0.00 | 2.06 | 0.00 | 1.28 | 15.81 | 247.66 | -34.97 | 66.13 | 0.6054 | 698.0 | 583.7 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 15.64 | 247.28 | -35.35 | 66.57 | 0.6096 | 568.0 | 425.2 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 16.86 | 245.37 | -37.27 | 65.61 | 0.6386 | 811.0 | 695.0 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 19.31 | 244.15 | -38.48 | 62.62 | 0.6637 | 599.0 | 500.6 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 16.87 | 244.38 | -38.25 | 66.04 | 0.6506 | 688.0 | 506.0 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 18.85 | 242.90 | -39.73 | 63.86 | 0.6762 | 585.0 | 520.2 | |
| 0.00 | 1.54 | 0.00 | 0.99 | 13.03 | 244.14 | -38.49 | 71.91 | 0.6402 | 659.0 | 543.9 | |
| 0.00 | 0.60 | 0.00 | 0.41 | 19.54 | 241.99 | -40.64 | 63.29 | 0.6894 | 602.0 | 532.3 | |
| 0.00 | 0.43 | 0.00 | 0.29 | 10.78 | 240.52 | -42.11 | 76.27 | 0.6804 | 492.0 | 398.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
