SDO HMI 2011-11-22 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.64 | 65.68 | 11.73 | 34.98 | 8.33 | 262.41 | -19.68 | 70.85 | 0.3510 | -578.0 | -363.4 | |
|
previous
or next observation for the same group /

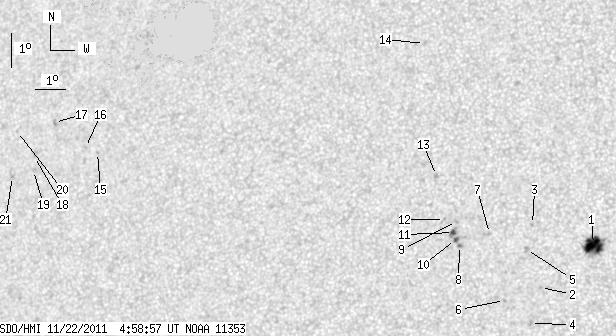

back to the solar disc SDO HMI 2011-11-22 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.61 | 30.35 | 9.60 | 15.66 | 7.75 | 266.80 | -15.29 | 68.90 | 0.2813 | -1269.8 | -734.5 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 6.45 | 265.20 | -16.89 | 74.77 | 0.3005 | -963.0 | -758.7 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 8.32 | 264.88 | -17.21 | 69.21 | 0.3145 | 747.0 | 557.8 | |
| 0.00 | 2.06 | 0.00 | 1.07 | 5.38 | 264.92 | -17.16 | 78.46 | 0.3012 | -995.0 | -733.6 | |
| 0.00 | 3.00 | 0.00 | 1.56 | 7.58 | 264.72 | -17.37 | 71.63 | 0.3131 | -822.0 | -703.3 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 6.06 | 264.09 | -18.00 | 76.83 | 0.3169 | -830.0 | -669.3 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 8.04 | 263.54 | -18.55 | 71.32 | 0.3340 | -767.0 | -623.1 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 7.67 | 262.61 | -19.48 | 73.12 | 0.3469 | -980.0 | -841.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 8.39 | 262.47 | -19.61 | 71.25 | 0.3522 | -845.0 | -642.3 | |
| 1.97 | 7.72 | 1.04 | 4.08 | 7.85 | 262.47 | -19.62 | 72.73 | 0.3498 | -1000.6 | -776.0 | |
| 2.06 | -10.00 | 1.09 | -10.00 | 8.06 | 262.40 | -19.69 | 72.21 | 0.3519 | -1024.3 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 8.44 | 262.09 | -20.00 | 71.42 | 0.3584 | -689.0 | -567.4 | |
| 0.00 | 2.06 | 0.00 | 1.10 | 9.75 | 261.76 | -20.33 | 68.27 | 0.3702 | -887.0 | -688.5 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 13.71 | 261.06 | -21.03 | 59.58 | 0.4060 | -784.0 | -526.9 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 10.27 | 250.34 | -31.75 | 74.01 | 0.5408 | 870.0 | 651.4 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 10.41 | 249.89 | -32.19 | 73.92 | 0.5475 | 722.0 | 574.3 | |
| 0.00 | 2.23 | 0.00 | 1.34 | 11.14 | 248.69 | -33.40 | 73.11 | 0.5666 | 779.0 | 605.1 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 10.10 | 248.09 | -33.99 | 75.11 | 0.5717 | 747.0 | 582.4 | |
| 0.00 | 2.14 | 0.00 | 1.29 | 9.69 | 248.11 | -33.98 | 75.83 | 0.5704 | 575.0 | 555.5 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 10.84 | 247.38 | -34.71 | 74.10 | 0.5837 | 582.0 | 493.0 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 9.49 | 247.36 | -34.72 | 76.39 | 0.5803 | 703.0 | 574.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
