SDO HMI 2011-11-22 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.79 | 199.45 | 28.19 | 108.19 | -16.40 | 266.57 | -15.52 | 140.94 | 0.4085 | -6.8 | -14.1 | |
|
previous
or next observation for the same group /

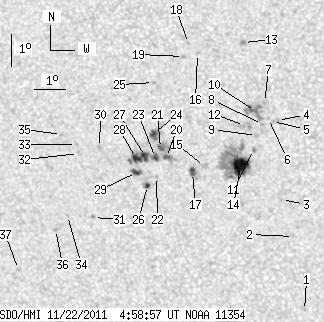

back to the solar disc SDO HMI 2011-11-22 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.38 | -21.33 | 269.50 | -12.58 | 152.86 | 0.4467 | 690.0 | 520.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -18.97 | 269.34 | -12.74 | 149.75 | 0.4157 | 778.0 | 578.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -17.80 | 269.05 | -13.04 | 147.60 | 0.4026 | 862.0 | 666.9 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -15.33 | 269.09 | -12.99 | 143.92 | 0.3698 | 913.0 | 683.4 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -15.36 | 268.93 | -13.15 | 143.65 | 0.3718 | 803.0 | 699.1 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -15.27 | 268.81 | -13.27 | 143.25 | 0.3718 | 693.0 | 518.8 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -14.78 | 268.72 | -13.37 | 142.21 | 0.3664 | -854.0 | -712.8 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -15.46 | 268.61 | -13.47 | 143.15 | 0.3761 | 843.0 | 648.3 | |
| 0.00 | 2.14 | 0.00 | 1.15 | -15.80 | 268.40 | -13.69 | 143.29 | 0.3826 | 766.0 | 634.7 | |
| 0.00 | 16.03 | 0.00 | 8.55 | -15.06 | 268.42 | -13.67 | 142.08 | 0.3730 | -719.0 | -473.4 | |
| 0.00 | 1.97 | 0.00 | 1.06 | -16.24 | 268.27 | -13.81 | 143.75 | 0.3893 | 1070.0 | 876.7 | |
| 0.00 | 6.43 | 0.00 | 3.44 | -15.50 | 268.04 | -14.05 | 142.08 | 0.3822 | 627.0 | 586.4 | |
| 0.00 | 2.92 | 0.00 | 1.54 | -12.94 | 268.17 | -13.92 | 137.67 | 0.3496 | 1044.0 | 764.2 | |
| 19.89 | 71.60 | 10.74 | 38.68 | -16.78 | 267.82 | -14.27 | 143.72 | 0.4004 | 1135.6 | 422.0 | |
| 0.00 | 4.12 | 0.00 | 2.24 | -16.79 | 266.67 | -15.42 | 141.62 | 0.4118 | -32.0 | 88.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -13.29 | 266.70 | -15.38 | 135.53 | 0.3701 | 726.0 | 616.4 | |
| 4.12 | 6.60 | 2.24 | 3.60 | -16.98 | 266.26 | -15.82 | 141.21 | 0.4181 | -1057.5 | -605.9 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -12.98 | 266.44 | -15.65 | 134.45 | 0.3698 | 786.0 | 603.5 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -13.38 | 266.25 | -15.83 | 134.91 | 0.3764 | 563.0 | 479.9 | |
| 3.17 | 43.22 | 1.73 | 23.62 | -16.52 | 265.47 | -16.62 | 139.12 | 0.4208 | -922.2 | -690.6 | |
| 2.74 | -20.00 | 1.50 | -20.00 | -16.24 | 265.30 | -16.79 | 138.38 | 0.4193 | -992.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -17.12 | 265.09 | -17.00 | 139.45 | 0.4316 | -672.0 | -446.8 | |
| 2.92 | -20.00 | 1.59 | -20.00 | -16.52 | 265.11 | -16.97 | 138.54 | 0.4245 | -1040.7 | 999999 | |
| 3.09 | 8.32 | 1.68 | 4.53 | -15.77 | 265.11 | -16.97 | 137.29 | 0.4160 | -1006.2 | -849.9 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -14.19 | 265.24 | -16.84 | 134.70 | 0.3969 | 710.0 | 604.4 | |
| 1.97 | 3.43 | 1.09 | 1.89 | -17.40 | 264.77 | -17.32 | 139.39 | 0.4382 | 548.2 | 379.4 | |
| 4.63 | -20.00 | 2.53 | -20.00 | -16.50 | 264.79 | -17.30 | 137.97 | 0.4276 | -1153.0 | 999999 | |
| 5.57 | -20.00 | 3.06 | -20.00 | -16.56 | 264.49 | -17.59 | 137.60 | 0.4315 | -1019.3 | 999999 | |
| 3.69 | 4.89 | 2.03 | 2.69 | -17.00 | 264.45 | -17.64 | 138.24 | 0.4369 | -870.1 | -752.2 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -16.23 | 263.32 | -18.76 | 135.25 | 0.4406 | -910.0 | -735.9 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -18.43 | 262.89 | -19.20 | 138.11 | 0.4692 | -874.0 | -700.1 | |
| 0.00 | 2.32 | 0.00 | 1.28 | -16.43 | 262.62 | -19.47 | 134.55 | 0.4505 | -714.0 | -620.7 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -16.15 | 262.58 | -19.51 | 134.03 | 0.4480 | -842.0 | -660.0 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -18.38 | 262.03 | -20.05 | 136.82 | 0.4775 | -742.0 | -481.5 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -15.84 | 262.12 | -19.97 | 132.87 | 0.4501 | -727.0 | -575.4 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -18.83 | 261.57 | -20.51 | 136.87 | 0.4871 | -718.0 | -610.3 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -20.12 | 260.15 | -21.94 | 136.89 | 0.5154 | -642.0 | -498.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
