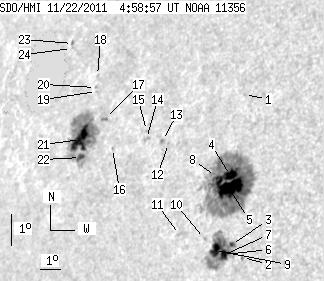

SDO HMI 2011-11-22 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.06 | 417.41 | 60.97 | 332.69 | 14.63 | 231.48 | -50.60 | 72.83 | 0.7832 | -319.4 | -180.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.66 | 17.31 | 233.78 | -48.30 | 68.92 | 0.7663 | -568.0 | -508.4 | |
| 0.00 | 1.46 | 0.00 | 1.07 | 12.37 | 235.14 | -46.95 | 75.06 | 0.7411 | 334.0 | 272.1 | |
| 1.63 | 63.54 | 1.21 | 47.65 | 12.75 | 234.55 | -47.53 | 74.67 | 0.7484 | -876.3 | -290.6 | |
| 7.55 | 229.72 | 5.72 | 174.06 | 14.83 | 233.94 | -48.15 | 72.08 | 0.7591 | -924.0 | -407.3 | |
| 29.24 | -4.00 | 22.11 | -4.00 | 14.46 | 233.95 | -48.13 | 72.55 | 0.7582 | -1094.0 | 999999 | |
| 2.57 | -3.00 | 1.92 | -3.00 | 12.44 | 234.31 | -47.77 | 75.13 | 0.7505 | 371.3 | 999999 | |
| 2.06 | -3.00 | 1.54 | -3.00 | 12.41 | 234.23 | -47.86 | 75.19 | 0.7514 | -498.8 | 999999 | |
| 0.51 | -4.00 | 0.39 | -4.00 | 14.78 | 233.26 | -48.83 | 72.29 | 0.7664 | -449.5 | 999999 | |
| 8.40 | -3.00 | 6.33 | -3.00 | 12.55 | 233.83 | -48.26 | 75.08 | 0.7561 | -689.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.78 | 12.90 | 233.28 | -48.81 | 74.73 | 0.7627 | -484.0 | -404.3 | |
| 0.00 | 2.14 | 0.00 | 1.67 | 12.99 | 232.08 | -50.01 | 74.83 | 0.7758 | 517.0 | 400.0 | |
| 0.00 | 0.86 | 0.00 | 0.70 | 15.72 | 230.69 | -51.40 | 71.65 | 0.7949 | -455.0 | -398.0 | |
| 0.00 | 1.11 | 0.00 | 0.91 | 15.81 | 230.36 | -51.73 | 71.62 | 0.7983 | -423.0 | -443.5 | |
| 0.00 | 2.83 | 0.00 | 2.36 | 15.85 | 229.53 | -52.55 | 71.73 | 0.8065 | -524.0 | -433.1 | |
| 0.00 | 1.03 | 0.00 | 0.86 | 16.09 | 229.44 | -52.64 | 71.45 | 0.8078 | -447.0 | -400.0 | |
| 0.00 | 1.20 | 0.00 | 1.04 | 15.49 | 227.90 | -54.18 | 72.46 | 0.8217 | 550.0 | 445.6 | |
| 1.20 | 2.66 | 1.06 | 2.35 | 16.39 | 227.17 | -54.92 | 71.51 | 0.8300 | 523.0 | 622.0 | |
| 0.00 | 1.11 | 0.00 | 1.01 | 17.69 | 226.14 | -55.94 | 70.16 | 0.8412 | -508.0 | -425.8 | |
| 0.00 | 0.77 | 0.00 | 0.70 | 17.20 | 226.32 | -55.77 | 70.71 | 0.8389 | -480.0 | -410.7 | |
| 0.00 | 1.20 | 0.00 | 1.09 | 17.32 | 226.21 | -55.88 | 70.58 | 0.8401 | -472.0 | -451.9 | |
| 19.04 | 103.58 | 17.22 | 93.56 | 15.72 | 226.08 | -56.00 | 72.50 | 0.8390 | 745.2 | 326.0 | |
| 3.86 | -21.00 | 3.47 | -21.00 | 15.17 | 226.31 | -55.78 | 73.11 | 0.8362 | 573.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.48 | 18.63 | 224.23 | -57.85 | 69.41 | 0.8591 | -489.0 | -466.9 | |
| 0.00 | 0.77 | 0.00 | 0.74 | 18.48 | 224.26 | -57.83 | 69.59 | 0.8587 | -613.0 | -515.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
