SDO HMI 2011-11-22 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.12 | 127.76 | 18.79 | 77.34 | 17.60 | 314.01 | 31.92 | 298.55 | 0.5756 | -203.1 | -265.9 | |
|
previous
or next observation for the same group /

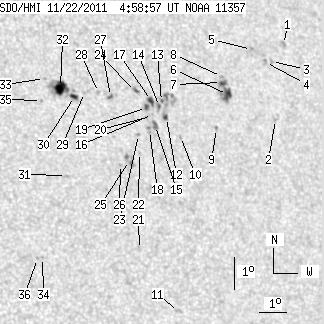

back to the solar disc SDO HMI 2011-11-22 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.83 | 0.00 | 1.85 | 19.64 | 319.58 | 37.49 | 298.35 | 0.6537 | -638.0 | -454.8 | |
| 0.00 | 2.40 | 0.00 | 1.53 | 17.33 | 318.68 | 36.59 | 295.42 | 0.6324 | -760.0 | -557.8 | |
| 0.00 | 1.29 | 0.00 | 0.83 | 19.12 | 318.96 | 36.88 | 297.92 | 0.6440 | -672.0 | -514.5 | |
| 0.00 | 2.14 | 0.00 | 1.38 | 19.09 | 318.72 | 36.64 | 298.01 | 0.6411 | -885.0 | -726.7 | |
| 0.00 | 1.80 | 0.00 | 1.16 | 19.51 | 318.28 | 36.20 | 298.85 | 0.6379 | -766.0 | -568.9 | |
| 6.00 | 16.64 | 3.77 | 10.43 | 18.14 | 317.02 | 34.93 | 297.51 | 0.6159 | -885.2 | -625.9 | |
| 1.11 | -6.00 | 0.70 | -6.00 | 18.51 | 316.88 | 34.79 | 298.16 | 0.6160 | 312.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.86 | 18.69 | 316.92 | 34.84 | 298.41 | 0.6175 | 385.0 | 267.8 | |
| 0.00 | 1.46 | 0.00 | 0.90 | 17.10 | 316.38 | 34.29 | 296.27 | 0.6028 | -849.0 | -649.2 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 16.88 | 314.99 | 32.90 | 296.72 | 0.5842 | 570.0 | 411.5 | |
| 0.00 | 3.52 | 0.00 | 2.08 | 11.58 | 314.06 | 31.97 | 288.26 | 0.5484 | -702.0 | -564.9 | |
| 1.29 | 20.07 | 0.78 | 12.24 | 17.47 | 314.59 | 32.51 | 297.91 | 0.5823 | 370.2 | -437.7 | |
| 0.86 | -12.00 | 0.52 | -12.00 | 17.97 | 314.51 | 32.42 | 298.75 | 0.5839 | -720.5 | 999999 | |
| 1.37 | 3.26 | 0.83 | 1.98 | 17.81 | 314.40 | 32.32 | 298.57 | 0.5818 | -821.0 | -606.5 | |
| 0.00 | 4.20 | 0.00 | 2.54 | 17.23 | 314.14 | 32.05 | 297.81 | 0.5753 | -894.0 | -726.4 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 17.57 | 314.10 | 32.01 | 298.38 | 0.5766 | -556.0 | -562.6 | |
| 3.26 | 6.95 | 1.98 | 4.21 | 18.00 | 314.15 | 32.06 | 299.04 | 0.5796 | -859.7 | -730.6 | |
| 0.00 | 2.40 | 0.00 | 1.45 | 17.08 | 313.89 | 31.81 | 297.72 | 0.5713 | -621.0 | -757.3 | |
| 2.14 | -17.00 | 1.30 | -17.00 | 17.79 | 313.92 | 31.83 | 298.85 | 0.5756 | -918.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 17.48 | 313.86 | 31.77 | 298.39 | 0.5731 | -973.0 | -704.8 | |
| 0.00 | 2.14 | 0.00 | 1.26 | 13.47 | 312.93 | 30.84 | 292.18 | 0.5405 | -593.0 | -422.2 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 16.42 | 313.40 | 31.32 | 296.94 | 0.5615 | -517.0 | -441.1 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 16.97 | 313.47 | 31.38 | 297.81 | 0.5653 | -726.0 | -629.5 | |
| 1.11 | 1.97 | 0.67 | 1.19 | 18.29 | 313.62 | 31.53 | 299.85 | 0.5747 | -630.4 | -677.3 | |
| 0.00 | 7.12 | 0.00 | 4.23 | 16.18 | 313.00 | 30.92 | 296.80 | 0.5550 | -759.0 | -698.0 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 16.06 | 312.66 | 30.57 | 296.83 | 0.5499 | -977.0 | -755.5 | |
| 1.11 | 2.06 | 0.67 | 1.23 | 18.15 | 312.68 | 30.59 | 300.28 | 0.5622 | 578.2 | 450.5 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 18.28 | 312.27 | 30.18 | 300.78 | 0.5579 | 649.0 | 469.1 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 18.29 | 311.77 | 29.68 | 301.17 | 0.5516 | 696.0 | 463.2 | |
| 3.09 | 29.58 | 1.82 | 17.41 | 18.17 | 311.39 | 29.30 | 301.26 | 0.5461 | 622.6 | 602.5 | |
| 0.00 | 1.97 | 0.00 | 1.14 | 15.76 | 310.69 | 28.61 | 297.65 | 0.5223 | 779.0 | 654.2 | |
| 9.78 | -30.00 | 5.75 | -30.00 | 18.46 | 310.94 | 28.85 | 302.08 | 0.5424 | 973.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 18.75 | 310.42 | 28.34 | 302.98 | 0.5379 | -539.0 | -396.7 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 13.29 | 309.52 | 27.43 | 293.94 | 0.4926 | 592.0 | 481.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 18.07 | 310.19 | 28.11 | 302.03 | 0.5305 | -726.0 | -577.6 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 13.26 | 309.34 | 27.26 | 294.01 | 0.4900 | 673.0 | 550.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
