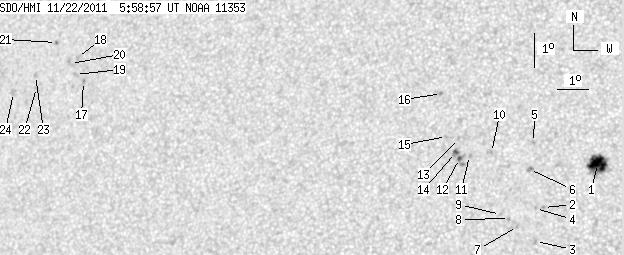

SDO HMI 2011-11-22 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.38 | 76.81 | 11.55 | 41.11 | 8.24 | 261.31 | -20.23 | 71.23 | 0.3583 | -534.6 | -251.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.21 | 33.70 | 9.88 | 17.34 | 7.74 | 266.81 | -14.73 | 68.19 | 0.2726 | -1243.7 | -675.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 6.42 | 265.18 | -16.36 | 74.41 | 0.2918 | -961.0 | -709.0 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 5.41 | 264.97 | -16.57 | 77.97 | 0.2916 | -976.0 | -729.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 6.39 | 264.94 | -16.60 | 74.73 | 0.2957 | -814.0 | -633.6 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 8.35 | 264.80 | -16.74 | 68.61 | 0.3075 | 925.0 | 709.1 | |
| 0.00 | 2.74 | 0.00 | 1.43 | 7.55 | 264.71 | -16.83 | 71.21 | 0.3046 | -835.0 | -804.2 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 5.85 | 264.39 | -17.15 | 76.90 | 0.3025 | -783.0 | -681.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 6.08 | 264.14 | -17.40 | 76.32 | 0.3075 | -764.0 | -704.0 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 6.20 | 263.85 | -17.69 | 76.15 | 0.3125 | -767.0 | -543.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 8.04 | 263.49 | -18.04 | 70.85 | 0.3261 | -907.0 | -693.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 7.94 | 262.81 | -18.73 | 71.74 | 0.3364 | -907.0 | -805.5 | |
| 1.63 | 9.26 | 0.86 | 4.88 | 7.85 | 262.49 | -19.05 | 72.26 | 0.3409 | -1021.3 | -836.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 8.44 | 262.43 | -19.11 | 70.65 | 0.3447 | -775.0 | -648.4 | |
| 1.54 | -12.00 | 0.81 | -12.00 | 8.03 | 262.36 | -19.18 | 71.88 | 0.3438 | -1003.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 8.50 | 262.05 | -19.49 | 70.82 | 0.3509 | -635.0 | -539.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 9.78 | 261.82 | -19.72 | 67.61 | 0.3613 | -946.0 | -800.4 | |
| 0.00 | 1.46 | 0.00 | 0.86 | 9.96 | 249.82 | -31.72 | 74.54 | 0.5394 | 769.0 | 607.5 | |
| 0.00 | 1.89 | 0.00 | 1.11 | 10.67 | 249.53 | -32.01 | 73.36 | 0.5458 | 736.0 | 547.8 | |
| 0.00 | 2.14 | 0.00 | 1.26 | 10.16 | 249.52 | -32.02 | 74.28 | 0.5443 | 730.0 | 645.6 | |
| 0.00 | 3.77 | 0.00 | 2.23 | 10.49 | 249.30 | -32.24 | 73.78 | 0.5484 | 654.0 | 569.2 | |
| 0.00 | 1.20 | 0.00 | 0.72 | 11.11 | 248.72 | -32.81 | 72.92 | 0.5585 | 744.0 | 681.6 | |
| 0.00 | 1.20 | 0.00 | 0.72 | 9.75 | 248.17 | -33.37 | 75.51 | 0.5621 | 686.0 | 603.3 | |
| 0.00 | 1.37 | 0.00 | 0.82 | 10.11 | 248.09 | -33.45 | 74.91 | 0.5642 | 632.0 | 500.4 | |
| 0.00 | 3.60 | 0.00 | 2.17 | 9.58 | 247.35 | -34.19 | 76.06 | 0.5731 | 773.0 | 574.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
