SDO HMI 2011-11-22 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.87 | 196.26 | 26.53 | 106.24 | -16.40 | 266.48 | -15.06 | 141.76 | 0.4037 | -23.9 | -9.8 | |
|
previous
or next observation for the same group /

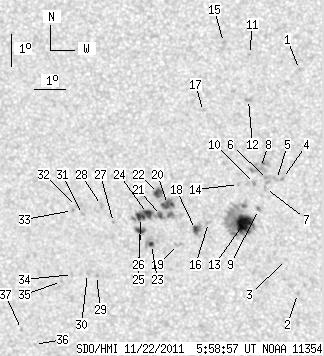

back to the solar disc SDO HMI 2011-11-22 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.58 | -11.98 | 269.82 | -11.72 | 140.52 | 0.3140 | 922.0 | 624.1 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -18.94 | 269.35 | -12.19 | 150.77 | 0.4109 | 820.0 | 627.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -17.87 | 269.07 | -12.47 | 148.82 | 0.3985 | 770.0 | 479.3 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -15.34 | 269.11 | -12.43 | 145.11 | 0.3644 | 953.0 | 712.9 | |
| 0.00 | 2.32 | 0.00 | 1.23 | -15.37 | 268.92 | -12.62 | 144.76 | 0.3666 | 765.0 | 620.6 | |
| 0.00 | 4.89 | 0.00 | 2.60 | -15.37 | 268.64 | -12.90 | 144.17 | 0.3693 | 363.0 | 496.2 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -15.65 | 268.56 | -12.98 | 144.46 | 0.3737 | 644.0 | 587.1 | |
| 0.00 | 13.55 | 0.00 | 7.21 | -15.00 | 268.44 | -13.10 | 143.14 | 0.3665 | -505.0 | -636.5 | |
| 0.00 | 1.97 | 0.00 | 1.06 | -16.31 | 268.29 | -13.25 | 144.96 | 0.3847 | 1028.0 | 836.3 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -15.50 | 268.22 | -13.32 | 143.52 | 0.3750 | 1049.0 | 772.5 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -11.53 | 268.29 | -13.25 | 136.12 | 0.3254 | 846.0 | 651.1 | |
| 0.00 | 2.49 | 0.00 | 1.31 | -12.91 | 268.19 | -13.35 | 138.76 | 0.3430 | 979.0 | 704.4 | |
| 16.64 | 67.74 | 8.96 | 36.50 | -16.75 | 267.78 | -13.76 | 144.64 | 0.3952 | 1186.1 | 451.7 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -15.53 | 267.71 | -13.83 | 142.56 | 0.3804 | 718.0 | 609.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -11.17 | 267.50 | -14.04 | 133.69 | 0.3306 | 798.0 | 675.0 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -16.73 | 266.67 | -14.87 | 142.51 | 0.4055 | 221.0 | 164.4 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -13.29 | 266.76 | -14.78 | 136.64 | 0.3633 | 680.0 | 562.3 | |
| 3.09 | 7.03 | 1.68 | 3.82 | -16.95 | 266.23 | -15.31 | 142.07 | 0.4125 | -1083.8 | -569.2 | |
| 0.00 | 2.74 | 0.00 | 1.50 | -17.43 | 265.65 | -15.89 | 141.78 | 0.4241 | 625.0 | 588.6 | |
| 7.46 | 53.16 | 4.05 | 28.94 | -16.18 | 265.40 | -16.14 | 139.36 | 0.4117 | -725.5 | -705.7 | |
| 0.94 | -20.00 | 0.51 | -20.00 | -16.52 | 265.18 | -16.36 | 139.55 | 0.4181 | -987.0 | 999999 | |
| 5.14 | -20.00 | 2.79 | -20.00 | -15.84 | 265.14 | -16.40 | 138.35 | 0.4105 | -1064.1 | 999999 | |
| 1.80 | 7.63 | 0.99 | 4.19 | -17.44 | 264.77 | -16.77 | 140.32 | 0.4329 | 644.0 | -34.6 | |
| 4.80 | -20.00 | 2.62 | -20.00 | -16.47 | 264.73 | -16.81 | 138.71 | 0.4220 | -1173.4 | 999999 | |
| 4.80 | -20.00 | 2.63 | -20.00 | -16.59 | 264.49 | -17.05 | 138.52 | 0.4260 | -1005.3 | 999999 | |
| 4.20 | 5.32 | 2.30 | 2.92 | -17.00 | 264.46 | -17.08 | 139.12 | 0.4311 | -867.5 | -767.6 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -16.76 | 263.60 | -17.94 | 137.37 | 0.4373 | -849.0 | -708.9 | |
| 0.00 | 2.06 | 0.00 | 1.13 | -16.23 | 263.26 | -18.28 | 135.98 | 0.4352 | -916.0 | -709.8 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -18.44 | 262.87 | -18.67 | 138.87 | 0.4637 | -891.0 | -714.3 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -18.38 | 262.58 | -18.96 | 138.36 | 0.4660 | -731.0 | -636.0 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -16.52 | 262.62 | -18.92 | 135.49 | 0.4454 | -704.0 | -616.6 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -16.27 | 262.44 | -19.09 | 134.83 | 0.4446 | -821.0 | -680.0 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -16.40 | 262.30 | -19.24 | 134.83 | 0.4476 | -756.0 | -609.8 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -18.41 | 262.08 | -19.46 | 137.69 | 0.4716 | -530.0 | -449.1 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -18.64 | 261.69 | -19.85 | 137.48 | 0.4781 | -703.0 | -501.7 | |
| 0.00 | 0.51 | 0.00 | 0.30 | -20.66 | 260.51 | -21.03 | 138.80 | 0.5118 | -662.0 | -406.3 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -20.19 | 260.14 | -21.40 | 137.65 | 0.5105 | -735.0 | -637.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
