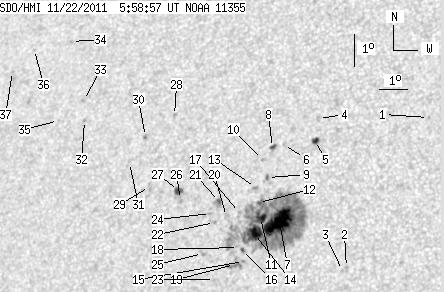

SDO HMI 2011-11-22 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.77 | 350.11 | 46.74 | 203.00 | 14.08 | 252.31 | -29.23 | 65.76 | 0.5213 | -551.9 | -349.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.53 | 17.17 | 257.72 | -23.82 | 55.61 | 0.4696 | -782.0 | -697.4 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 12.58 | 255.51 | -26.03 | 66.45 | 0.4691 | -876.0 | -656.3 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 12.49 | 255.39 | -26.15 | 66.73 | 0.4704 | -629.0 | -596.4 | |
| 0.00 | 2.66 | 0.00 | 1.54 | 17.09 | 253.94 | -27.60 | 59.23 | 0.5174 | -696.0 | -580.6 | |
| 3.00 | 4.03 | 1.73 | 2.32 | 16.41 | 253.94 | -27.59 | 60.41 | 0.5130 | 786.1 | 575.5 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 16.27 | 252.85 | -28.69 | 61.50 | 0.5266 | -635.0 | -505.8 | |
| 41.42 | 281.34 | 23.83 | 162.23 | 13.93 | 253.05 | -28.49 | 65.56 | 0.5106 | -1240.0 | -424.6 | |
| 1.97 | 3.09 | 1.15 | 1.80 | 16.17 | 252.47 | -29.07 | 61.94 | 0.5309 | 656.0 | 482.7 | |
| 1.37 | 1.80 | 0.80 | 1.05 | 15.26 | 252.44 | -29.10 | 63.57 | 0.5260 | -583.2 | -505.6 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 15.80 | 252.18 | -29.36 | 62.80 | 0.5326 | -782.0 | -606.9 | |
| 8.32 | -7.00 | 4.82 | -7.00 | 14.04 | 252.37 | -29.17 | 65.80 | 0.5204 | -831.7 | 999999 | |
| 1.20 | -7.00 | 0.70 | -7.00 | 14.49 | 252.24 | -29.30 | 65.07 | 0.5246 | -557.1 | 999999 | |
| 0.00 | 2.40 | 0.00 | 1.40 | 14.95 | 252.07 | -29.47 | 64.38 | 0.5293 | -693.0 | -614.6 | |
| 15.86 | -7.00 | 9.18 | -7.00 | 13.55 | 252.23 | -29.31 | 66.77 | 0.5199 | -900.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 12.70 | 251.96 | -29.58 | 68.49 | 0.5197 | -731.0 | -560.3 | |
| 1.46 | 1.89 | 0.85 | 1.09 | 13.06 | 251.88 | -29.66 | 67.88 | 0.5225 | -684.0 | -483.0 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 14.18 | 251.62 | -29.92 | 66.02 | 0.5314 | -497.0 | -337.0 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 13.12 | 251.73 | -29.81 | 67.86 | 0.5248 | -278.0 | -311.0 | |
| 0.00 | 8.92 | 0.00 | 5.18 | 12.61 | 251.66 | -29.88 | 68.84 | 0.5235 | -495.0 | -462.3 | |
| 0.00 | 2.74 | 0.00 | 1.61 | 14.05 | 251.17 | -30.36 | 66.52 | 0.5368 | 27.0 | -26.3 | |
| 1.71 | 5.66 | 1.01 | 3.33 | 14.50 | 250.86 | -30.68 | 65.92 | 0.5433 | -676.6 | -535.7 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 13.86 | 250.78 | -30.76 | 67.08 | 0.5413 | -551.0 | -369.6 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 12.14 | 251.01 | -30.53 | 70.03 | 0.5305 | 607.0 | 423.1 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 14.13 | 250.59 | -30.95 | 66.72 | 0.5450 | -404.0 | -245.4 | |
| 0.00 | 2.06 | 0.00 | 1.21 | 12.92 | 250.49 | -31.05 | 68.91 | 0.5410 | 859.0 | 701.4 | |
| 0.00 | 2.32 | 0.00 | 1.38 | 14.54 | 249.45 | -32.09 | 66.66 | 0.5622 | 723.0 | 631.8 | |
| 4.46 | 5.23 | 2.67 | 3.13 | 14.81 | 249.34 | -32.20 | 66.27 | 0.5650 | 880.7 | 656.3 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 17.09 | 248.77 | -32.77 | 62.85 | 0.5836 | -672.0 | -467.7 | |
| 0.00 | 2.92 | 0.00 | 1.77 | 14.91 | 248.26 | -33.28 | 66.68 | 0.5796 | 678.0 | 615.4 | |
| 0.00 | 1.71 | 0.00 | 1.05 | 16.43 | 247.83 | -33.71 | 64.46 | 0.5923 | 841.0 | 753.9 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 15.62 | 247.39 | -34.15 | 65.97 | 0.5942 | 449.0 | 352.2 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 16.87 | 245.43 | -36.11 | 65.02 | 0.6245 | 703.0 | 608.2 | |
| 0.00 | 1.46 | 0.00 | 0.93 | 17.48 | 245.25 | -36.29 | 64.18 | 0.6294 | 466.0 | 461.9 | |
| 0.00 | 1.37 | 0.00 | 0.89 | 19.29 | 244.33 | -37.21 | 61.99 | 0.6488 | 717.0 | 560.6 | |
| 0.00 | 0.69 | 0.00 | 0.44 | 16.85 | 244.43 | -37.11 | 65.53 | 0.6367 | 598.0 | 526.6 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 19.01 | 242.93 | -38.61 | 63.08 | 0.6639 | 548.0 | 433.8 | |
| 0.00 | 1.46 | 0.00 | 0.97 | 18.32 | 242.24 | -39.30 | 64.40 | 0.6691 | 282.0 | 174.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
