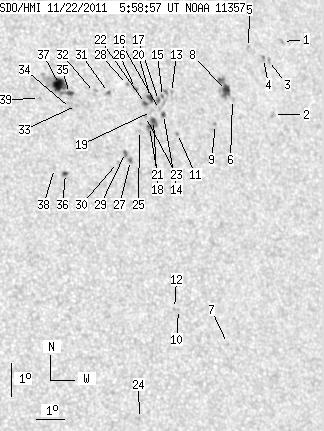

SDO HMI 2011-11-22 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.90 | 124.35 | 24.77 | 75.66 | 17.73 | 313.90 | 32.36 | 298.49 | 0.5819 | -282.8 | -230.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.45 | 19.65 | 319.67 | 38.13 | 298.05 | 0.6613 | -629.0 | -536.8 | |
| 0.00 | 2.32 | 0.00 | 1.49 | 17.40 | 318.73 | 37.19 | 295.25 | 0.6401 | -696.0 | -582.9 | |
| 0.00 | 2.06 | 0.00 | 1.34 | 19.07 | 318.96 | 37.42 | 297.58 | 0.6502 | -546.0 | -473.2 | |
| 0.00 | 2.23 | 0.00 | 1.45 | 19.14 | 318.78 | 37.24 | 297.77 | 0.6484 | -848.0 | -706.9 | |
| 0.00 | 1.54 | 0.00 | 1.00 | 19.49 | 318.28 | 36.74 | 298.54 | 0.6442 | -748.0 | -537.1 | |
| 0.00 | 1.80 | 0.00 | 1.14 | 17.90 | 317.26 | 35.72 | 296.73 | 0.6244 | -46.0 | -49.7 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 10.51 | 315.76 | 34.22 | 285.53 | 0.5761 | -633.0 | -551.5 | |
| 6.95 | 16.29 | 4.39 | 10.29 | 18.18 | 317.10 | 35.56 | 297.24 | 0.6237 | -869.6 | -497.9 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 17.14 | 316.44 | 34.90 | 296.02 | 0.6107 | -865.0 | -713.2 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 11.56 | 314.12 | 32.58 | 287.98 | 0.5568 | -769.0 | -647.5 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 16.89 | 314.97 | 33.43 | 296.45 | 0.5909 | 633.0 | 517.2 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 11.60 | 313.98 | 32.44 | 288.09 | 0.5550 | -729.0 | -620.9 | |
| 0.00 | 1.37 | 0.00 | 0.85 | 18.16 | 315.01 | 33.47 | 298.41 | 0.5980 | -559.0 | -485.5 | |
| 1.37 | 2.14 | 0.84 | 1.31 | 17.49 | 314.57 | 33.03 | 297.62 | 0.5890 | 380.9 | -17.6 | |
| 1.03 | 10.12 | 0.63 | 6.21 | 18.04 | 314.64 | 33.11 | 298.44 | 0.5929 | -672.3 | -557.4 | |
| 0.00 | 1.29 | 0.00 | 0.79 | 17.64 | 314.45 | 32.91 | 297.94 | 0.5883 | -255.0 | -291.2 | |
| 1.89 | -15.00 | 1.15 | -15.00 | 17.92 | 314.47 | 32.93 | 298.36 | 0.5901 | -830.4 | 999999 | |
| 2.40 | 9.95 | 1.46 | 6.04 | 17.31 | 314.16 | 32.62 | 297.59 | 0.5829 | -823.1 | -691.9 | |
| 0.00 | 1.97 | 0.00 | 1.20 | 17.59 | 314.14 | 32.60 | 298.04 | 0.5842 | -800.0 | -575.1 | |
| 3.43 | 8.23 | 2.09 | 5.02 | 18.02 | 314.19 | 32.65 | 298.69 | 0.5872 | -843.9 | -669.2 | |
| 1.54 | -18.00 | 0.94 | -18.00 | 17.13 | 313.98 | 32.44 | 297.41 | 0.5796 | -788.9 | 999999 | |
| 1.46 | -20.00 | 0.89 | -20.00 | 17.84 | 313.97 | 32.43 | 298.54 | 0.5834 | -894.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 17.44 | 313.89 | 32.35 | 297.96 | 0.5802 | -917.0 | -756.3 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 8.33 | 312.39 | 30.85 | 282.75 | 0.5223 | -641.0 | -549.2 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 17.01 | 313.59 | 32.05 | 297.46 | 0.5741 | -652.0 | -515.8 | |
| 1.54 | 1.80 | 0.94 | 1.10 | 18.30 | 313.70 | 32.16 | 299.46 | 0.5826 | -717.7 | -628.0 | |
| 1.20 | 4.46 | 0.72 | 2.67 | 16.10 | 313.09 | 31.55 | 296.28 | 0.5629 | -809.2 | -718.8 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 18.43 | 313.43 | 31.89 | 299.84 | 0.5800 | -734.0 | -603.5 | |
| 1.71 | -27.00 | 1.03 | -27.00 | 16.35 | 312.95 | 31.41 | 296.77 | 0.5624 | -759.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 16.05 | 312.61 | 31.07 | 296.49 | 0.5564 | -640.0 | -582.0 | |
| 1.20 | 2.83 | 0.72 | 1.70 | 18.20 | 312.69 | 31.15 | 299.97 | 0.5694 | 542.0 | 372.6 | |
| 0.00 | 2.14 | 0.00 | 1.28 | 18.21 | 312.18 | 30.64 | 300.34 | 0.5631 | 407.0 | 461.1 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 17.82 | 311.46 | 29.92 | 300.23 | 0.5517 | -142.0 | -156.8 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 17.73 | 311.22 | 29.68 | 300.25 | 0.5482 | -91.0 | -56.5 | |
| 2.06 | 32.50 | 1.22 | 19.22 | 18.19 | 311.27 | 29.73 | 300.97 | 0.5517 | 678.7 | 487.0 | |
| 1.97 | 2.40 | 1.15 | 1.40 | 15.74 | 310.71 | 29.17 | 297.24 | 0.5297 | 700.7 | 623.2 | |
| 11.15 | -35.00 | 6.60 | -35.00 | 18.47 | 310.97 | 29.43 | 301.67 | 0.5497 | 996.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 15.90 | 310.34 | 28.81 | 297.77 | 0.5258 | 609.0 | 507.4 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 18.05 | 310.18 | 28.64 | 301.59 | 0.5371 | -681.0 | -572.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
