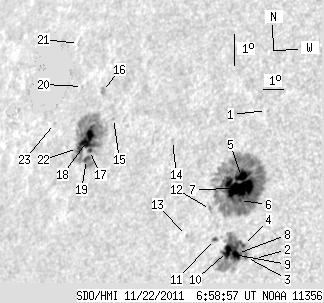

SDO HMI 2011-11-22 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.89 | 417.24 | 56.39 | 324.70 | 14.57 | 231.57 | -49.43 | 72.66 | 0.7708 | -359.9 | -147.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.34 | 0.00 | 0.25 | 16.88 | 234.49 | -46.50 | 68.96 | 0.7461 | -499.0 | -551.5 | |
| 0.00 | 1.29 | 0.00 | 0.93 | 12.39 | 235.19 | -45.81 | 74.79 | 0.7281 | 373.0 | 259.9 | |
| 1.03 | 70.05 | 0.75 | 51.42 | 12.41 | 234.83 | -46.16 | 74.83 | 0.7322 | 200.7 | -236.2 | |
| 1.29 | -3.00 | 0.94 | -3.00 | 12.77 | 234.61 | -46.38 | 74.40 | 0.7354 | -847.0 | 999999 | |
| 7.46 | 224.99 | 5.53 | 166.89 | 14.85 | 233.98 | -47.01 | 71.77 | 0.7468 | -909.2 | -400.4 | |
| 0.77 | -5.00 | 0.57 | -5.00 | 14.12 | 234.09 | -46.90 | 72.71 | 0.7440 | -945.9 | 999999 | |
| 30.10 | -5.00 | 22.31 | -5.00 | 14.48 | 233.95 | -47.05 | 72.26 | 0.7464 | -1063.1 | 999999 | |
| 3.77 | -3.00 | 2.76 | -3.00 | 12.52 | 234.41 | -46.59 | 74.77 | 0.7373 | 385.0 | 999999 | |
| 1.80 | -3.00 | 1.32 | -3.00 | 12.49 | 234.24 | -46.76 | 74.85 | 0.7391 | -607.5 | 999999 | |
| 7.29 | -3.00 | 5.37 | -3.00 | 12.57 | 233.95 | -47.04 | 74.80 | 0.7426 | -738.7 | 999999 | |
| 1.46 | 2.14 | 1.09 | 1.60 | 12.92 | 233.28 | -47.71 | 74.48 | 0.7507 | -448.1 | -335.2 | |
| 0.00 | 2.66 | 0.00 | 2.01 | 13.81 | 232.86 | -48.13 | 73.38 | 0.7570 | -523.0 | -423.2 | |
| 0.00 | 1.29 | 0.00 | 0.99 | 13.00 | 231.97 | -49.02 | 74.62 | 0.7653 | 690.0 | 544.9 | |
| 0.00 | 1.03 | 0.00 | 0.82 | 15.86 | 230.43 | -50.57 | 71.30 | 0.7867 | -565.0 | -484.3 | |
| 0.00 | 0.77 | 0.00 | 0.66 | 16.45 | 227.22 | -53.77 | 71.23 | 0.8194 | 558.0 | 500.8 | |
| 0.00 | 3.00 | 0.00 | 2.64 | 17.25 | 226.29 | -54.70 | 70.44 | 0.8293 | -546.0 | -448.0 | |
| 1.71 | 106.67 | 1.50 | 93.71 | 15.44 | 226.35 | -54.64 | 72.59 | 0.8260 | 732.7 | 353.6 | |
| 12.18 | -17.00 | 10.72 | -17.00 | 15.74 | 226.12 | -54.87 | 72.27 | 0.8286 | 792.1 | 999999 | |
| 3.17 | -17.00 | 2.77 | -17.00 | 15.16 | 226.30 | -54.69 | 72.94 | 0.8261 | 571.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.78 | 17.38 | 225.14 | -55.85 | 70.51 | 0.8400 | -294.0 | -212.3 | |
| 0.00 | 1.29 | 0.00 | 1.20 | 18.69 | 224.27 | -56.72 | 69.13 | 0.8496 | -583.0 | -519.0 | |
| 0.86 | -17.00 | 0.76 | -17.00 | 15.48 | 225.69 | -55.31 | 72.65 | 0.8323 | 287.1 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.80 | 16.21 | 224.10 | -56.89 | 72.06 | 0.8476 | 231.0 | 211.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
