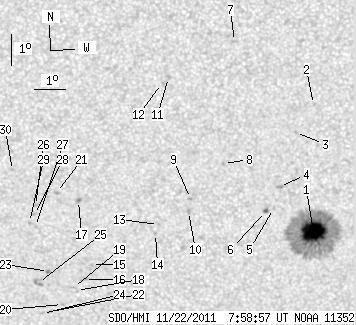

SDO HMI 2011-11-22 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.87 | 232.15 | 18.81 | 129.00 | -24.53 | 283.67 | 3.22 | 186.53 | 0.4536 | 326.2 | 246.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.07 | 191.11 | 17.82 | 106.27 | -24.61 | 284.73 | 4.28 | 188.62 | 0.4551 | 1332.3 | 379.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -20.47 | 284.60 | 4.16 | 190.07 | 0.3900 | 429.0 | 404.6 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -21.37 | 284.06 | 3.61 | 188.40 | 0.4029 | 696.0 | 573.6 | |
| 0.00 | 2.57 | 0.00 | 1.41 | -23.13 | 283.59 | 3.14 | 186.76 | 0.4296 | 883.0 | 770.5 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -23.85 | 283.41 | 2.96 | 186.18 | 0.4406 | 495.0 | 379.9 | |
| 1.80 | 1.89 | 0.99 | 1.04 | -23.95 | 283.15 | 2.70 | 185.62 | 0.4417 | 781.8 | 414.0 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -18.46 | 282.08 | 1.64 | 184.42 | 0.3524 | 808.0 | 674.9 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -22.37 | 281.77 | 1.33 | 182.97 | 0.4152 | 718.0 | 570.2 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -23.52 | 280.72 | 0.27 | 180.58 | 0.4328 | -662.0 | -602.2 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -23.95 | 280.66 | 0.21 | 180.43 | 0.4396 | -920.0 | -716.2 | |
| 0.00 | 2.23 | 0.00 | 1.19 | -19.60 | 280.02 | -0.43 | 178.91 | 0.3701 | 860.0 | 592.7 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -19.80 | 279.80 | -0.65 | 178.36 | 0.3733 | 550.0 | 587.2 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -24.37 | 279.68 | -0.77 | 178.43 | 0.4465 | -764.0 | -632.1 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -24.67 | 279.58 | -0.87 | 178.25 | 0.4512 | -727.0 | -555.3 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -25.71 | 277.47 | -2.98 | 174.25 | 0.4694 | -688.0 | -541.1 | |
| 0.00 | 3.26 | 0.00 | 1.83 | -26.21 | 277.22 | -3.22 | 173.91 | 0.4775 | -601.0 | -543.3 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -23.59 | 277.10 | -3.35 | 172.93 | 0.4372 | -1028.0 | -921.5 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -26.58 | 276.95 | -3.50 | 173.49 | 0.4837 | -414.0 | -458.8 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -26.48 | 276.85 | -3.60 | 173.29 | 0.4823 | -780.0 | -651.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -27.06 | 276.47 | -3.98 | 172.75 | 0.4918 | -545.0 | -482.5 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -23.33 | 276.39 | -4.05 | 171.37 | 0.4346 | -779.0 | -643.9 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -27.30 | 276.06 | -4.39 | 172.09 | 0.4962 | -718.0 | -578.1 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -25.95 | 276.04 | -4.40 | 171.62 | 0.4758 | -998.0 | -841.6 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -27.37 | 275.79 | -4.66 | 171.63 | 0.4978 | -606.0 | -439.3 | |
| 0.00 | 3.77 | 0.00 | 2.13 | -26.32 | 275.70 | -4.75 | 171.11 | 0.4822 | -679.0 | -769.0 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -23.75 | 275.70 | -4.75 | 170.11 | 0.4430 | -830.0 | -612.7 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -24.45 | 275.67 | -4.77 | 170.35 | 0.4538 | -624.0 | -502.6 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -24.05 | 275.66 | -4.79 | 170.15 | 0.4477 | -853.0 | -744.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -24.32 | 275.48 | -4.97 | 169.91 | 0.4523 | -685.0 | -578.3 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -22.61 | 275.00 | -5.45 | 168.11 | 0.4274 | -784.0 | -585.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
