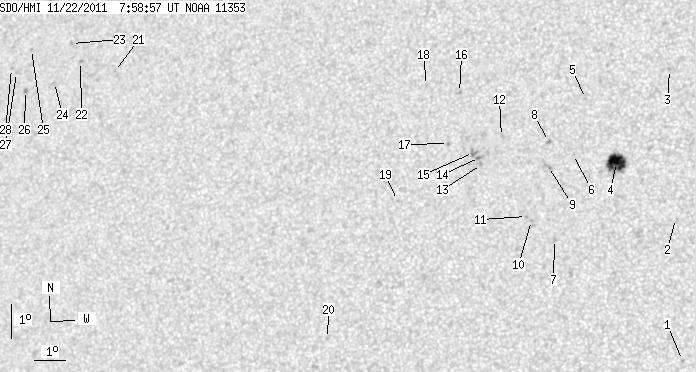

SDO HMI 2011-11-22 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.21 | 68.56 | 11.37 | 36.23 | 8.11 | 262.16 | -18.28 | 69.86 | 0.3288 | -587.6 | -323.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.43 | 1.88 | 268.95 | -11.50 | 90.44 | 0.2001 | -907.0 | -708.4 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 6.09 | 268.68 | -11.77 | 70.50 | 0.2162 | -348.0 | -511.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 10.53 | 268.36 | -12.09 | 54.15 | 0.2553 | -762.0 | -560.8 | |
| 22.21 | 29.67 | 11.37 | 15.19 | 7.74 | 266.83 | -13.62 | 66.64 | 0.2553 | -1211.1 | -596.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 9.64 | 265.80 | -14.65 | 61.77 | 0.2843 | -751.0 | -489.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 7.97 | 265.49 | -14.95 | 67.68 | 0.2775 | -825.0 | -563.4 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 5.44 | 264.99 | -15.46 | 77.05 | 0.2735 | -946.0 | -763.0 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 8.35 | 264.70 | -15.74 | 67.42 | 0.2921 | 882.0 | 707.4 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 7.60 | 264.73 | -15.71 | 69.81 | 0.2873 | -766.0 | -682.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 5.99 | 264.26 | -16.19 | 75.67 | 0.2874 | -1003.0 | -758.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 6.11 | 264.10 | -16.35 | 75.40 | 0.2905 | -930.0 | -701.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 8.48 | 263.23 | -17.22 | 68.69 | 0.3157 | -929.0 | -653.6 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 7.64 | 262.64 | -17.81 | 71.78 | 0.3205 | -978.0 | -825.8 | |
| 0.00 | 2.83 | 0.00 | 1.48 | 7.85 | 262.57 | -17.88 | 71.23 | 0.3227 | -1203.0 | -944.5 | |
| 0.00 | 4.54 | 0.00 | 2.38 | 8.00 | 262.37 | -18.07 | 70.97 | 0.3264 | -868.0 | -804.5 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 9.78 | 261.84 | -18.61 | 66.47 | 0.3445 | -988.0 | -670.7 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 8.25 | 261.57 | -18.88 | 70.94 | 0.3402 | -724.0 | -605.8 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 9.98 | 260.78 | -19.67 | 67.02 | 0.3617 | -602.0 | -500.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 6.54 | 260.04 | -20.41 | 76.82 | 0.3575 | -846.0 | -599.5 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 2.42 | 257.93 | -22.52 | 88.52 | 0.3845 | -699.0 | -504.0 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 10.25 | 250.39 | -30.06 | 73.30 | 0.5167 | 762.0 | 663.1 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 10.52 | 249.17 | -31.28 | 73.31 | 0.5351 | 670.0 | 637.1 | |
| 0.00 | 1.80 | 0.00 | 1.06 | 11.06 | 248.78 | -31.66 | 72.51 | 0.5423 | 839.0 | 617.7 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 9.88 | 248.32 | -32.13 | 74.82 | 0.5451 | 719.0 | 517.9 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 10.85 | 247.38 | -33.07 | 73.45 | 0.5613 | 588.0 | 463.8 | |
| 0.00 | 2.14 | 0.00 | 1.28 | 9.62 | 247.31 | -33.14 | 75.63 | 0.5586 | 708.0 | 626.7 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 10.15 | 246.92 | -33.53 | 74.83 | 0.5655 | 590.0 | 403.5 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 10.27 | 246.73 | -33.72 | 74.70 | 0.5685 | 542.0 | 423.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
