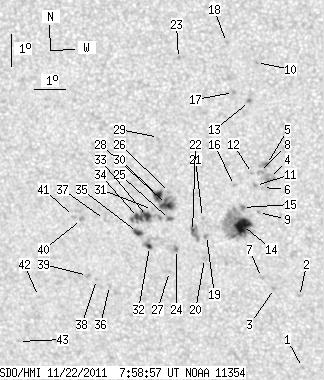

SDO HMI 2011-11-22 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.41 | 186.49 | 25.58 | 100.52 | -16.50 | 266.39 | -14.06 | 143.75 | 0.3951 | 62.5 | 28.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.61 | -21.25 | 269.37 | -11.08 | 155.57 | 0.4349 | 760.0 | 545.3 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -18.98 | 269.43 | -11.01 | 153.19 | 0.4023 | 686.0 | 574.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.73 | 268.65 | -11.80 | 151.29 | 0.4047 | 739.0 | 580.2 | |
| 0.00 | 5.49 | 0.00 | 2.91 | -15.28 | 268.72 | -11.73 | 146.52 | 0.3571 | 241.0 | 339.8 | |
| 1.54 | 4.46 | 0.82 | 2.36 | -14.85 | 268.65 | -11.80 | 145.65 | 0.3520 | -898.6 | -744.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -15.56 | 268.48 | -11.97 | 146.45 | 0.3630 | 784.0 | 645.8 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -18.38 | 268.26 | -12.19 | 150.06 | 0.4030 | 708.0 | 578.8 | |
| 0.00 | 2.14 | 0.00 | 1.14 | -15.10 | 268.41 | -12.04 | 145.55 | 0.3574 | -785.0 | -547.5 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -16.34 | 268.31 | -12.14 | 147.28 | 0.3750 | 965.0 | 783.4 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -11.72 | 268.49 | -11.96 | 139.39 | 0.3131 | 901.0 | 606.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -15.50 | 268.26 | -12.19 | 145.88 | 0.3642 | 973.0 | 808.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -15.13 | 268.19 | -12.26 | 145.12 | 0.3599 | -550.0 | -437.7 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -12.91 | 268.22 | -12.23 | 141.19 | 0.3310 | 1004.0 | 888.7 | |
| 15.35 | 60.02 | 8.23 | 32.21 | -16.75 | 267.77 | -12.68 | 146.78 | 0.3852 | 1190.3 | 459.6 | |
| 0.00 | 3.00 | 0.00 | 1.60 | -16.19 | 267.81 | -12.64 | 146.00 | 0.3774 | 957.0 | 862.1 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -15.51 | 267.60 | -12.85 | 144.48 | 0.3704 | 710.0 | 535.1 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -12.64 | 267.73 | -12.71 | 139.58 | 0.3327 | 885.0 | 750.2 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -11.12 | 267.59 | -12.86 | 136.02 | 0.3159 | 798.0 | 550.9 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -17.08 | 266.60 | -13.84 | 144.95 | 0.4000 | 268.0 | 105.0 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -17.80 | 266.48 | -13.96 | 145.79 | 0.4104 | 753.0 | 461.1 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -16.51 | 266.52 | -13.93 | 143.92 | 0.3936 | 370.0 | 378.8 | |
| 1.37 | 10.12 | 0.74 | 5.47 | -16.95 | 266.17 | -14.28 | 143.93 | 0.4025 | -1016.4 | -664.6 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -11.62 | 266.07 | -14.37 | 133.97 | 0.3394 | 845.0 | 737.2 | |
| 1.03 | 3.52 | 0.56 | 1.91 | -17.52 | 265.61 | -14.84 | 143.77 | 0.4150 | 643.6 | 343.8 | |
| 2.06 | 3.26 | 1.11 | 1.76 | -16.59 | 265.46 | -14.99 | 142.05 | 0.4047 | -904.3 | -793.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -15.74 | 265.53 | -14.92 | 140.79 | 0.3938 | 505.0 | 300.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -18.22 | 265.32 | -15.13 | 144.28 | 0.4263 | 666.0 | 501.7 | |
| 8.15 | 26.41 | 4.40 | 14.25 | -16.12 | 265.40 | -15.05 | 141.18 | 0.3996 | -849.1 | -398.4 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -14.04 | 265.30 | -15.15 | 137.37 | 0.3759 | 350.0 | 387.5 | |
| 6.43 | -28.00 | 3.47 | -28.00 | -15.84 | 265.14 | -15.31 | 140.24 | 0.3989 | -972.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -16.28 | 264.94 | -15.51 | 140.62 | 0.4062 | -905.0 | -736.9 | |
| 1.80 | 8.32 | 0.98 | 4.54 | -17.44 | 264.75 | -15.70 | 142.11 | 0.4222 | 582.5 | -202.6 | |
| 3.17 | 18.43 | 1.72 | 10.01 | -16.50 | 264.76 | -15.69 | 140.66 | 0.4107 | -1236.2 | -867.6 | |
| 2.57 | -33.00 | 1.40 | -33.00 | -16.53 | 264.47 | -15.98 | 140.20 | 0.4140 | -1059.1 | 999999 | |
| 3.94 | 4.54 | 2.15 | 2.48 | -17.00 | 264.40 | -16.05 | 140.83 | 0.4204 | -901.2 | -735.6 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -18.68 | 263.33 | -17.12 | 141.60 | 0.4509 | 514.0 | 346.7 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -16.61 | 263.37 | -17.08 | 138.47 | 0.4263 | -764.0 | -630.3 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -18.50 | 262.92 | -17.53 | 140.69 | 0.4527 | -912.0 | -679.5 | |
| 0.00 | 2.06 | 0.00 | 1.14 | -18.37 | 262.64 | -17.81 | 140.07 | 0.4541 | -767.0 | -675.3 | |
| 0.00 | 2.23 | 0.00 | 1.22 | -16.62 | 262.62 | -17.83 | 137.29 | 0.4343 | -841.0 | -738.3 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -16.52 | 262.37 | -18.08 | 136.75 | 0.4360 | -663.0 | -524.6 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -19.06 | 260.94 | -19.51 | 138.57 | 0.4789 | -532.0 | -439.4 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -20.51 | 260.08 | -20.37 | 139.45 | 0.5034 | -640.0 | -467.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
