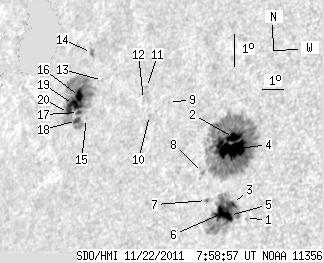

SDO HMI 2011-11-22 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.50 | 429.99 | 56.80 | 330.22 | 14.53 | 231.69 | -48.76 | 72.55 | 0.7637 | -414.1 | -134.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.55 | 12.43 | 235.16 | -45.29 | 74.62 | 0.7222 | 309.0 | 332.8 | |
| 8.32 | 231.41 | 6.10 | 169.88 | 14.86 | 234.02 | -46.43 | 71.61 | 0.7403 | -903.1 | -381.3 | |
| 0.86 | 78.45 | 0.62 | 57.01 | 12.86 | 234.49 | -45.96 | 74.17 | 0.7308 | -905.5 | -201.4 | |
| 32.75 | -2.00 | 24.02 | -2.00 | 14.49 | 233.99 | -46.46 | 72.10 | 0.7399 | -1042.4 | 999999 | |
| 4.20 | -3.00 | 3.04 | -3.00 | 12.50 | 234.44 | -46.00 | 74.67 | 0.7306 | 419.3 | 999999 | |
| 11.40 | -3.00 | 8.30 | -3.00 | 12.55 | 234.08 | -46.37 | 74.68 | 0.7349 | -737.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.14 | 12.92 | 233.32 | -47.13 | 74.34 | 0.7442 | -550.0 | -473.8 | |
| 0.00 | 1.89 | 0.00 | 1.41 | 13.76 | 232.93 | -47.52 | 73.31 | 0.7502 | -562.0 | -445.9 | |
| 0.00 | 0.77 | 0.00 | 0.61 | 15.84 | 230.71 | -49.74 | 71.12 | 0.7781 | -558.0 | -453.7 | |
| 0.00 | 1.20 | 0.00 | 0.96 | 15.42 | 229.94 | -50.51 | 71.82 | 0.7853 | -530.0 | -392.9 | |
| 0.00 | 1.29 | 0.00 | 1.04 | 16.27 | 229.50 | -50.95 | 70.86 | 0.7914 | -340.0 | -302.9 | |
| 0.00 | 1.29 | 0.00 | 1.04 | 15.90 | 229.48 | -50.97 | 71.32 | 0.7909 | -401.0 | -337.8 | |
| 0.00 | 0.86 | 0.00 | 0.73 | 16.43 | 227.21 | -53.24 | 71.14 | 0.8142 | 540.0 | 539.7 | |
| 0.00 | 3.69 | 0.00 | 3.21 | 17.26 | 226.29 | -54.16 | 70.31 | 0.8244 | -510.0 | -410.4 | |
| 0.00 | 1.20 | 0.00 | 1.02 | 15.25 | 226.83 | -53.61 | 72.64 | 0.8160 | 615.0 | 514.2 | |
| 5.14 | 105.63 | 4.46 | 91.62 | 15.91 | 226.21 | -54.24 | 71.96 | 0.8229 | 897.2 | 368.1 | |
| 1.97 | -16.00 | 1.70 | -16.00 | 15.42 | 226.35 | -54.10 | 72.52 | 0.8209 | 679.9 | 999999 | |
| 3.52 | -16.00 | 3.03 | -16.00 | 15.18 | 226.34 | -54.11 | 72.82 | 0.8206 | 618.6 | 999999 | |
| 4.63 | -16.00 | 4.03 | -16.00 | 15.66 | 225.99 | -54.45 | 72.30 | 0.8246 | 636.3 | 999999 | |
| 1.71 | -16.00 | 1.50 | -16.00 | 15.41 | 225.83 | -54.62 | 72.63 | 0.8258 | 456.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
