SDO HMI 2011-11-22 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.85 | 220.36 | 36.92 | 208.72 | 17.46 | 223.06 | -57.38 | 70.66 | 0.8536 | -399.8 | -152.7 | |
|
previous
or next observation for the same group /

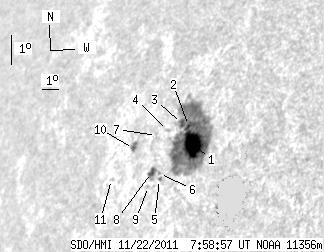

back to the solar disc SDO HMI 2011-11-22 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.35 | 200.55 | 25.62 | 188.98 | 17.46 | 223.37 | -57.07 | 70.62 | 0.8509 | -804.0 | -187.9 | |
| 0.86 | -1.00 | 0.82 | -1.00 | 18.04 | 222.85 | -57.60 | 70.04 | 0.8562 | -544.9 | 999999 | |
| 2.66 | -1.00 | 2.56 | -1.00 | 18.08 | 222.41 | -58.03 | 70.06 | 0.8600 | -332.6 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.94 | 17.85 | 221.70 | -58.75 | 70.45 | 0.8656 | 272.0 | 201.5 | |
| 1.20 | 1.54 | 1.16 | 1.49 | 16.34 | 221.99 | -58.46 | 72.14 | 0.8613 | -182.0 | -152.5 | |
| 0.00 | 0.94 | 0.00 | 0.92 | 16.52 | 221.90 | -58.55 | 71.94 | 0.8623 | -142.0 | -55.5 | |
| 0.00 | 1.29 | 0.00 | 1.28 | 17.68 | 221.12 | -59.32 | 70.74 | 0.8701 | 199.0 | 126.4 | |
| 4.89 | 7.55 | 4.81 | 7.42 | 16.54 | 221.41 | -59.04 | 71.99 | 0.8664 | 600.3 | 458.0 | |
| 0.00 | 1.29 | 0.00 | 1.26 | 16.11 | 221.44 | -59.01 | 72.48 | 0.8657 | 493.0 | 430.7 | |
| 1.89 | 4.03 | 1.95 | 4.16 | 17.24 | 219.93 | -60.52 | 71.41 | 0.8792 | 610.9 | 531.2 | |
| 0.00 | 1.20 | 0.00 | 1.27 | 16.26 | 219.05 | -61.40 | 72.63 | 0.8851 | 448.0 | 361.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
