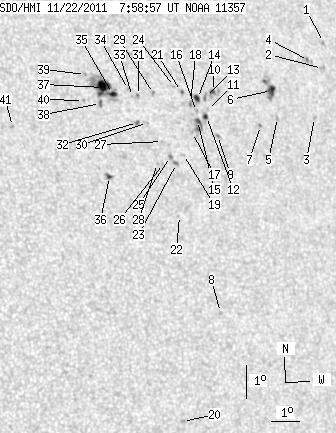

SDO HMI 2011-11-22 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.12 | 133.31 | 19.04 | 81.76 | 17.78 | 313.49 | 33.05 | 298.16 | 0.5908 | -201.2 | -179.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.86 | 19.71 | 319.69 | 39.24 | 297.61 | 0.6743 | -565.0 | -470.0 | |
| 0.00 | 1.97 | 0.00 | 1.31 | 18.90 | 319.41 | 38.97 | 296.60 | 0.6677 | -469.0 | -374.6 | |
| 0.00 | 1.37 | 0.00 | 0.89 | 17.40 | 318.70 | 38.25 | 294.77 | 0.6530 | -697.0 | -563.2 | |
| 0.00 | 2.74 | 0.00 | 1.81 | 19.16 | 318.92 | 38.47 | 297.20 | 0.6631 | -808.0 | -653.7 | |
| 0.00 | 1.63 | 0.00 | 1.04 | 17.43 | 317.26 | 36.81 | 295.49 | 0.6356 | -671.0 | -587.8 | |
| 5.40 | 14.40 | 3.47 | 9.25 | 18.27 | 317.22 | 36.77 | 296.75 | 0.6389 | -830.6 | -396.6 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 17.20 | 316.54 | 36.10 | 295.50 | 0.6258 | -839.0 | -738.2 | |
| 0.00 | 1.46 | 0.00 | 0.88 | 11.56 | 314.04 | 33.59 | 287.58 | 0.5708 | -762.0 | -641.2 | |
| 0.00 | 1.97 | 0.00 | 1.22 | 16.92 | 314.85 | 34.40 | 295.96 | 0.6035 | 500.0 | 402.8 | |
| 2.14 | 6.69 | 1.34 | 4.18 | 18.28 | 314.96 | 34.51 | 298.00 | 0.6115 | -708.8 | -565.8 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 17.73 | 314.65 | 34.20 | 297.33 | 0.6049 | -594.0 | -403.2 | |
| 1.71 | 3.60 | 1.06 | 2.23 | 17.51 | 314.56 | 34.11 | 297.05 | 0.6028 | 340.7 | 6.8 | |
| 0.00 | 3.17 | 0.00 | 1.97 | 18.13 | 314.66 | 34.21 | 297.94 | 0.6071 | -915.0 | -677.6 | |
| 3.09 | 4.80 | 1.91 | 2.97 | 18.07 | 314.34 | 33.90 | 298.04 | 0.6029 | -812.4 | -643.5 | |
| 2.40 | 10.20 | 1.48 | 6.28 | 17.40 | 314.20 | 33.75 | 297.07 | 0.5977 | -765.7 | -731.3 | |
| 0.00 | 1.80 | 0.00 | 1.11 | 17.67 | 314.22 | 33.77 | 297.49 | 0.5993 | -672.0 | -571.4 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 17.03 | 313.94 | 33.49 | 296.65 | 0.5925 | -825.0 | -671.0 | |
| 0.00 | 2.06 | 0.00 | 1.27 | 17.92 | 314.05 | 33.60 | 297.98 | 0.5985 | -1020.0 | -853.4 | |
| 0.00 | 1.37 | 0.00 | 0.83 | 16.37 | 313.47 | 33.02 | 295.85 | 0.5833 | -728.0 | -598.0 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 8.33 | 312.31 | 31.86 | 282.45 | 0.5370 | -788.0 | -602.1 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 18.30 | 313.79 | 33.35 | 298.72 | 0.5974 | -803.0 | -709.7 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 14.51 | 312.99 | 32.55 | 293.07 | 0.5683 | -582.0 | -545.6 | |
| 0.00 | 2.31 | 0.00 | 1.40 | 16.10 | 313.16 | 32.71 | 295.59 | 0.5780 | -848.0 | -753.4 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 18.46 | 313.57 | 33.12 | 299.11 | 0.5954 | -830.0 | -638.4 | |
| 0.00 | 2.06 | 0.00 | 1.25 | 16.31 | 312.98 | 32.54 | 296.05 | 0.5768 | -961.0 | -782.8 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 16.11 | 312.69 | 32.24 | 295.88 | 0.5719 | -823.0 | -635.0 | |
| 0.00 | 1.20 | 0.00 | 0.73 | 16.78 | 312.78 | 32.33 | 296.93 | 0.5765 | -680.0 | -464.1 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 16.11 | 312.47 | 32.02 | 296.02 | 0.5691 | -598.0 | -539.1 | |
| 0.00 | 1.46 | 0.00 | 0.89 | 18.26 | 312.74 | 32.30 | 299.32 | 0.5841 | 790.0 | 589.6 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 17.37 | 312.34 | 31.89 | 298.16 | 0.5742 | 435.0 | 410.2 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 18.21 | 312.18 | 31.73 | 299.60 | 0.5769 | 626.0 | 393.0 | |
| 0.00 | 1.71 | 0.00 | 1.03 | 17.38 | 311.98 | 31.53 | 298.40 | 0.5696 | -960.0 | -846.7 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 18.18 | 311.96 | 31.51 | 299.71 | 0.5739 | 778.0 | 654.9 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 18.40 | 311.85 | 31.40 | 300.13 | 0.5739 | 717.0 | 511.7 | |
| 2.49 | 42.10 | 1.49 | 25.18 | 18.28 | 311.25 | 30.80 | 300.37 | 0.5657 | 618.4 | 411.2 | |
| 1.71 | 3.52 | 1.01 | 2.07 | 15.74 | 310.68 | 30.23 | 296.53 | 0.5438 | 698.2 | 667.8 | |
| 12.18 | -35.00 | 7.28 | -35.00 | 18.47 | 310.96 | 30.51 | 300.88 | 0.5633 | 975.4 | 999999 | |
| 0.00 | 2.40 | 0.00 | 1.43 | 17.98 | 310.75 | 30.30 | 300.23 | 0.5577 | 847.0 | 683.1 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 18.89 | 310.39 | 29.94 | 301.97 | 0.5588 | -300.0 | -198.5 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 18.09 | 310.16 | 29.71 | 300.84 | 0.5509 | -714.0 | -544.9 | |
| 0.00 | 1.46 | 0.00 | 0.84 | 17.33 | 307.52 | 27.07 | 301.65 | 0.5124 | 715.0 | 616.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
