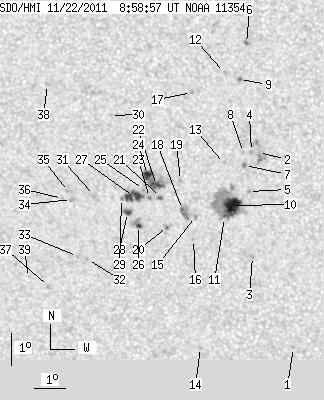

SDO HMI 2011-11-22 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.77 | 183.63 | 26.26 | 98.71 | -16.51 | 266.46 | -13.44 | 144.96 | 0.3896 | -116.4 | 24.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.71 | -21.28 | 269.40 | -10.50 | 156.73 | 0.4316 | 661.0 | 497.3 | |
| 0.00 | 13.72 | 0.00 | 7.25 | -15.13 | 268.68 | -11.22 | 147.42 | 0.3504 | -105.0 | -16.2 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -18.38 | 268.29 | -11.61 | 151.22 | 0.3984 | 720.0 | 570.1 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -15.10 | 268.46 | -11.44 | 146.87 | 0.3519 | -783.0 | -626.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -16.34 | 268.30 | -11.60 | 148.43 | 0.3703 | 798.0 | 716.5 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -11.78 | 268.47 | -11.43 | 140.76 | 0.3082 | 938.0 | 841.5 | |
| 0.00 | 2.23 | 0.00 | 1.18 | -15.53 | 268.22 | -11.68 | 147.02 | 0.3600 | 1024.0 | 834.5 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -15.13 | 268.21 | -11.69 | 146.36 | 0.3546 | -544.0 | -363.3 | |
| 0.00 | 1.89 | 0.00 | 0.99 | -12.88 | 268.20 | -11.70 | 142.35 | 0.3250 | 937.0 | 801.5 | |
| 18.09 | 67.21 | 9.68 | 35.99 | -16.78 | 267.77 | -12.14 | 147.94 | 0.3808 | 1127.8 | 435.0 | |
| 0.60 | -10.00 | 0.32 | -10.00 | -17.16 | 267.49 | -12.42 | 147.90 | 0.3883 | 581.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -12.67 | 267.75 | -12.15 | 140.88 | 0.3270 | 823.0 | 657.6 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -15.48 | 267.60 | -12.31 | 145.57 | 0.3649 | 775.0 | 617.3 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -21.30 | 266.38 | -13.52 | 151.11 | 0.4528 | 686.0 | 536.3 | |
| 0.00 | 2.23 | 0.00 | 1.20 | -17.14 | 266.57 | -13.34 | 146.02 | 0.3961 | -145.0 | 22.9 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -17.86 | 266.45 | -13.45 | 146.84 | 0.4066 | 675.0 | 519.4 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.29 | 266.69 | -13.21 | 139.77 | 0.3460 | 873.0 | 778.8 | |
| 0.60 | 8.57 | 0.32 | 4.62 | -16.92 | 266.17 | -13.73 | 144.92 | 0.3969 | -1026.4 | -687.3 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -16.02 | 266.17 | -13.73 | 143.51 | 0.3853 | 531.0 | 372.7 | |
| 0.00 | 2.91 | 0.00 | 1.58 | -17.46 | 265.65 | -14.26 | 144.74 | 0.4086 | 709.0 | 582.3 | |
| 0.60 | 1.97 | 0.32 | 1.06 | -16.55 | 265.49 | -14.41 | 143.06 | 0.3986 | -978.6 | -884.2 | |
| 6.86 | 24.26 | 3.69 | 13.06 | -16.18 | 265.40 | -14.51 | 142.28 | 0.3949 | -1026.2 | -481.4 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -16.56 | 265.14 | -14.76 | 142.41 | 0.4021 | -980.0 | -875.7 | |
| 5.74 | -22.00 | 3.09 | -22.00 | -15.84 | 265.13 | -14.77 | 141.23 | 0.3933 | -1012.4 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -16.31 | 264.97 | -14.93 | 141.70 | 0.4007 | -953.0 | -668.4 | |
| 1.80 | 7.97 | 0.98 | 4.34 | -17.44 | 264.72 | -15.18 | 143.01 | 0.4171 | 503.0 | -223.2 | |
| 11.57 | 16.03 | 6.27 | 8.68 | -16.53 | 264.63 | -15.27 | 141.44 | 0.4068 | -1048.7 | -730.3 | |
| 2.91 | 3.77 | 1.59 | 2.05 | -17.03 | 264.40 | -15.50 | 141.82 | 0.4152 | -901.4 | -825.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -16.60 | 264.24 | -15.66 | 140.85 | 0.4115 | -770.0 | -704.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -14.02 | 264.09 | -15.81 | 136.12 | 0.3830 | -582.0 | -521.3 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -16.51 | 263.38 | -16.52 | 139.23 | 0.4193 | -749.0 | -670.7 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -18.53 | 262.96 | -16.94 | 141.66 | 0.4472 | -909.0 | -694.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -18.43 | 262.65 | -17.26 | 141.02 | 0.4493 | -792.0 | -647.5 | |
| 0.00 | 2.31 | 0.00 | 1.27 | -16.64 | 262.63 | -17.28 | 138.20 | 0.4287 | -842.0 | -685.8 | |
| 0.00 | 2.23 | 0.00 | 1.22 | -16.39 | 262.55 | -17.35 | 137.68 | 0.4267 | -814.0 | -641.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -16.62 | 262.34 | -17.56 | 137.70 | 0.4315 | -692.0 | -508.9 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -19.40 | 261.59 | -18.32 | 140.78 | 0.4708 | -689.0 | -626.4 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -13.09 | 262.16 | -17.75 | 131.08 | 0.3956 | -726.0 | -664.1 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -19.12 | 260.96 | -18.95 | 139.46 | 0.4739 | -580.0 | -502.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
