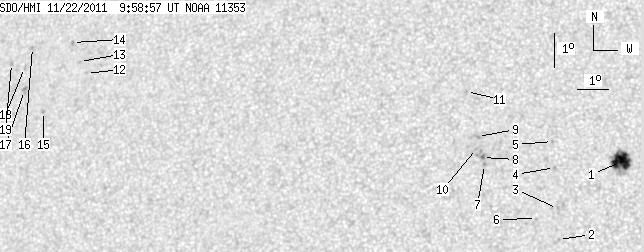

SDO HMI 2011-11-22 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.32 | 61.10 | 10.37 | 32.26 | 8.27 | 261.63 | -17.73 | 68.32 | 0.3201 | -510.7 | -229.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.46 | 32.32 | 9.92 | 16.48 | 7.74 | 266.84 | -12.52 | 64.87 | 0.2383 | -1226.6 | -609.3 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 5.40 | 264.97 | -14.38 | 76.27 | 0.2557 | -879.0 | -733.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 6.32 | 264.92 | -14.44 | 72.85 | 0.2605 | -869.0 | -685.4 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 7.54 | 264.79 | -14.57 | 68.62 | 0.2690 | -1006.0 | -796.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 8.31 | 264.70 | -14.66 | 66.08 | 0.2752 | 848.0 | 642.5 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 6.02 | 264.28 | -15.08 | 74.59 | 0.2695 | -916.0 | -575.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 7.61 | 262.61 | -16.74 | 70.84 | 0.3036 | -921.0 | -781.7 | |
| 0.86 | 5.31 | 0.45 | 2.76 | 7.82 | 262.54 | -16.81 | 70.26 | 0.3058 | -994.4 | -801.4 | |
| 0.00 | 2.57 | 0.00 | 1.34 | 8.44 | 262.36 | -17.00 | 68.54 | 0.3121 | -889.0 | -627.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 8.08 | 262.35 | -17.01 | 69.65 | 0.3103 | -946.0 | -735.0 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 9.78 | 261.95 | -17.41 | 65.09 | 0.3265 | -930.0 | -754.3 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 10.15 | 249.41 | -29.95 | 73.42 | 0.5148 | 780.0 | 721.3 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 10.50 | 249.13 | -30.23 | 72.88 | 0.5200 | 725.0 | 654.5 | |
| 0.00 | 1.89 | 0.00 | 1.10 | 11.07 | 248.82 | -30.54 | 71.97 | 0.5265 | 804.0 | 683.7 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 8.99 | 248.02 | -31.33 | 76.15 | 0.5311 | 690.0 | 563.4 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 10.89 | 247.43 | -31.93 | 72.90 | 0.5455 | 674.0 | 564.1 | |
| 0.00 | 3.00 | 0.00 | 1.77 | 9.60 | 247.29 | -32.07 | 75.28 | 0.5434 | 756.0 | 616.8 | |
| 0.00 | 1.71 | 0.00 | 1.01 | 10.29 | 247.22 | -32.14 | 74.07 | 0.5465 | 639.0 | 573.0 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 10.40 | 246.74 | -32.62 | 74.06 | 0.5536 | 562.0 | 469.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
