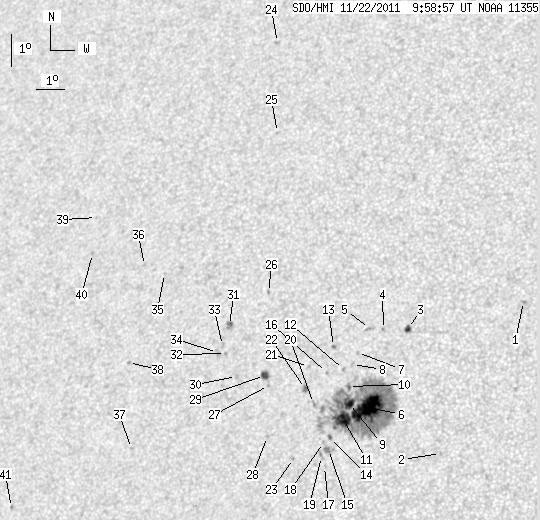

SDO HMI 2011-11-22 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.39 | 356.50 | 41.59 | 203.00 | 14.14 | 252.14 | -27.22 | 64.22 | 0.4944 | -460.1 | -332.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.99 | 17.21 | 257.85 | -21.51 | 52.93 | 0.4408 | -878.0 | -691.9 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 12.55 | 255.61 | -23.75 | 64.67 | 0.4367 | -911.0 | -660.6 | |
| 3.00 | 3.69 | 1.69 | 2.08 | 16.33 | 254.09 | -25.27 | 58.54 | 0.4823 | 712.3 | 469.2 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 16.28 | 253.24 | -26.12 | 59.38 | 0.4931 | -719.0 | -638.5 | |
| 0.00 | 3.17 | 0.00 | 1.81 | 16.31 | 252.75 | -26.61 | 59.75 | 0.4996 | 744.0 | 529.4 | |
| 39.26 | 284.69 | 22.15 | 160.92 | 13.91 | 253.01 | -26.35 | 64.03 | 0.4812 | -1226.6 | -437.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 15.57 | 252.44 | -26.91 | 61.35 | 0.4989 | -702.0 | -534.5 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 15.20 | 252.32 | -27.04 | 62.12 | 0.4983 | -641.0 | -467.1 | |
| 8.23 | -6.00 | 4.67 | -6.00 | 14.02 | 252.38 | -26.98 | 64.29 | 0.4905 | -839.4 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.81 | 14.53 | 252.28 | -27.08 | 63.40 | 0.4949 | -669.0 | -529.0 | |
| 15.52 | -6.00 | 8.80 | -6.00 | 13.53 | 252.23 | -27.12 | 65.33 | 0.4898 | -905.3 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.74 | 15.05 | 252.03 | -27.32 | 62.63 | 0.5012 | -591.0 | -457.0 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 15.74 | 251.59 | -27.77 | 61.71 | 0.5114 | 798.0 | 697.0 | |
| 1.46 | 1.54 | 0.83 | 0.88 | 12.98 | 251.82 | -27.54 | 66.67 | 0.4927 | -654.9 | -639.0 | |
| 0.00 | 4.54 | 0.00 | 2.58 | 12.62 | 251.83 | -27.53 | 67.36 | 0.4907 | -765.0 | -676.4 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 14.95 | 251.46 | -27.90 | 63.24 | 0.5084 | -600.0 | -353.7 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 12.11 | 251.75 | -27.61 | 68.41 | 0.4893 | 573.0 | 550.7 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 12.83 | 251.63 | -27.72 | 67.09 | 0.4945 | -508.0 | -420.5 | |
| 0.00 | 2.91 | 0.00 | 1.66 | 12.41 | 251.61 | -27.74 | 67.91 | 0.4927 | -502.0 | -327.2 | |
| 0.00 | 2.14 | 0.00 | 1.23 | 14.00 | 251.14 | -28.22 | 65.21 | 0.5074 | -575.0 | -415.3 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 15.12 | 250.81 | -28.55 | 63.40 | 0.5181 | -529.0 | -426.5 | |
| 1.46 | 3.69 | 0.84 | 2.13 | 14.45 | 250.80 | -28.56 | 64.62 | 0.5145 | -696.8 | -656.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 12.33 | 250.66 | -28.70 | 68.64 | 0.5058 | 745.0 | 511.3 | |
| 0.00 | 1.97 | 0.00 | 1.25 | 25.20 | 247.50 | -31.86 | 50.15 | 0.6244 | -764.0 | -533.7 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 22.33 | 248.28 | -31.08 | 53.60 | 0.5955 | -692.0 | -569.0 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 17.35 | 249.02 | -30.34 | 60.81 | 0.5544 | -711.0 | -595.8 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 14.52 | 249.49 | -29.87 | 65.35 | 0.5326 | 769.0 | 566.6 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 12.98 | 249.67 | -29.69 | 68.01 | 0.5225 | 698.0 | 459.4 | |
| 4.46 | 5.83 | 2.61 | 3.42 | 14.82 | 249.30 | -30.05 | 64.94 | 0.5366 | 849.4 | 602.0 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 14.77 | 248.31 | -31.04 | 65.63 | 0.5496 | 838.0 | 644.2 | |
| 0.00 | 4.54 | 0.00 | 2.72 | 16.32 | 247.80 | -31.56 | 63.33 | 0.5643 | 993.0 | 782.7 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 15.46 | 247.80 | -31.55 | 64.76 | 0.5598 | 835.0 | 677.8 | |
| 0.00 | 2.14 | 0.00 | 1.28 | 15.71 | 247.65 | -31.70 | 64.44 | 0.5630 | 694.0 | 562.9 | |
| 0.00 | 3.26 | 0.00 | 1.95 | 15.49 | 247.51 | -31.85 | 64.89 | 0.5638 | 593.0 | 504.5 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 17.87 | 245.08 | -34.27 | 62.49 | 0.6066 | 539.0 | 453.7 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 18.10 | 244.27 | -35.08 | 62.59 | 0.6177 | 589.0 | 446.1 | |
| 0.00 | 1.46 | 0.00 | 0.89 | 12.53 | 244.85 | -34.51 | 71.16 | 0.5865 | 680.0 | 399.2 | |
| 0.00 | 1.37 | 0.00 | 0.85 | 15.12 | 244.29 | -35.06 | 67.20 | 0.6039 | 721.0 | 526.5 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 19.55 | 242.04 | -37.31 | 61.65 | 0.6514 | 617.0 | 499.4 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 18.43 | 242.18 | -37.18 | 63.20 | 0.6446 | 676.0 | 545.8 | |
| 0.00 | 1.37 | 0.00 | 0.88 | 10.67 | 240.60 | -38.75 | 75.58 | 0.6375 | 641.0 | 584.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
