SDO HMI 2011-11-22 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.57 | 123.23 | 16.34 | 76.36 | 17.78 | 313.25 | 33.89 | 297.66 | 0.6014 | -111.3 | -116.4 | |
|
previous
or next observation for the same group /

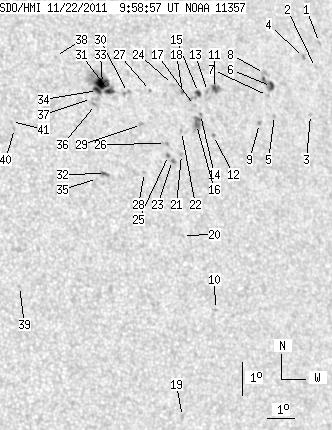

back to the solar disc SDO HMI 2011-11-22 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.17 | 19.67 | 319.73 | 40.37 | 297.04 | 0.6871 | -492.0 | -419.2 | |
| 0.00 | 1.20 | 0.00 | 0.81 | 18.90 | 319.33 | 39.97 | 296.15 | 0.6795 | -246.0 | -304.2 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 17.46 | 318.73 | 39.38 | 294.36 | 0.6667 | -681.0 | -564.2 | |
| 0.00 | 1.63 | 0.00 | 1.09 | 19.22 | 318.93 | 39.58 | 296.78 | 0.6762 | -692.0 | -666.7 | |
| 0.00 | 1.46 | 0.00 | 0.95 | 17.46 | 317.30 | 37.94 | 295.00 | 0.6495 | -668.0 | -570.1 | |
| 3.34 | 7.97 | 2.18 | 5.20 | 18.35 | 317.41 | 38.05 | 296.25 | 0.6546 | -841.7 | -428.3 | |
| 0.00 | 1.20 | 0.00 | 0.78 | 18.08 | 317.18 | 37.82 | 295.97 | 0.6507 | -822.0 | -728.2 | |
| 0.00 | 3.26 | 0.00 | 2.13 | 18.76 | 317.24 | 37.88 | 296.92 | 0.6544 | 245.0 | 138.4 | |
| 0.00 | 1.71 | 0.00 | 1.10 | 17.22 | 316.65 | 37.30 | 294.96 | 0.6407 | -838.0 | -670.8 | |
| 0.00 | 1.20 | 0.00 | 0.73 | 11.62 | 313.94 | 34.58 | 287.30 | 0.5845 | -775.0 | -651.9 | |
| 1.71 | 4.97 | 1.09 | 3.16 | 18.33 | 315.17 | 35.81 | 297.36 | 0.6278 | -766.4 | -578.4 | |
| 0.00 | 1.46 | 0.00 | 0.91 | 16.89 | 314.80 | 35.45 | 295.37 | 0.6165 | 478.0 | 406.7 | |
| 0.00 | 2.31 | 0.00 | 1.46 | 18.25 | 314.88 | 35.52 | 297.39 | 0.6238 | -860.0 | -660.3 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 17.54 | 314.45 | 35.10 | 296.56 | 0.6152 | 230.0 | 337.3 | |
| 2.23 | 5.74 | 1.40 | 3.61 | 18.22 | 314.53 | 35.17 | 297.55 | 0.6194 | -763.0 | -730.2 | |
| 0.00 | 8.66 | 0.00 | 5.41 | 17.24 | 314.23 | 34.88 | 296.21 | 0.6110 | -913.0 | -686.2 | |
| 0.00 | 1.37 | 0.00 | 0.86 | 17.83 | 314.29 | 34.93 | 297.08 | 0.6145 | -724.0 | -626.7 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 18.26 | 313.93 | 34.57 | 297.95 | 0.6123 | -815.0 | -740.4 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 8.45 | 312.36 | 33.00 | 282.34 | 0.5537 | -824.0 | -654.0 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 13.87 | 313.07 | 33.71 | 291.43 | 0.5811 | -511.0 | -422.8 | |
| 0.00 | 1.29 | 0.00 | 0.79 | 16.33 | 313.48 | 34.12 | 295.20 | 0.5972 | -838.0 | -705.8 | |
| 0.00 | 1.37 | 0.00 | 0.85 | 17.04 | 313.62 | 34.27 | 296.23 | 0.6024 | -833.0 | -698.4 | |
| 0.34 | 1.71 | 0.21 | 1.05 | 16.16 | 313.11 | 33.75 | 295.12 | 0.5917 | -853.5 | -762.6 | |
| 0.00 | 1.63 | 0.00 | 1.02 | 18.49 | 313.60 | 34.25 | 298.48 | 0.6095 | -611.0 | -540.9 | |
| 0.69 | 1.54 | 0.42 | 0.95 | 16.31 | 312.99 | 33.64 | 295.43 | 0.5909 | -781.9 | -769.5 | |
| 0.00 | 2.66 | 0.00 | 1.63 | 16.68 | 312.95 | 33.60 | 296.04 | 0.5922 | -721.0 | -596.5 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 18.32 | 312.74 | 33.38 | 298.74 | 0.5979 | 682.0 | 511.5 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 15.81 | 312.01 | 32.66 | 295.17 | 0.5759 | -627.0 | -488.2 | |
| 0.00 | 1.71 | 0.00 | 1.05 | 17.28 | 312.18 | 32.83 | 297.44 | 0.5855 | -909.0 | -722.2 | |
| 0.00 | 2.91 | 0.00 | 1.78 | 18.27 | 311.87 | 32.51 | 299.21 | 0.5870 | 707.0 | 557.3 | |
| 3.34 | 44.58 | 2.03 | 26.97 | 18.31 | 311.22 | 31.86 | 299.71 | 0.5791 | 659.5 | 488.1 | |
| 1.97 | 3.00 | 1.17 | 1.79 | 15.81 | 310.59 | 31.24 | 296.01 | 0.5574 | 658.9 | 678.4 | |
| 10.12 | -31.00 | 6.13 | -31.00 | 18.57 | 311.01 | 31.65 | 300.24 | 0.5781 | 956.2 | 999999 | |
| 2.83 | -31.00 | 1.71 | -31.00 | 18.35 | 310.78 | 31.43 | 300.06 | 0.5740 | 824.2 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 15.66 | 310.28 | 30.92 | 295.96 | 0.5525 | 745.0 | 608.6 | |
| 0.00 | 2.57 | 0.00 | 1.55 | 17.92 | 310.62 | 31.27 | 299.48 | 0.5695 | 634.0 | 468.0 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 18.11 | 310.52 | 31.16 | 299.85 | 0.5692 | 309.0 | 341.5 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 19.43 | 309.47 | 30.11 | 302.72 | 0.5646 | -695.0 | -547.7 | |
| 0.00 | 0.51 | 0.00 | 0.29 | 12.44 | 307.09 | 27.73 | 292.15 | 0.4927 | 725.0 | 611.8 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 17.23 | 307.60 | 28.24 | 300.55 | 0.5268 | 660.0 | 535.7 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 17.45 | 307.53 | 28.17 | 300.97 | 0.5274 | 577.0 | 524.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
