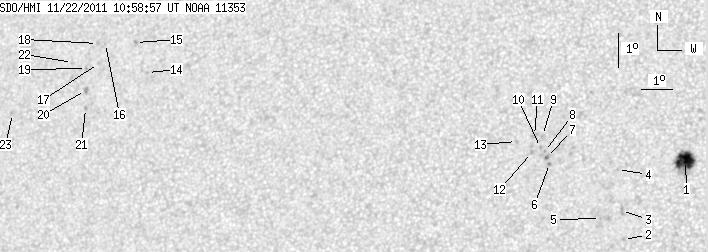

SDO HMI 2011-11-22 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.54 | 64.10 | 9.94 | 33.73 | 8.24 | 261.55 | -17.26 | 67.78 | 0.3129 | -498.1 | -275.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.54 | 32.91 | 9.94 | 16.75 | 7.76 | 266.84 | -11.97 | 63.77 | 0.2301 | -1212.5 | -598.8 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 5.40 | 265.01 | -13.80 | 75.73 | 0.2462 | -1005.0 | -740.3 | |
| 0.00 | 3.26 | 0.00 | 1.67 | 6.26 | 264.93 | -13.88 | 72.46 | 0.2513 | -750.0 | -674.2 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 7.48 | 264.77 | -14.04 | 68.13 | 0.2604 | -1009.0 | -888.4 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 6.02 | 264.29 | -14.52 | 74.05 | 0.2605 | -921.0 | -723.7 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 7.64 | 262.66 | -16.15 | 70.12 | 0.2945 | -959.0 | -810.5 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 7.82 | 262.56 | -16.25 | 69.66 | 0.2971 | -1037.0 | -940.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 8.00 | 262.49 | -16.32 | 69.17 | 0.2991 | -1035.0 | -848.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 8.47 | 262.41 | -16.41 | 67.77 | 0.3031 | -918.0 | -740.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 8.11 | 262.36 | -16.45 | 68.94 | 0.3018 | -850.0 | -685.8 | |
| 0.00 | 3.34 | 0.00 | 1.74 | 8.47 | 262.16 | -16.66 | 68.07 | 0.3070 | -737.0 | -600.3 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 7.96 | 262.08 | -16.73 | 69.71 | 0.3053 | -710.0 | -590.7 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 8.28 | 261.60 | -17.21 | 69.23 | 0.3145 | -638.0 | -474.4 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 10.18 | 249.38 | -29.43 | 73.12 | 0.5074 | 875.0 | 664.8 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 11.07 | 248.87 | -29.94 | 71.67 | 0.5181 | 768.0 | 676.4 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 11.02 | 247.82 | -30.99 | 72.25 | 0.5327 | 367.0 | 373.8 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 10.42 | 247.65 | -31.17 | 73.43 | 0.5331 | 724.0 | 587.6 | |
| 0.00 | 1.37 | 0.00 | 0.80 | 11.02 | 247.54 | -31.27 | 72.39 | 0.5367 | 607.0 | 465.6 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 10.26 | 247.24 | -31.57 | 73.89 | 0.5384 | 681.0 | 557.2 | |
| 0.00 | 3.09 | 0.00 | 1.81 | 9.60 | 247.28 | -31.54 | 75.07 | 0.5358 | 776.0 | 630.9 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 9.07 | 247.33 | -31.48 | 76.04 | 0.5335 | 668.0 | 532.6 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 10.43 | 246.72 | -32.09 | 73.78 | 0.5462 | 566.0 | 465.4 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 8.87 | 244.74 | -34.07 | 77.22 | 0.5698 | 681.0 | 622.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
