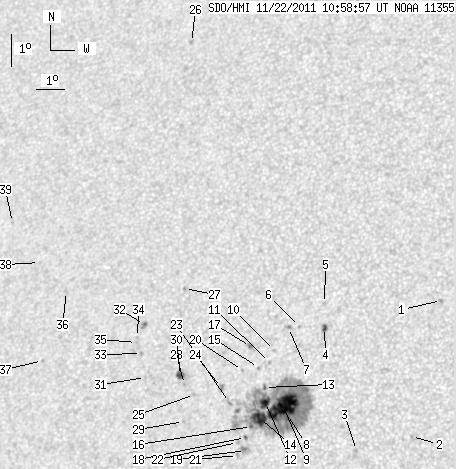

SDO HMI 2011-11-22 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.37 | 339.41 | 41.44 | 191.91 | 14.08 | 252.33 | -26.48 | 63.78 | 0.4840 | -517.0 | -382.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.94 | 17.21 | 257.90 | -20.91 | 52.19 | 0.4333 | -856.0 | -697.5 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 13.06 | 257.35 | -21.46 | 61.41 | 0.4076 | -577.0 | -484.7 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 12.62 | 255.59 | -23.23 | 64.08 | 0.4297 | -874.0 | -680.1 | |
| 2.06 | 2.83 | 1.16 | 1.59 | 16.33 | 254.09 | -24.73 | 58.02 | 0.4752 | 779.0 | 590.9 | |
| 0.00 | 1.71 | 0.00 | 0.97 | 17.06 | 253.98 | -24.83 | 56.77 | 0.4819 | -731.0 | -541.3 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 16.35 | 253.23 | -25.58 | 58.78 | 0.4865 | -761.0 | -549.1 | |
| 0.00 | 2.40 | 0.00 | 1.36 | 16.31 | 252.86 | -25.95 | 59.18 | 0.4911 | 689.0 | 569.6 | |
| 2.14 | 277.11 | 1.20 | 155.94 | 13.67 | 253.17 | -25.64 | 63.94 | 0.4701 | -1234.6 | -455.8 | |
| 36.17 | -8.00 | 20.32 | -8.00 | 13.91 | 253.00 | -25.81 | 63.60 | 0.4738 | -1223.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 15.60 | 252.48 | -26.33 | 60.81 | 0.4915 | -706.0 | -510.2 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 15.24 | 252.36 | -26.46 | 61.59 | 0.4907 | -715.0 | -600.8 | |
| 7.54 | -8.00 | 4.26 | -8.00 | 14.02 | 252.38 | -26.43 | 63.87 | 0.4831 | -852.8 | 999999 | |
| 1.29 | -8.00 | 0.73 | -8.00 | 14.48 | 252.29 | -26.53 | 63.08 | 0.4870 | -561.8 | 999999 | |
| 14.49 | -8.00 | 8.18 | -8.00 | 13.53 | 252.23 | -26.58 | 64.92 | 0.4823 | -918.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 15.08 | 252.00 | -26.81 | 62.17 | 0.4945 | -681.0 | -567.1 | |
| 1.11 | -8.00 | 0.63 | -8.00 | 13.29 | 251.99 | -26.82 | 65.57 | 0.4843 | -530.0 | 999999 | |
| 1.71 | 3.09 | 0.98 | 1.77 | 15.71 | 251.63 | -27.18 | 61.29 | 0.5034 | 729.0 | 470.3 | |
| 1.46 | 1.71 | 0.82 | 0.97 | 12.95 | 251.82 | -26.99 | 66.34 | 0.4848 | -630.8 | -464.7 | |
| 0.00 | 6.26 | 0.00 | 3.53 | 12.56 | 251.87 | -26.94 | 67.07 | 0.4822 | -809.0 | -691.6 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 14.98 | 251.46 | -27.35 | 62.77 | 0.5012 | -674.0 | -525.1 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 12.41 | 251.61 | -27.20 | 67.55 | 0.4850 | -642.0 | -453.5 | |
| 0.00 | 2.06 | 0.00 | 1.17 | 12.80 | 251.57 | -27.24 | 66.81 | 0.4876 | -401.0 | -296.2 | |
| 0.00 | 2.14 | 0.00 | 1.22 | 14.00 | 251.14 | -27.67 | 64.81 | 0.4999 | -463.0 | -322.6 | |
| 0.00 | 3.26 | 0.00 | 1.87 | 14.45 | 250.81 | -28.00 | 64.22 | 0.5070 | -814.0 | -671.1 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 14.23 | 249.90 | -28.91 | 65.25 | 0.5181 | 637.0 | 486.1 | |
| 0.00 | 1.46 | 0.00 | 0.92 | 25.17 | 247.50 | -31.31 | 49.76 | 0.6185 | -656.0 | -565.6 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 17.45 | 249.03 | -29.78 | 60.25 | 0.5479 | -754.0 | -670.1 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 14.52 | 249.51 | -29.30 | 64.98 | 0.5250 | 709.0 | 616.2 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 13.40 | 249.63 | -29.18 | 66.93 | 0.5177 | 819.0 | 614.5 | |
| 4.80 | 7.97 | 2.80 | 4.64 | 14.79 | 249.33 | -29.49 | 64.61 | 0.5289 | 835.3 | 331.0 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 14.71 | 248.10 | -30.71 | 65.53 | 0.5449 | 616.0 | 470.6 | |
| 0.60 | 2.83 | 0.36 | 1.68 | 16.32 | 247.79 | -31.02 | 62.98 | 0.5573 | 926.7 | 774.7 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 15.44 | 247.84 | -30.97 | 64.44 | 0.5521 | 871.0 | 716.3 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 15.92 | 247.61 | -31.20 | 63.76 | 0.5575 | 711.0 | 591.6 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 15.77 | 247.60 | -31.21 | 64.03 | 0.5569 | 734.0 | 599.5 | |
| 0.00 | 1.89 | 0.00 | 1.17 | 17.28 | 244.74 | -34.07 | 63.28 | 0.6012 | 607.0 | 434.1 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 15.16 | 244.27 | -34.55 | 66.88 | 0.5974 | 683.0 | 575.2 | |
| 0.00 | 0.51 | 0.00 | 0.32 | 18.15 | 243.52 | -35.29 | 62.62 | 0.6205 | 608.0 | 530.2 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 19.37 | 242.18 | -36.63 | 61.55 | 0.6426 | 545.0 | 409.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
