SDO HMI 2011-11-22 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.52 | 228.86 | 33.03 | 207.98 | 17.44 | 223.08 | -55.73 | 70.38 | 0.8391 | -415.0 | -142.8 | |
|
previous
or next observation for the same group /

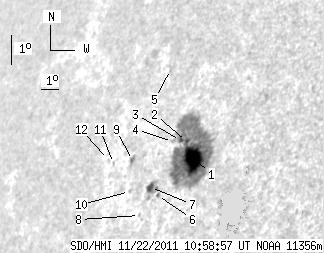

back to the solar disc SDO HMI 2011-11-22 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.06 | 203.74 | 26.08 | 183.99 | 17.46 | 223.43 | -55.38 | 70.30 | 0.8360 | -798.2 | -204.2 | |
| 1.20 | -1.00 | 1.10 | -1.00 | 17.97 | 222.80 | -56.01 | 69.82 | 0.8424 | -541.1 | 999999 | |
| 1.46 | -1.00 | 1.34 | -1.00 | 17.99 | 222.45 | -56.36 | 69.86 | 0.8455 | -416.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.04 | 17.95 | 222.02 | -56.79 | 69.99 | 0.8492 | 264.0 | 209.1 | |
| 0.00 | 1.80 | 0.00 | 1.76 | 20.16 | 220.69 | -58.12 | 67.69 | 0.8637 | 353.0 | 324.6 | |
| 0.43 | 1.29 | 0.40 | 1.19 | 16.28 | 221.95 | -56.86 | 71.95 | 0.8475 | -236.0 | -183.3 | |
| 4.37 | 12.60 | 4.11 | 11.82 | 16.51 | 221.45 | -57.36 | 71.76 | 0.8522 | 614.7 | 292.0 | |
| 0.00 | 1.11 | 0.00 | 1.05 | 15.65 | 221.21 | -57.60 | 72.81 | 0.8532 | 421.0 | 465.7 | |
| 0.00 | 4.03 | 0.00 | 3.96 | 17.31 | 219.99 | -58.82 | 71.07 | 0.8655 | 658.0 | 581.5 | |
| 0.00 | 1.29 | 0.00 | 1.25 | 16.36 | 220.29 | -58.52 | 72.12 | 0.8619 | 565.0 | 491.9 | |
| 0.00 | 1.03 | 0.00 | 1.04 | 17.18 | 218.89 | -59.92 | 71.38 | 0.8743 | 333.0 | 327.2 | |
| 0.00 | 0.86 | 0.00 | 0.88 | 17.29 | 218.52 | -60.29 | 71.31 | 0.8775 | 152.0 | 133.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
