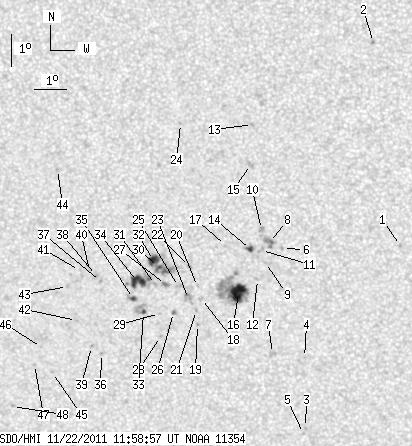

SDO HMI 2011-11-22 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.62 | 201.54 | 23.33 | 107.70 | -16.52 | 266.41 | -11.85 | 148.29 | 0.3754 | 0.1 | -14.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.63 | -15.36 | 272.87 | -5.40 | 163.07 | 0.3130 | 833.0 | 657.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -9.16 | 272.18 | -6.08 | 151.56 | 0.2207 | 985.0 | 780.1 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -21.12 | 269.64 | -8.62 | 160.38 | 0.4181 | 703.0 | 597.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.88 | 269.74 | -8.53 | 158.49 | 0.3843 | 658.0 | 555.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -21.31 | 269.57 | -8.70 | 160.39 | 0.4214 | 652.0 | 512.9 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -15.47 | 269.21 | -9.05 | 153.15 | 0.3373 | -655.0 | -369.9 | |
| 0.00 | 3.34 | 0.00 | 1.80 | -18.76 | 268.73 | -9.53 | 156.10 | 0.3888 | 829.0 | 613.8 | |
| 0.00 | 8.48 | 0.00 | 4.46 | -15.28 | 268.81 | -9.45 | 151.89 | 0.3377 | 475.0 | 320.1 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -15.90 | 268.66 | -9.60 | 152.40 | 0.3478 | 895.0 | 728.9 | |
| 0.00 | 3.34 | 0.00 | 1.76 | -14.88 | 268.58 | -9.68 | 150.72 | 0.3337 | -845.0 | -723.5 | |
| 0.00 | 2.40 | 0.00 | 1.26 | -15.53 | 268.55 | -9.71 | 151.61 | 0.3433 | 802.0 | 670.2 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -16.44 | 268.38 | -9.88 | 152.46 | 0.3576 | 741.0 | 621.9 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -11.66 | 268.44 | -9.83 | 144.64 | 0.2901 | 975.0 | 746.2 | |
| 2.91 | 4.63 | 1.54 | 2.44 | -15.50 | 268.21 | -10.05 | 150.73 | 0.3456 | 882.6 | 508.0 | |
| 0.00 | 3.69 | 0.00 | 1.92 | -12.88 | 268.33 | -9.94 | 146.72 | 0.3079 | 891.0 | 710.7 | |
| 16.03 | 59.65 | 8.53 | 31.77 | -16.85 | 267.76 | -10.50 | 151.59 | 0.3681 | 1136.0 | 467.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -15.38 | 267.44 | -10.83 | 148.72 | 0.3503 | 619.0 | 515.8 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -17.04 | 266.59 | -11.68 | 149.26 | 0.3803 | 289.0 | 109.9 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -17.86 | 266.41 | -11.86 | 150.01 | 0.3930 | 831.0 | 656.5 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -16.67 | 266.48 | -11.78 | 148.51 | 0.3761 | 596.0 | 517.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -17.42 | 266.40 | -11.86 | 149.41 | 0.3870 | 178.0 | 157.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -16.04 | 266.27 | -11.99 | 147.12 | 0.3695 | 847.0 | 678.1 | |
| 0.00 | 7.54 | 0.00 | 4.04 | -17.04 | 266.17 | -12.09 | 148.40 | 0.3838 | -775.0 | -621.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -11.64 | 266.22 | -12.04 | 139.00 | 0.3129 | 827.0 | 620.3 | |
| 0.00 | 2.31 | 0.00 | 1.24 | -16.67 | 265.88 | -12.38 | 147.24 | 0.3813 | -598.0 | -475.3 | |
| 0.00 | 2.14 | 0.00 | 1.15 | -17.49 | 265.67 | -12.60 | 147.99 | 0.3941 | 836.0 | 681.0 | |
| 0.00 | 3.26 | 0.00 | 1.75 | -16.61 | 265.47 | -12.79 | 146.31 | 0.3841 | -962.0 | -724.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -18.25 | 265.20 | -13.07 | 148.11 | 0.4082 | 688.0 | 533.3 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -17.52 | 265.22 | -13.04 | 147.14 | 0.3984 | -604.0 | -463.0 | |
| 2.31 | 28.54 | 1.24 | 15.25 | -16.08 | 265.29 | -12.98 | 145.12 | 0.3789 | -946.9 | -631.8 | |
| 0.00 | 2.06 | 0.00 | 1.10 | -16.62 | 265.16 | -13.11 | 145.68 | 0.3870 | -933.0 | -635.8 | |
| 7.03 | -30.00 | 3.76 | -30.00 | -15.87 | 265.15 | -13.12 | 144.48 | 0.3774 | -945.0 | 999999 | |
| 1.37 | 9.77 | 0.74 | 5.28 | -17.50 | 264.71 | -13.55 | 146.11 | 0.4026 | 576.9 | -159.4 | |
| 11.83 | 21.25 | 6.36 | 11.42 | -16.53 | 264.59 | -13.67 | 144.42 | 0.3911 | -1052.2 | -804.4 | |
| 2.14 | 4.89 | 1.16 | 2.64 | -17.06 | 264.43 | -13.84 | 144.91 | 0.3995 | -836.5 | -693.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -18.80 | 263.25 | -15.01 | 145.28 | 0.4324 | 563.0 | 449.0 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -16.54 | 263.41 | -14.85 | 142.19 | 0.4026 | -947.0 | -739.1 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -16.35 | 263.30 | -14.96 | 141.69 | 0.4014 | -950.0 | -761.2 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -18.58 | 262.95 | -15.32 | 144.45 | 0.4324 | -835.0 | -664.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -16.20 | 263.09 | -15.18 | 141.05 | 0.4017 | -843.0 | -683.4 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -16.20 | 262.77 | -15.50 | 140.48 | 0.4049 | -786.0 | -651.8 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -17.77 | 262.54 | -15.73 | 142.54 | 0.4262 | -747.0 | -585.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -16.70 | 262.34 | -15.92 | 140.55 | 0.4153 | -790.0 | -600.2 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -13.08 | 262.30 | -15.97 | 134.01 | 0.3742 | -796.0 | -609.4 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -19.42 | 261.59 | -16.67 | 143.36 | 0.4553 | -786.0 | -624.7 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -18.63 | 261.32 | -16.95 | 141.79 | 0.4484 | -621.0 | -521.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -19.17 | 261.03 | -17.23 | 142.11 | 0.4576 | -584.0 | -418.9 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -20.52 | 260.15 | -18.12 | 142.63 | 0.4818 | -737.0 | -612.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
