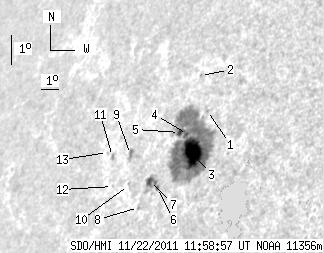

SDO HMI 2011-11-22 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.62 | 236.97 | 33.59 | 212.57 | 17.42 | 223.05 | -55.22 | 70.32 | 0.8344 | -405.4 | -129.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 1.29 | 18.75 | 223.60 | -54.66 | 68.63 | 0.8317 | -163.0 | -201.6 | |
| 0.00 | 1.03 | 0.00 | 0.94 | 19.82 | 222.67 | -55.59 | 67.57 | 0.8418 | 346.0 | 278.0 | |
| 29.31 | 210.06 | 25.96 | 187.29 | 17.44 | 223.40 | -54.87 | 70.23 | 0.8313 | -813.9 | -190.7 | |
| 0.60 | -3.00 | 0.54 | -3.00 | 17.99 | 222.87 | -55.39 | 69.68 | 0.8369 | -574.9 | 999999 | |
| 2.23 | -3.00 | 2.03 | -3.00 | 18.04 | 222.40 | -55.86 | 69.72 | 0.8412 | -375.0 | 999999 | |
| 1.37 | 14.23 | 1.25 | 13.14 | 16.33 | 221.97 | -56.30 | 71.81 | 0.8426 | -154.2 | 275.3 | |
| 4.11 | -6.00 | 3.81 | -6.00 | 16.50 | 221.44 | -56.83 | 71.69 | 0.8475 | 596.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.04 | 15.69 | 221.17 | -57.09 | 72.68 | 0.8488 | 637.0 | 498.8 | |
| 0.00 | 4.11 | 0.00 | 3.98 | 17.29 | 219.95 | -58.31 | 71.02 | 0.8613 | 697.0 | 587.7 | |
| 0.00 | 1.71 | 0.00 | 1.64 | 16.34 | 220.30 | -57.97 | 72.05 | 0.8572 | 637.0 | 537.8 | |
| 0.00 | 1.89 | 0.00 | 1.88 | 17.20 | 218.91 | -59.35 | 71.28 | 0.8698 | 396.0 | 411.3 | |
| 0.00 | 0.60 | 0.00 | 0.59 | 16.28 | 219.37 | -58.89 | 72.26 | 0.8649 | 497.0 | 453.7 | |
| 0.00 | 0.77 | 0.00 | 0.78 | 17.31 | 218.54 | -59.72 | 71.21 | 0.8729 | 214.0 | 153.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
