SDO HMI 2011-11-22 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.22 | 223.04 | 16.32 | 124.59 | -24.56 | 284.02 | 6.85 | 193.62 | 0.4628 | 510.7 | 293.2 | |
|
previous
or next observation for the same group /

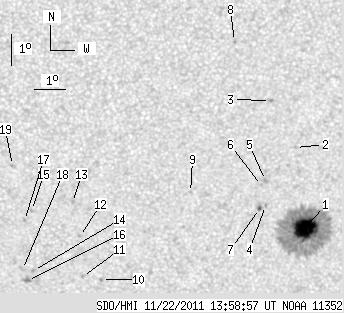

back to the solar disc SDO HMI 2011-11-22 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.19 | 194.93 | 15.75 | 109.04 | -24.64 | 284.66 | 7.49 | 194.82 | 0.4653 | 1314.1 | 365.6 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -21.98 | 284.22 | 7.05 | 195.67 | 0.4235 | 774.0 | 534.6 | |
| 0.00 | 2.14 | 0.00 | 1.15 | -20.46 | 283.35 | 6.19 | 194.82 | 0.3966 | 794.0 | 485.4 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.87 | 283.34 | 6.18 | 192.72 | 0.4489 | 485.0 | 341.2 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -23.05 | 283.31 | 6.14 | 193.09 | 0.4362 | 983.0 | 704.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -23.21 | 283.18 | 6.02 | 192.75 | 0.4383 | 900.0 | 645.4 | |
| 1.03 | 3.26 | 0.57 | 1.80 | -23.97 | 283.15 | 5.99 | 192.29 | 0.4497 | 651.6 | 390.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.58 | 282.15 | 4.98 | 193.20 | 0.3623 | 821.0 | 718.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -23.44 | 280.89 | 3.73 | 187.91 | 0.4353 | -714.0 | -466.1 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -26.32 | 278.04 | 0.87 | 181.65 | 0.4764 | -650.0 | -542.6 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -26.22 | 277.41 | 0.25 | 180.47 | 0.4747 | -617.0 | -486.9 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -24.88 | 277.31 | 0.15 | 180.29 | 0.4539 | -759.0 | -511.4 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -23.76 | 277.08 | -0.08 | 179.83 | 0.4363 | -960.0 | -818.5 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -26.02 | 275.80 | -1.37 | 177.38 | 0.4721 | -937.0 | -750.6 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -24.02 | 275.76 | -1.41 | 177.06 | 0.4410 | -776.0 | -609.2 | |
| 0.00 | 2.83 | 0.00 | 1.59 | -26.36 | 275.60 | -1.57 | 177.04 | 0.4774 | -943.0 | -787.8 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -24.35 | 275.52 | -1.64 | 176.63 | 0.4464 | -897.0 | -660.1 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -25.99 | 275.44 | -1.73 | 176.69 | 0.4718 | -832.0 | -690.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -22.55 | 275.16 | -2.00 | 175.55 | 0.4184 | -725.0 | -646.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
