SDO HMI 2011-11-22 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.70 | 178.55 | 24.86 | 95.08 | -16.45 | 266.20 | -10.96 | 150.16 | 0.3670 | 74.2 | -57.1 | |
|
previous
or next observation for the same group /

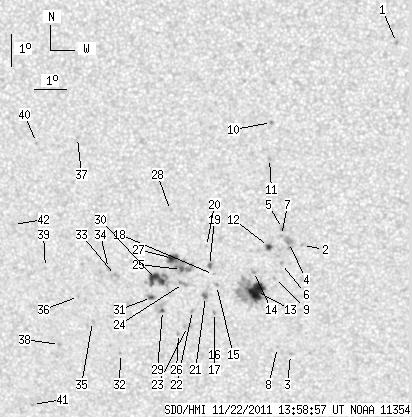

back to the solar disc SDO HMI 2011-11-22 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 0.96 | -9.21 | 272.26 | -4.91 | 156.49 | 0.2127 | 973.0 | 684.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -15.43 | 269.23 | -7.93 | 156.02 | 0.3287 | -630.0 | -447.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.85 | 268.71 | -8.46 | 158.60 | 0.3833 | 774.0 | 591.9 | |
| 0.00 | 7.80 | 0.00 | 4.09 | -15.34 | 268.80 | -8.36 | 154.76 | 0.3304 | 155.0 | 301.5 | |
| 0.00 | 2.83 | 0.00 | 1.48 | -14.91 | 268.64 | -8.53 | 153.72 | 0.3252 | -960.0 | -696.3 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -15.99 | 268.56 | -8.61 | 154.99 | 0.3418 | 1007.0 | 806.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -15.12 | 268.60 | -8.57 | 153.91 | 0.3287 | -644.0 | -522.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -18.63 | 268.31 | -8.86 | 157.46 | 0.3825 | 731.0 | 506.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -16.46 | 268.32 | -8.85 | 154.99 | 0.3504 | 772.0 | 623.2 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -11.65 | 268.41 | -8.75 | 147.67 | 0.2799 | 982.0 | 860.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -12.75 | 268.32 | -8.85 | 149.43 | 0.2964 | 1019.0 | 815.8 | |
| 2.40 | 3.68 | 1.26 | 1.94 | -15.47 | 268.18 | -8.99 | 153.31 | 0.3368 | 953.2 | 801.9 | |
| 18.51 | 52.52 | 9.82 | 27.89 | -16.87 | 267.74 | -9.43 | 154.09 | 0.3605 | 1123.3 | 398.3 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -16.25 | 267.67 | -9.49 | 153.13 | 0.3519 | 864.0 | 735.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -16.69 | 266.49 | -10.68 | 150.97 | 0.3673 | 722.0 | 522.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -17.54 | 266.38 | -10.79 | 151.86 | 0.3801 | 656.0 | 481.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -17.88 | 266.36 | -10.81 | 152.26 | 0.3851 | 772.0 | 573.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -16.35 | 266.42 | -10.75 | 150.32 | 0.3631 | 647.0 | 431.0 | |
| 1.46 | 2.66 | 0.77 | 1.41 | -16.07 | 266.31 | -10.86 | 149.66 | 0.3601 | 819.8 | 489.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -15.48 | 266.24 | -10.92 | 148.63 | 0.3524 | 798.0 | 563.5 | |
| 1.54 | 3.26 | 0.82 | 1.74 | -17.04 | 266.12 | -11.04 | 150.63 | 0.3750 | -934.3 | -856.5 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -17.48 | 265.69 | -11.48 | 150.28 | 0.3847 | 774.0 | 624.6 | |
| 0.00 | 3.17 | 0.00 | 1.71 | -17.98 | 265.49 | -11.67 | 150.55 | 0.3932 | 621.0 | 590.2 | |
| 0.00 | 4.03 | 0.00 | 2.15 | -16.64 | 265.45 | -11.71 | 148.60 | 0.3750 | -955.0 | -706.5 | |
| 2.23 | 27.25 | 1.19 | 14.50 | -16.20 | 265.42 | -11.75 | 147.88 | 0.3694 | -1065.2 | -720.1 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -18.21 | 265.19 | -11.98 | 150.23 | 0.3986 | 684.0 | 554.0 | |
| 5.65 | -25.00 | 3.01 | -25.00 | -15.86 | 265.16 | -12.01 | 146.79 | 0.3671 | -989.1 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -14.37 | 265.18 | -11.99 | 144.39 | 0.3471 | 701.0 | 562.1 | |
| 1.20 | 8.74 | 0.65 | 4.70 | -17.49 | 264.73 | -12.43 | 148.31 | 0.3926 | 511.7 | -98.1 | |
| 11.74 | 21.16 | 6.28 | 11.33 | -16.52 | 264.61 | -12.56 | 146.64 | 0.3807 | -1037.8 | -823.6 | |
| 1.97 | 4.28 | 1.06 | 2.30 | -17.08 | 264.41 | -12.75 | 147.08 | 0.3900 | -803.8 | -694.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -18.85 | 263.28 | -13.88 | 147.39 | 0.4231 | 565.0 | 388.3 | |
| 0.00 | 3.60 | 0.00 | 1.94 | -16.40 | 263.32 | -13.85 | 143.87 | 0.3912 | -995.0 | -769.1 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -16.19 | 263.11 | -14.06 | 143.12 | 0.3904 | -904.0 | -776.1 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -17.85 | 262.47 | -14.70 | 144.48 | 0.4175 | -723.0 | -519.3 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -17.07 | 262.08 | -15.08 | 142.60 | 0.4114 | -728.0 | -571.0 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -12.16 | 262.40 | -14.77 | 134.30 | 0.3498 | -671.0 | -512.9 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -18.59 | 261.33 | -15.83 | 143.56 | 0.4372 | -893.0 | -690.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -16.17 | 261.10 | -16.07 | 139.43 | 0.4105 | -590.0 | -500.2 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -12.32 | 261.10 | -16.07 | 132.27 | 0.3671 | -684.0 | -554.1 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -20.51 | 260.25 | -16.92 | 144.44 | 0.4706 | -663.0 | -566.8 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -14.85 | 260.18 | -16.98 | 135.59 | 0.4052 | -699.0 | -564.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
