SDO HMI 2011-11-22 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.17 | 113.95 | 19.21 | 72.57 | 17.73 | 312.81 | 36.19 | 296.34 | 0.6296 | -207.0 | -40.6 | |
|
previous
or next observation for the same group /

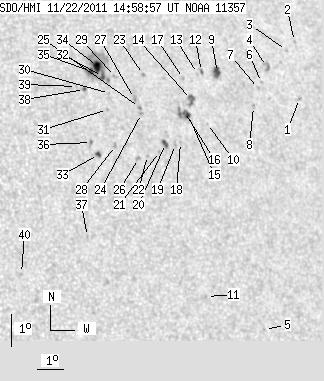

back to the solar disc SDO HMI 2011-11-22 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.89 | 17.54 | 318.80 | 42.19 | 293.37 | 0.6999 | -611.0 | -535.7 | |
| 0.00 | 0.43 | 0.00 | 0.30 | 19.30 | 319.13 | 42.51 | 295.65 | 0.7098 | -524.0 | -457.4 | |
| 0.00 | 0.51 | 0.00 | 0.36 | 19.03 | 318.70 | 42.08 | 295.45 | 0.7040 | -458.0 | -425.7 | |
| 0.00 | 4.03 | 0.00 | 2.75 | 18.55 | 317.72 | 41.10 | 295.20 | 0.6911 | -668.0 | -651.1 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 10.59 | 315.88 | 39.26 | 284.18 | 0.6440 | -614.0 | -470.3 | |
| 0.00 | 0.86 | 0.00 | 0.58 | 18.07 | 317.37 | 40.75 | 294.66 | 0.6853 | -527.0 | -449.9 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 17.88 | 317.20 | 40.58 | 294.48 | 0.6826 | -496.0 | -469.5 | |
| 0.00 | 1.54 | 0.00 | 1.03 | 17.34 | 316.84 | 40.23 | 293.85 | 0.6764 | -481.0 | -517.7 | |
| 5.48 | 6.51 | 3.63 | 4.31 | 18.41 | 315.67 | 39.06 | 295.89 | 0.6668 | -721.0 | -541.2 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 16.86 | 314.88 | 38.26 | 293.99 | 0.6510 | 513.0 | 331.0 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 11.62 | 313.80 | 37.19 | 286.40 | 0.6194 | -718.0 | -615.5 | |
| 0.00 | 1.71 | 0.00 | 1.13 | 18.46 | 315.04 | 38.43 | 296.24 | 0.6596 | -684.0 | -593.7 | |
| 0.00 | 1.11 | 0.00 | 0.73 | 18.40 | 314.87 | 38.25 | 296.24 | 0.6573 | -564.0 | -422.8 | |
| 4.80 | 6.77 | 3.11 | 4.39 | 17.60 | 314.43 | 37.81 | 295.29 | 0.6486 | -631.3 | -595.5 | |
| 2.14 | 9.17 | 1.38 | 5.91 | 17.12 | 314.19 | 37.57 | 294.68 | 0.6437 | -785.1 | -824.2 | |
| 0.43 | -15.00 | 0.28 | -15.00 | 17.24 | 314.06 | 37.45 | 294.93 | 0.6427 | -765.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 18.26 | 314.28 | 37.66 | 296.32 | 0.6496 | -876.0 | -699.6 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 16.30 | 313.69 | 37.07 | 293.69 | 0.6342 | -446.0 | -453.4 | |
| 0.00 | 2.06 | 0.00 | 1.31 | 16.24 | 313.48 | 36.87 | 293.70 | 0.6314 | -770.0 | -502.8 | |
| 3.26 | 3.86 | 2.06 | 2.44 | 16.28 | 313.11 | 36.49 | 293.93 | 0.6269 | -688.6 | -669.6 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 16.04 | 312.83 | 36.21 | 293.70 | 0.6223 | -797.0 | -680.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 15.93 | 312.34 | 35.73 | 293.76 | 0.6158 | -612.0 | -521.6 | |
| 0.00 | 1.54 | 0.00 | 0.98 | 18.41 | 312.75 | 36.13 | 297.32 | 0.6320 | 690.0 | 404.6 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 17.21 | 312.39 | 35.78 | 295.71 | 0.6221 | -715.0 | -623.6 | |
| 0.00 | 1.37 | 0.00 | 0.87 | 17.40 | 312.36 | 35.74 | 296.01 | 0.6225 | -668.0 | -525.9 | |
| 0.00 | 2.06 | 0.00 | 1.28 | 15.84 | 311.99 | 35.37 | 293.80 | 0.6109 | -976.0 | -741.0 | |
| 0.00 | 2.74 | 0.00 | 1.73 | 17.68 | 312.23 | 35.61 | 296.50 | 0.6222 | 692.0 | 476.1 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 16.25 | 311.20 | 34.59 | 294.84 | 0.6028 | -822.0 | -624.3 | |
| 0.00 | 1.97 | 0.00 | 1.24 | 18.37 | 311.66 | 35.05 | 297.85 | 0.6187 | 432.0 | 411.0 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 17.85 | 311.32 | 34.70 | 297.26 | 0.6118 | -722.0 | -526.1 | |
| 0.00 | 0.51 | 0.00 | 0.32 | 17.36 | 311.13 | 34.52 | 296.61 | 0.6072 | -579.0 | -571.5 | |
| 2.40 | 45.15 | 1.50 | 28.24 | 18.38 | 311.17 | 34.55 | 298.15 | 0.6127 | 713.2 | 462.3 | |
| 2.06 | 2.48 | 1.26 | 1.53 | 15.99 | 310.52 | 33.90 | 294.79 | 0.5928 | 751.0 | 594.8 | |
| 5.83 | -32.00 | 3.64 | -32.00 | 18.69 | 311.05 | 34.44 | 298.69 | 0.6129 | 1027.1 | 999999 | |
| 2.48 | -32.00 | 1.55 | -32.00 | 18.54 | 310.79 | 34.17 | 298.62 | 0.6089 | 1074.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 16.36 | 310.33 | 33.71 | 295.49 | 0.5922 | 751.0 | 590.9 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 13.51 | 309.68 | 33.06 | 291.15 | 0.5710 | 680.0 | 522.9 | |
| 1.29 | 1.54 | 0.80 | 0.95 | 17.99 | 310.41 | 33.79 | 298.00 | 0.6013 | 712.7 | 662.0 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 18.09 | 310.13 | 33.51 | 298.32 | 0.5984 | -341.0 | -279.2 | |
| 0.00 | 0.51 | 0.00 | 0.30 | 12.44 | 307.16 | 30.54 | 290.56 | 0.5321 | 592.0 | 558.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
