SDO HMI 2011-11-22 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.06 | 161.63 | 20.71 | 85.89 | -16.66 | 266.12 | -9.94 | 152.79 | 0.3620 | 68.0 | -93.7 | |
|
previous
or next observation for the same group /

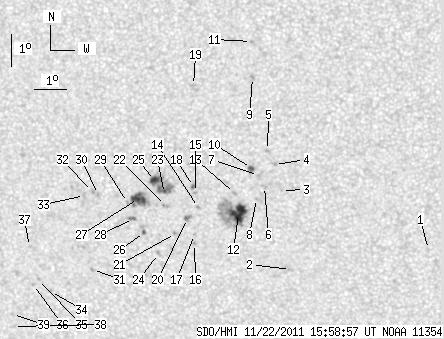

back to the solar disc SDO HMI 2011-11-22 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | -18.00 | 273.62 | -2.45 | 173.23 | 0.3458 | 90.0 | 109.5 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -18.65 | 269.28 | -6.78 | 162.38 | 0.3712 | 596.0 | 582.4 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -16.17 | 269.10 | -6.97 | 159.48 | 0.3339 | 797.0 | 644.0 | |
| 0.00 | 2.06 | 0.00 | 1.08 | -15.36 | 268.91 | -7.16 | 158.04 | 0.3227 | 715.0 | 470.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -14.93 | 268.71 | -7.36 | 156.94 | 0.3174 | -795.0 | -694.8 | |
| 0.00 | 2.23 | 0.00 | 1.17 | -16.05 | 268.57 | -7.49 | 157.95 | 0.3352 | 857.0 | 706.4 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -15.71 | 268.40 | -7.67 | 157.08 | 0.3311 | 792.0 | 634.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -16.42 | 268.31 | -7.76 | 157.69 | 0.3425 | 637.0 | 559.9 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -12.69 | 268.32 | -7.75 | 152.54 | 0.2864 | 1020.0 | 818.3 | |
| 2.66 | 3.60 | 1.39 | 1.89 | -15.49 | 268.19 | -7.87 | 156.25 | 0.3292 | 991.0 | 725.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -11.59 | 268.32 | -7.74 | 150.61 | 0.2702 | 994.0 | 828.4 | |
| 17.56 | 52.08 | 9.29 | 27.58 | -16.89 | 267.73 | -8.34 | 156.77 | 0.3533 | 1140.2 | 408.7 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -16.27 | 267.63 | -8.43 | 155.77 | 0.3447 | 959.0 | 775.6 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -16.71 | 266.49 | -9.58 | 153.53 | 0.3592 | 682.0 | 453.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -16.25 | 266.42 | -9.65 | 152.74 | 0.3530 | 614.0 | 478.0 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -17.84 | 266.30 | -9.77 | 154.52 | 0.3769 | 825.0 | 672.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -17.56 | 266.32 | -9.75 | 154.21 | 0.3727 | 805.0 | 482.7 | |
| 0.43 | 1.88 | 0.23 | 1.00 | -16.06 | 266.36 | -9.70 | 152.36 | 0.3507 | 911.8 | 784.7 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -12.94 | 266.50 | -9.57 | 147.79 | 0.3053 | 773.0 | 490.6 | |
| 0.00 | 3.85 | 0.00 | 2.05 | -17.06 | 266.12 | -9.94 | 153.13 | 0.3669 | -1032.0 | -822.8 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -17.53 | 265.72 | -10.35 | 152.82 | 0.3767 | 696.0 | 495.1 | |
| 0.00 | 2.48 | 0.00 | 1.32 | -16.66 | 265.45 | -10.61 | 151.06 | 0.3663 | -830.0 | -689.4 | |
| 0.34 | 28.10 | 0.18 | 14.89 | -16.28 | 265.44 | -10.62 | 150.51 | 0.3611 | -824.5 | -697.2 | |
| 0.00 | 2.40 | 0.00 | 1.29 | -18.17 | 265.14 | -10.92 | 152.37 | 0.3899 | 736.0 | 582.0 | |
| 4.71 | -23.00 | 2.50 | -23.00 | -15.88 | 265.15 | -10.92 | 149.26 | 0.3579 | -1055.3 | 999999 | |
| 1.46 | 5.23 | 0.78 | 2.80 | -17.51 | 264.74 | -11.33 | 150.65 | 0.3838 | 642.2 | -208.7 | |
| 11.56 | 19.10 | 6.16 | 10.18 | -16.45 | 264.62 | -11.45 | 148.89 | 0.3701 | -1127.9 | -841.3 | |
| 0.34 | 3.43 | 0.18 | 1.83 | -17.07 | 264.42 | -11.65 | 149.36 | 0.3804 | -918.5 | -755.7 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -16.57 | 264.26 | -11.80 | 148.31 | 0.3749 | -731.0 | -549.7 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -16.33 | 263.36 | -12.71 | 146.05 | 0.3796 | -784.0 | -725.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -18.69 | 263.00 | -13.07 | 148.70 | 0.4140 | -736.0 | -630.7 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -16.24 | 263.18 | -12.89 | 145.53 | 0.3800 | -893.0 | -828.7 | |
| 0.00 | 2.31 | 0.00 | 1.24 | -16.37 | 262.92 | -13.15 | 145.19 | 0.3841 | -686.0 | -699.0 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -19.40 | 261.58 | -14.48 | 147.03 | 0.4353 | -812.0 | -609.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -19.02 | 261.23 | -14.84 | 145.89 | 0.4335 | -682.0 | -514.9 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -19.18 | 261.05 | -15.01 | 145.80 | 0.4371 | -770.0 | -574.1 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -17.98 | 261.03 | -15.03 | 144.06 | 0.4222 | -595.0 | -522.1 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -20.53 | 260.26 | -15.80 | 146.25 | 0.4610 | -754.0 | -580.4 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -20.15 | 260.27 | -15.79 | 145.77 | 0.4561 | -719.0 | -512.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
