SDO HMI 2011-11-22 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.29 | 152.05 | 23.47 | 80.50 | -16.35 | 266.19 | -9.33 | 153.75 | 0.3530 | 45.6 | -30.6 | |
|
previous
or next observation for the same group /

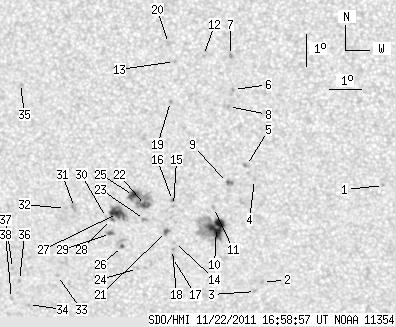

back to the solar disc SDO HMI 2011-11-22 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.58 | -15.57 | 272.91 | -2.60 | 171.75 | 0.3061 | 844.0 | 635.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.62 | 269.08 | -6.44 | 163.19 | 0.3690 | 767.0 | 662.4 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -18.90 | 268.85 | -6.67 | 162.87 | 0.3745 | 771.0 | 614.5 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -15.39 | 268.94 | -6.57 | 159.71 | 0.3196 | 795.0 | 568.7 | |
| 0.00 | 1.88 | 0.00 | 0.98 | -14.96 | 268.71 | -6.81 | 158.54 | 0.3143 | -929.0 | -745.6 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -12.62 | 268.38 | -7.13 | 154.31 | 0.2808 | 878.0 | 730.1 | |
| 0.00 | 2.31 | 0.00 | 1.19 | -11.59 | 268.32 | -7.20 | 152.36 | 0.2658 | 1059.0 | 697.0 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.14 | 268.21 | -7.30 | 154.60 | 0.2899 | 870.0 | 620.4 | |
| 1.37 | 3.00 | 0.72 | 1.57 | -15.49 | 268.10 | -7.41 | 157.49 | 0.3262 | 934.1 | 929.7 | |
| 16.45 | 47.54 | 8.69 | 25.14 | -16.89 | 267.71 | -7.81 | 158.09 | 0.3499 | 1149.1 | 448.1 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -16.27 | 267.64 | -7.88 | 157.20 | 0.3409 | 955.0 | 714.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -11.59 | 267.49 | -8.02 | 149.75 | 0.2726 | 685.0 | 584.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -11.78 | 266.60 | -8.91 | 147.44 | 0.2831 | 923.0 | 666.9 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -17.37 | 266.37 | -9.15 | 155.38 | 0.3657 | -628.0 | -488.0 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -16.21 | 266.39 | -9.12 | 153.99 | 0.3486 | 684.0 | 482.6 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -16.06 | 266.37 | -9.14 | 153.72 | 0.3465 | 1006.0 | 738.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -17.84 | 266.28 | -9.23 | 155.73 | 0.3732 | 830.0 | 681.8 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -17.59 | 266.30 | -9.22 | 155.47 | 0.3694 | 802.0 | 618.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -13.00 | 266.44 | -9.08 | 149.22 | 0.3018 | 853.0 | 795.6 | |
| 0.00 | 2.48 | 0.00 | 1.28 | -11.23 | 266.44 | -9.08 | 145.85 | 0.2770 | 794.0 | 293.7 | |
| 1.71 | 2.83 | 0.91 | 1.50 | -17.03 | 266.14 | -9.38 | 154.41 | 0.3623 | -978.6 | -833.2 | |
| 4.97 | 28.44 | 2.63 | 15.05 | -16.22 | 265.52 | -10.00 | 151.88 | 0.3552 | -888.7 | -646.5 | |
| 0.00 | 2.23 | 0.00 | 1.18 | -16.66 | 265.46 | -10.05 | 152.35 | 0.3618 | -878.0 | -641.6 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -18.20 | 265.16 | -10.36 | 153.62 | 0.3861 | 704.0 | 557.3 | |
| 5.65 | -22.00 | 2.99 | -22.00 | -15.91 | 265.16 | -10.35 | 150.60 | 0.3536 | -998.2 | 999999 | |
| 1.03 | 5.48 | 0.55 | 2.93 | -17.51 | 264.72 | -10.79 | 151.81 | 0.3796 | 589.2 | -121.4 | |
| 10.45 | 21.42 | 5.56 | 11.39 | -16.47 | 264.63 | -10.89 | 150.18 | 0.3659 | -1136.2 | -808.8 | |
| 1.03 | -27.00 | 0.55 | -27.00 | -16.66 | 264.43 | -11.09 | 150.00 | 0.3701 | -778.7 | 999999 | |
| 1.63 | 3.26 | 0.87 | 1.74 | -17.10 | 264.37 | -11.14 | 150.49 | 0.3767 | -838.2 | -596.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -16.60 | 264.27 | -11.24 | 149.57 | 0.3705 | -631.0 | -491.6 | |
| 0.00 | 4.11 | 0.00 | 2.20 | -16.30 | 263.28 | -12.23 | 146.98 | 0.3748 | -825.0 | -811.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -16.33 | 263.00 | -12.52 | 146.43 | 0.3778 | -802.0 | -609.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -18.44 | 262.59 | -12.92 | 148.64 | 0.4094 | -793.0 | -563.4 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -19.36 | 261.58 | -13.93 | 147.97 | 0.4301 | -670.0 | -595.7 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -12.48 | 261.82 | -13.70 | 137.11 | 0.3412 | -631.0 | -447.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -18.60 | 261.36 | -14.16 | 146.54 | 0.4221 | -810.0 | -645.2 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -18.23 | 261.17 | -14.35 | 145.65 | 0.4190 | -768.0 | -627.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -19.18 | 261.05 | -14.46 | 146.76 | 0.4322 | -756.0 | -593.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
