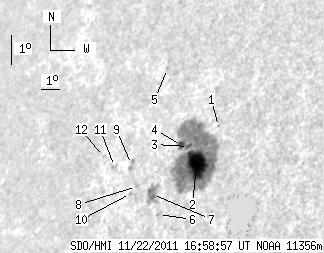

SDO HMI 2011-11-22 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.37 | 244.47 | 31.99 | 205.36 | 17.43 | 223.00 | -52.51 | 69.75 | 0.8091 | -604.7 | -151.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.49 | 18.61 | 224.02 | -51.50 | 68.07 | 0.8017 | -649.0 | -577.7 | |
| 32.38 | 217.41 | 26.90 | 181.64 | 17.42 | 223.40 | -52.11 | 69.68 | 0.8053 | -944.0 | -237.6 | |
| 2.31 | -2.00 | 1.95 | -2.00 | 17.96 | 222.76 | -52.75 | 69.16 | 0.8125 | -552.6 | 999999 | |
| 3.68 | -2.00 | 3.14 | -2.00 | 17.98 | 222.39 | -53.12 | 69.22 | 0.8160 | -442.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.85 | 20.33 | 220.50 | -55.01 | 66.84 | 0.8377 | 479.0 | 436.5 | |
| 0.00 | 1.28 | 0.00 | 1.09 | 15.85 | 222.07 | -53.44 | 71.87 | 0.8154 | 550.0 | 525.9 | |
| 0.00 | 15.85 | 0.00 | 13.69 | 16.45 | 221.52 | -54.00 | 71.25 | 0.8216 | 351.0 | 368.5 | |
| 0.00 | 1.28 | 0.00 | 1.14 | 16.67 | 220.57 | -54.94 | 71.16 | 0.8308 | 228.0 | 212.9 | |
| 0.00 | 3.34 | 0.00 | 3.01 | 17.33 | 220.00 | -55.51 | 70.48 | 0.8370 | 691.0 | 591.3 | |
| 0.00 | 1.11 | 0.00 | 0.99 | 16.44 | 220.34 | -55.18 | 71.47 | 0.8326 | 642.0 | 571.0 | |
| 0.00 | 1.80 | 0.00 | 1.66 | 17.24 | 219.09 | -56.42 | 70.75 | 0.8450 | 592.0 | 525.5 | |
| 0.00 | 0.86 | 0.00 | 0.80 | 17.53 | 218.33 | -57.19 | 70.54 | 0.8521 | 188.0 | 143.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
