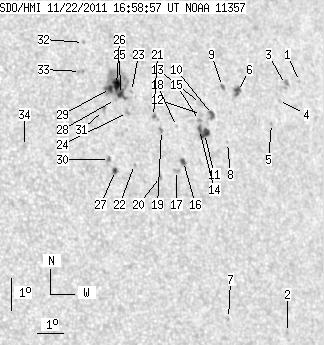

SDO HMI 2011-11-22 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.26 | 118.20 | 22.18 | 76.13 | 17.86 | 312.53 | 37.02 | 296.12 | 0.6402 | -198.3 | 1.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.72 | 18.66 | 318.46 | 42.94 | 294.62 | 0.7123 | -623.0 | -531.7 | |
| 0.00 | 1.11 | 0.00 | 0.73 | 11.06 | 316.15 | 40.63 | 284.56 | 0.6626 | -616.0 | -456.1 | |
| 0.00 | 3.85 | 0.00 | 2.68 | 18.59 | 317.84 | 42.32 | 294.75 | 0.7051 | -459.0 | -518.5 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 18.10 | 317.39 | 41.88 | 294.26 | 0.6984 | -293.0 | -359.8 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 17.40 | 316.90 | 41.39 | 293.48 | 0.6902 | -768.0 | -572.7 | |
| 3.85 | 5.40 | 2.60 | 3.64 | 18.41 | 315.78 | 40.27 | 295.35 | 0.6810 | -693.5 | -645.4 | |
| 0.00 | 1.37 | 0.00 | 0.88 | 11.53 | 313.91 | 38.39 | 285.89 | 0.6350 | -684.0 | -525.9 | |
| 0.00 | 0.77 | 0.00 | 0.51 | 16.86 | 314.96 | 39.45 | 293.49 | 0.6653 | 376.0 | 328.4 | |
| 1.63 | 2.14 | 1.09 | 1.43 | 18.58 | 315.22 | 39.70 | 295.84 | 0.6751 | -613.7 | -584.2 | |
| 3.17 | 5.48 | 2.09 | 3.62 | 17.73 | 314.58 | 39.07 | 294.90 | 0.6642 | -646.2 | -550.5 | |
| 6.00 | 9.59 | 3.93 | 6.28 | 17.15 | 314.12 | 38.60 | 294.27 | 0.6563 | -843.0 | -883.5 | |
| 0.00 | 1.46 | 0.00 | 0.96 | 17.74 | 314.14 | 38.63 | 295.11 | 0.6590 | -752.0 | -689.3 | |
| 0.00 | 3.77 | 0.00 | 2.48 | 18.08 | 314.19 | 38.68 | 295.58 | 0.6610 | -777.0 | -604.5 | |
| 2.31 | -11.00 | 1.51 | -11.00 | 17.28 | 313.95 | 38.43 | 294.53 | 0.6548 | -873.8 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.95 | 17.55 | 314.02 | 38.50 | 294.90 | 0.6568 | -886.0 | -766.8 | |
| 2.83 | 3.17 | 1.82 | 2.04 | 16.31 | 313.09 | 37.58 | 293.49 | 0.6405 | -751.7 | -585.8 | |
| 0.00 | 2.57 | 0.00 | 1.64 | 16.04 | 312.76 | 37.24 | 293.24 | 0.6353 | -829.0 | -637.9 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 17.39 | 313.07 | 37.55 | 295.10 | 0.6446 | 277.0 | 274.5 | |
| 0.00 | 2.06 | 0.00 | 1.32 | 17.28 | 312.46 | 36.94 | 295.23 | 0.6367 | -695.0 | -627.7 | |
| 0.00 | 2.40 | 0.00 | 1.52 | 15.87 | 312.10 | 36.59 | 293.27 | 0.6264 | -861.0 | -650.2 | |
| 0.34 | 3.08 | 0.22 | 1.98 | 17.71 | 312.25 | 36.73 | 295.98 | 0.6361 | 695.0 | 474.8 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 16.26 | 311.19 | 35.68 | 294.30 | 0.6166 | -667.0 | -633.9 | |
| 0.00 | 1.37 | 0.00 | 0.87 | 18.50 | 311.59 | 36.07 | 297.49 | 0.6318 | 493.0 | 374.1 | |
| 0.00 | 2.83 | 0.00 | 1.79 | 17.86 | 311.28 | 35.76 | 296.69 | 0.6249 | -739.0 | -416.0 | |
| 2.57 | 46.34 | 1.63 | 29.39 | 18.41 | 311.14 | 35.63 | 297.60 | 0.6260 | 718.7 | 475.4 | |
| 5.91 | -25.00 | 3.75 | -25.00 | 18.73 | 311.06 | 35.55 | 298.11 | 0.6266 | 1030.8 | 999999 | |
| 1.80 | 2.74 | 1.12 | 1.70 | 16.09 | 310.44 | 34.92 | 294.42 | 0.6063 | 775.0 | 661.2 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 18.26 | 310.91 | 35.40 | 297.50 | 0.6225 | 104.0 | 120.9 | |
| 2.48 | -25.00 | 1.57 | -25.00 | 18.61 | 310.80 | 35.29 | 298.08 | 0.6228 | 1084.4 | 999999 | |
| 1.37 | 1.88 | 0.85 | 1.17 | 16.43 | 310.28 | 34.77 | 295.03 | 0.6059 | 676.4 | 615.2 | |
| 0.00 | 2.14 | 0.00 | 1.34 | 17.93 | 310.38 | 34.86 | 297.30 | 0.6143 | 701.0 | 643.4 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 20.05 | 310.12 | 34.61 | 300.63 | 0.6223 | -458.0 | -420.5 | |
| 0.00 | 3.00 | 0.00 | 1.88 | 19.15 | 309.79 | 34.27 | 299.49 | 0.6134 | -639.0 | -549.4 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 16.88 | 307.22 | 31.71 | 297.52 | 0.5693 | 630.0 | 367.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
