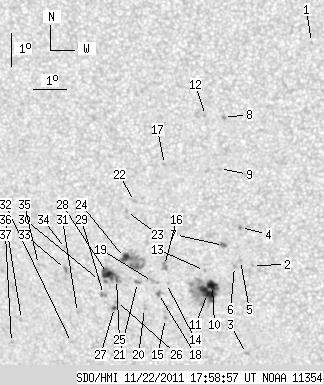

SDO HMI 2011-11-22 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.18 | 152.05 | 21.25 | 80.33 | -16.36 | 266.25 | -8.71 | 155.28 | 0.3487 | 96.0 | -101.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.56 | -9.31 | 271.01 | -3.95 | 160.84 | 0.2081 | -758.0 | -483.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.14 | 269.08 | -5.88 | 162.42 | 0.3275 | 798.0 | 598.6 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -18.90 | 268.80 | -6.16 | 164.09 | 0.3722 | 849.0 | 619.7 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -14.96 | 268.74 | -6.22 | 160.23 | 0.3109 | -948.0 | -791.5 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -15.98 | 268.71 | -6.25 | 161.25 | 0.3270 | 847.0 | 545.8 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -16.17 | 268.52 | -6.44 | 160.91 | 0.3310 | 840.0 | 625.6 | |
| 0.00 | 2.40 | 0.00 | 1.25 | -15.52 | 268.20 | -6.76 | 159.32 | 0.3227 | 1228.0 | 980.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -11.59 | 268.31 | -6.65 | 154.17 | 0.2616 | 1144.0 | 811.9 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.15 | 268.15 | -6.81 | 156.11 | 0.2865 | 832.0 | 638.1 | |
| 7.97 | 51.65 | 4.20 | 27.28 | -16.77 | 267.81 | -7.15 | 159.65 | 0.3441 | 1190.8 | 391.2 | |
| 13.28 | -10.00 | 7.01 | -10.00 | -17.02 | 267.65 | -7.31 | 159.49 | 0.3489 | 1030.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -11.53 | 267.77 | -7.20 | 152.26 | 0.2649 | 780.0 | 582.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -16.30 | 267.58 | -7.38 | 158.53 | 0.3383 | 900.0 | 691.6 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -16.71 | 266.38 | -8.58 | 155.95 | 0.3522 | 318.0 | 407.2 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -17.81 | 266.30 | -8.66 | 157.02 | 0.3690 | 884.0 | 716.6 | |
| 0.00 | 5.23 | 0.00 | 2.75 | -16.15 | 266.34 | -8.62 | 155.16 | 0.3441 | 562.0 | 517.6 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -13.03 | 266.47 | -8.49 | 150.91 | 0.2974 | 870.0 | 697.6 | |
| 1.54 | 3.17 | 0.82 | 1.68 | -17.03 | 266.12 | -8.85 | 155.68 | 0.3586 | -918.6 | -709.7 | |
| 0.00 | 4.97 | 0.00 | 2.63 | -16.65 | 265.95 | -9.02 | 154.81 | 0.3542 | -903.0 | -680.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -17.50 | 265.65 | -9.31 | 155.15 | 0.3687 | 734.0 | 601.9 | |
| 0.00 | 2.40 | 0.00 | 1.27 | -16.69 | 265.48 | -9.49 | 153.72 | 0.3581 | -944.0 | -672.9 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -14.17 | 265.50 | -9.46 | 150.15 | 0.3217 | 775.0 | 619.5 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -14.48 | 265.24 | -9.72 | 149.97 | 0.3283 | 890.0 | 688.6 | |
| 4.28 | 28.27 | 2.26 | 14.93 | -15.91 | 265.11 | -9.85 | 151.78 | 0.3496 | -1054.3 | -688.4 | |
| 1.46 | 19.79 | 0.77 | 10.51 | -16.60 | 264.82 | -10.14 | 152.06 | 0.3617 | -990.5 | -753.1 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -17.29 | 264.78 | -10.18 | 152.88 | 0.3718 | -661.0 | -492.3 | |
| 1.54 | 1.71 | 0.82 | 0.91 | -17.47 | 264.71 | -10.25 | 152.96 | 0.3750 | 637.2 | 496.0 | |
| 10.11 | -25.00 | 5.37 | -25.00 | -16.41 | 264.55 | -10.41 | 151.17 | 0.3612 | -1100.5 | 999999 | |
| 0.00 | 2.83 | 0.00 | 1.51 | -17.07 | 264.39 | -10.58 | 151.70 | 0.3717 | -930.0 | -757.7 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -16.63 | 264.29 | -10.68 | 150.88 | 0.3663 | -738.0 | -602.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -17.64 | 263.53 | -11.43 | 150.60 | 0.3864 | -764.0 | -631.8 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -18.59 | 263.28 | -11.69 | 151.30 | 0.4015 | -795.0 | -615.2 | |
| 0.00 | 2.57 | 0.00 | 1.37 | -16.30 | 263.24 | -11.73 | 148.06 | 0.3704 | -1129.0 | -943.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -15.64 | 263.28 | -11.69 | 147.15 | 0.3612 | -701.0 | -601.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -16.15 | 262.39 | -12.57 | 146.04 | 0.3758 | -778.0 | -580.9 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -17.87 | 261.73 | -13.23 | 147.26 | 0.4045 | -413.0 | -488.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -18.60 | 261.35 | -13.61 | 147.55 | 0.4174 | -805.0 | -541.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
