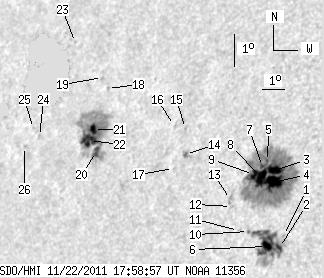

SDO HMI 2011-11-22 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.83 | 422.46 | 51.64 | 293.46 | 14.66 | 231.83 | -43.13 | 70.89 | 0.7007 | -381.8 | -209.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.84 | 12.94 | 235.05 | -39.91 | 72.43 | 0.6582 | -217.0 | -204.9 | |
| 2.40 | 65.36 | 1.57 | 43.17 | 12.58 | 234.96 | -40.00 | 73.00 | 0.6584 | 536.4 | -340.8 | |
| 8.82 | 236.59 | 5.90 | 158.35 | 14.90 | 234.28 | -40.69 | 69.81 | 0.6736 | -1088.1 | -442.0 | |
| 14.99 | -3.00 | 10.00 | -3.00 | 14.54 | 234.32 | -40.64 | 70.33 | 0.6719 | -1290.7 | 999999 | |
| 0.94 | -3.00 | 0.63 | -3.00 | 15.17 | 233.93 | -41.03 | 69.55 | 0.6786 | -450.8 | 999999 | |
| 7.02 | -2.00 | 4.65 | -2.00 | 12.60 | 234.44 | -40.52 | 73.13 | 0.6650 | -916.7 | 999999 | |
| 2.06 | -3.00 | 1.38 | -3.00 | 15.01 | 233.76 | -41.20 | 69.83 | 0.6801 | -686.0 | 999999 | |
| 10.54 | -3.00 | 7.09 | -3.00 | 14.68 | 233.80 | -41.16 | 70.30 | 0.6787 | -909.5 | 999999 | |
| 3.17 | -3.00 | 2.14 | -3.00 | 14.76 | 233.45 | -41.51 | 70.29 | 0.6831 | -547.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.75 | 13.03 | 233.63 | -41.33 | 72.72 | 0.6762 | -674.0 | -558.1 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 13.06 | 233.22 | -41.75 | 72.81 | 0.6813 | -485.0 | -418.9 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 13.77 | 232.77 | -42.19 | 71.91 | 0.6885 | -704.0 | -515.8 | |
| 0.00 | 3.08 | 0.00 | 2.10 | 13.98 | 232.68 | -42.28 | 71.64 | 0.6902 | -525.0 | -440.3 | |
| 2.14 | 4.20 | 1.52 | 2.98 | 15.30 | 230.46 | -44.51 | 70.46 | 0.7198 | -643.4 | -611.5 | |
| 0.00 | 1.28 | 0.00 | 0.92 | 16.09 | 230.23 | -44.73 | 69.46 | 0.7244 | -588.0 | -471.3 | |
| 0.00 | 1.54 | 0.00 | 1.11 | 16.17 | 229.73 | -45.23 | 69.50 | 0.7303 | -343.0 | -324.3 | |
| 0.00 | 0.60 | 0.00 | 0.43 | 14.87 | 230.05 | -44.91 | 71.17 | 0.7233 | -584.0 | -473.9 | |
| 0.00 | 1.20 | 0.00 | 0.93 | 17.23 | 226.34 | -48.62 | 69.07 | 0.7696 | -649.0 | -555.9 | |
| 0.00 | 1.28 | 0.00 | 1.00 | 17.56 | 225.99 | -48.97 | 68.74 | 0.7741 | -505.0 | -453.8 | |
| 5.65 | 98.25 | 4.32 | 75.72 | 15.30 | 226.47 | -48.49 | 71.51 | 0.7640 | 686.4 | 428.9 | |
| 4.28 | -20.00 | 3.31 | -20.00 | 15.96 | 226.12 | -48.84 | 70.74 | 0.7691 | 948.5 | 999999 | |
| 11.82 | -20.00 | 9.13 | -20.00 | 15.62 | 226.04 | -48.92 | 71.19 | 0.7692 | 741.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.83 | 18.60 | 224.27 | -50.69 | 67.89 | 0.7938 | -399.0 | -418.9 | |
| 0.00 | 1.63 | 0.00 | 1.32 | 15.68 | 223.61 | -51.35 | 71.65 | 0.7945 | -207.0 | -223.0 | |
| 0.00 | 1.03 | 0.00 | 0.84 | 15.92 | 223.23 | -51.74 | 71.44 | 0.7988 | -185.0 | -141.5 | |
| 0.00 | 1.03 | 0.00 | 0.84 | 15.36 | 222.97 | -51.99 | 72.18 | 0.8003 | 710.0 | 621.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
