SDO HMI 2011-11-22 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.84 | 242.93 | 30.34 | 201.53 | 17.43 | 223.06 | -51.90 | 69.60 | 0.8032 | -620.6 | -171.7 | |
|
previous
or next observation for the same group /

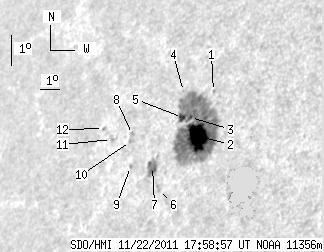

back to the solar disc SDO HMI 2011-11-22 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.85 | 18.83 | 223.63 | -51.34 | 67.76 | 0.8007 | -530.0 | -421.4 | |
| 31.01 | 217.40 | 25.45 | 179.49 | 17.43 | 223.45 | -51.51 | 69.52 | 0.7994 | -988.5 | -252.6 | |
| 1.46 | -2.00 | 1.21 | -2.00 | 18.00 | 222.81 | -52.15 | 68.97 | 0.8068 | -530.4 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.36 | 18.79 | 222.11 | -52.86 | 68.18 | 0.8151 | -221.0 | -212.4 | |
| 4.37 | -2.00 | 3.68 | -2.00 | 17.99 | 222.41 | -52.56 | 69.08 | 0.8107 | -436.4 | 999999 | |
| 0.00 | 2.57 | 0.00 | 2.16 | 15.77 | 222.07 | -52.90 | 71.86 | 0.8099 | 623.0 | 494.8 | |
| 0.00 | 14.48 | 0.00 | 12.36 | 16.46 | 221.49 | -53.47 | 71.13 | 0.8167 | 323.0 | 382.7 | |
| 0.00 | 1.80 | 0.00 | 1.60 | 17.40 | 220.02 | -54.94 | 70.28 | 0.8319 | 666.0 | 552.0 | |
| 0.00 | 1.28 | 0.00 | 1.13 | 16.43 | 220.34 | -54.63 | 71.39 | 0.8275 | 692.0 | 599.7 | |
| 0.00 | 1.54 | 0.00 | 1.37 | 17.19 | 220.01 | -54.95 | 70.54 | 0.8317 | 662.0 | 542.3 | |
| 0.00 | 1.03 | 0.00 | 0.94 | 17.22 | 218.95 | -56.01 | 70.70 | 0.8413 | 578.0 | 498.2 | |
| 0.00 | 1.37 | 0.00 | 1.27 | 17.54 | 218.34 | -56.62 | 70.43 | 0.8471 | 198.0 | 116.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
