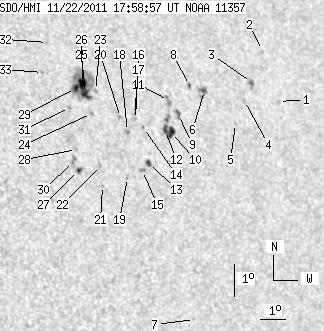

SDO HMI 2011-11-22 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.71 | 116.92 | 16.85 | 76.01 | 17.94 | 312.66 | 37.70 | 295.91 | 0.6486 | -166.6 | 0.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.22 | 18.05 | 318.92 | 43.95 | 293.43 | 0.7216 | -606.0 | -500.8 | |
| 0.00 | 0.60 | 0.00 | 0.43 | 19.64 | 318.74 | 43.78 | 295.61 | 0.7250 | -517.0 | -454.3 | |
| 2.23 | 4.03 | 1.57 | 2.83 | 18.66 | 317.95 | 42.98 | 294.60 | 0.7128 | -576.2 | -587.3 | |
| 0.00 | 1.11 | 0.00 | 0.78 | 18.11 | 317.48 | 42.52 | 294.04 | 0.7056 | -560.0 | -448.2 | |
| 0.00 | 0.51 | 0.00 | 0.35 | 17.42 | 316.89 | 41.93 | 293.30 | 0.6966 | -637.0 | -588.2 | |
| 2.14 | 6.17 | 1.46 | 4.20 | 18.46 | 315.90 | 40.94 | 295.13 | 0.6889 | -591.0 | -641.3 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 11.52 | 313.93 | 38.97 | 285.70 | 0.6425 | -665.0 | -565.1 | |
| 1.37 | 1.97 | 0.93 | 1.33 | 18.62 | 315.33 | 40.37 | 295.61 | 0.6830 | -604.0 | -620.9 | |
| 0.00 | 3.60 | 0.00 | 2.40 | 17.74 | 314.64 | 39.68 | 294.66 | 0.6715 | -714.0 | -601.1 | |
| 5.31 | 13.62 | 3.51 | 9.00 | 17.20 | 314.21 | 39.25 | 294.06 | 0.6643 | -805.9 | -854.1 | |
| 0.00 | 3.77 | 0.00 | 2.51 | 18.18 | 314.35 | 39.39 | 295.41 | 0.6698 | -810.0 | -705.6 | |
| 1.54 | -10.00 | 1.02 | -10.00 | 17.26 | 313.99 | 39.03 | 294.25 | 0.6619 | -1016.0 | 999999 | |
| 2.66 | 3.34 | 1.72 | 2.16 | 16.27 | 313.08 | 38.11 | 293.19 | 0.6469 | -694.9 | -691.4 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 17.37 | 313.14 | 38.18 | 294.79 | 0.6521 | 460.0 | 291.0 | |
| 0.00 | 2.48 | 0.00 | 1.60 | 16.06 | 312.79 | 37.83 | 293.00 | 0.6426 | -814.0 | -655.9 | |
| 0.00 | 1.37 | 0.00 | 0.89 | 17.62 | 312.89 | 37.93 | 295.27 | 0.6501 | 608.0 | 391.0 | |
| 0.00 | 1.28 | 0.00 | 0.84 | 17.78 | 312.89 | 37.93 | 295.50 | 0.6508 | 606.0 | 476.9 | |
| 0.00 | 1.97 | 0.00 | 1.27 | 17.26 | 312.49 | 37.52 | 294.93 | 0.6437 | -738.0 | -635.9 | |
| 0.00 | 1.63 | 0.00 | 1.04 | 15.86 | 312.17 | 37.20 | 292.97 | 0.6341 | -798.0 | -599.7 | |
| 0.00 | 1.71 | 0.00 | 1.11 | 17.70 | 312.32 | 37.35 | 295.65 | 0.6436 | 669.0 | 475.0 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 15.63 | 311.16 | 36.19 | 293.09 | 0.6205 | -753.0 | -602.7 | |
| 0.00 | 1.46 | 0.00 | 0.92 | 16.24 | 311.21 | 36.25 | 294.00 | 0.6237 | -857.0 | -601.4 | |
| 0.00 | 1.28 | 0.00 | 0.82 | 18.55 | 311.55 | 36.59 | 297.29 | 0.6382 | 397.0 | 352.5 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 17.84 | 311.22 | 36.26 | 296.41 | 0.6310 | -702.0 | -561.9 | |
| 2.06 | 48.31 | 1.31 | 30.86 | 18.46 | 311.14 | 36.18 | 297.38 | 0.6329 | 817.3 | 454.3 | |
| 4.97 | -25.00 | 3.17 | -25.00 | 18.77 | 311.10 | 36.14 | 297.86 | 0.6339 | 1044.3 | 999999 | |
| 1.46 | 3.43 | 0.91 | 2.14 | 16.11 | 310.34 | 35.38 | 294.22 | 0.6122 | 790.8 | 622.0 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 16.75 | 310.40 | 35.44 | 295.18 | 0.6158 | 574.0 | 480.7 | |
| 1.97 | -25.00 | 1.25 | -25.00 | 18.62 | 310.79 | 35.83 | 297.81 | 0.6295 | 1048.0 | 999999 | |
| 0.00 | 3.94 | 0.00 | 2.46 | 16.39 | 310.21 | 35.25 | 294.71 | 0.6118 | 862.0 | 588.3 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 18.04 | 310.42 | 35.46 | 297.14 | 0.6222 | 690.0 | 621.1 | |
| 0.00 | 1.28 | 0.00 | 0.82 | 20.07 | 310.08 | 35.11 | 300.35 | 0.6284 | -695.0 | -473.7 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 19.14 | 309.65 | 34.69 | 299.23 | 0.6184 | -662.0 | -603.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
